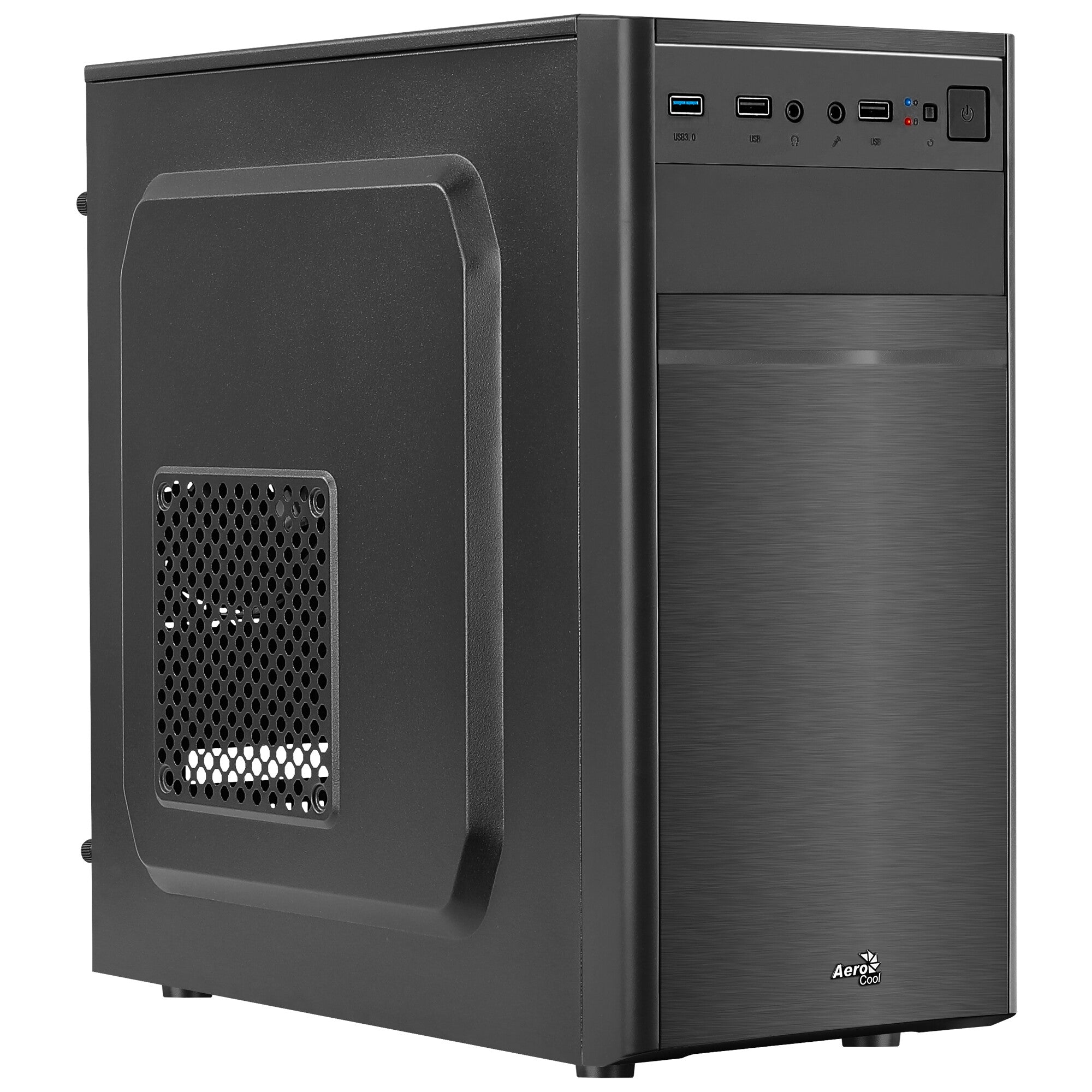

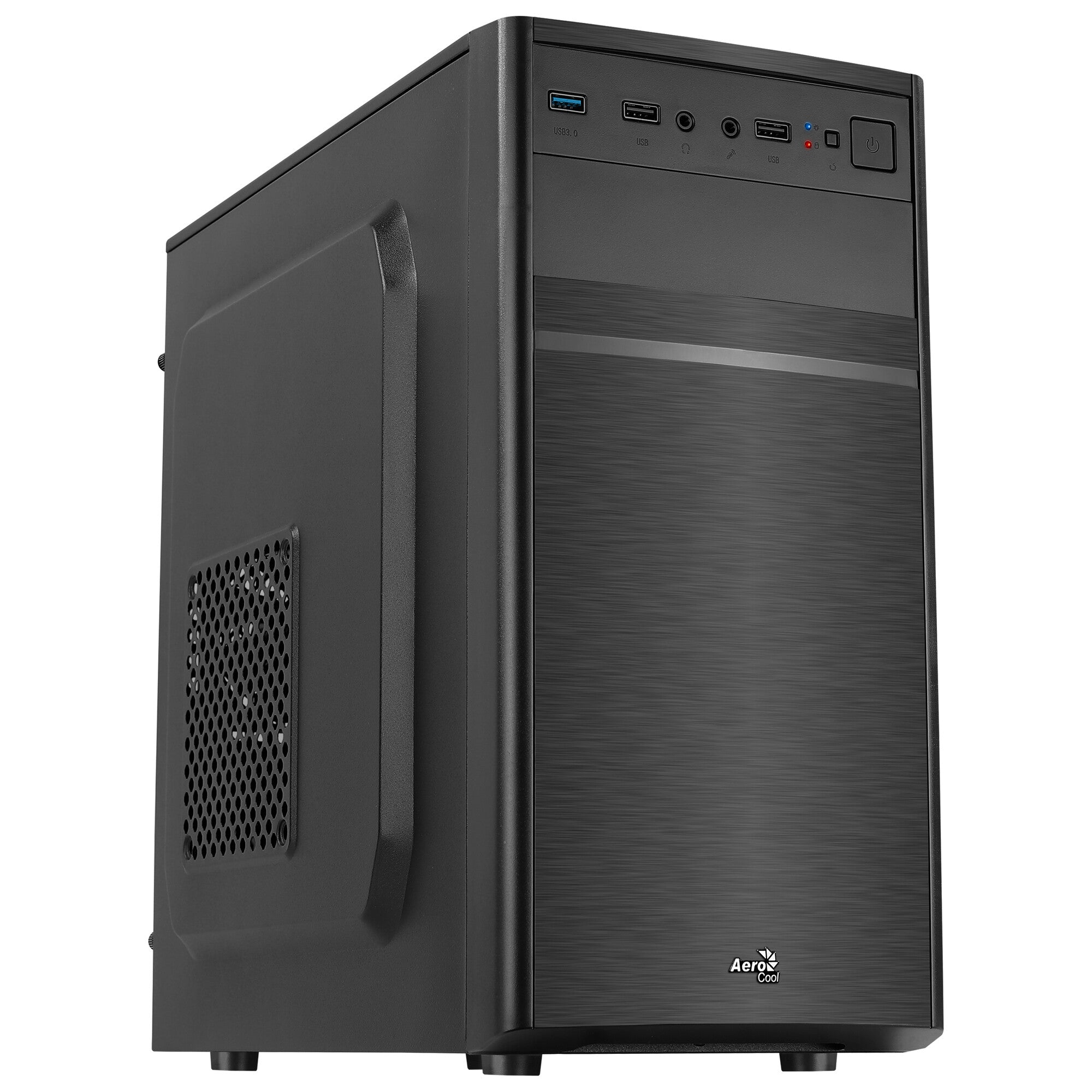

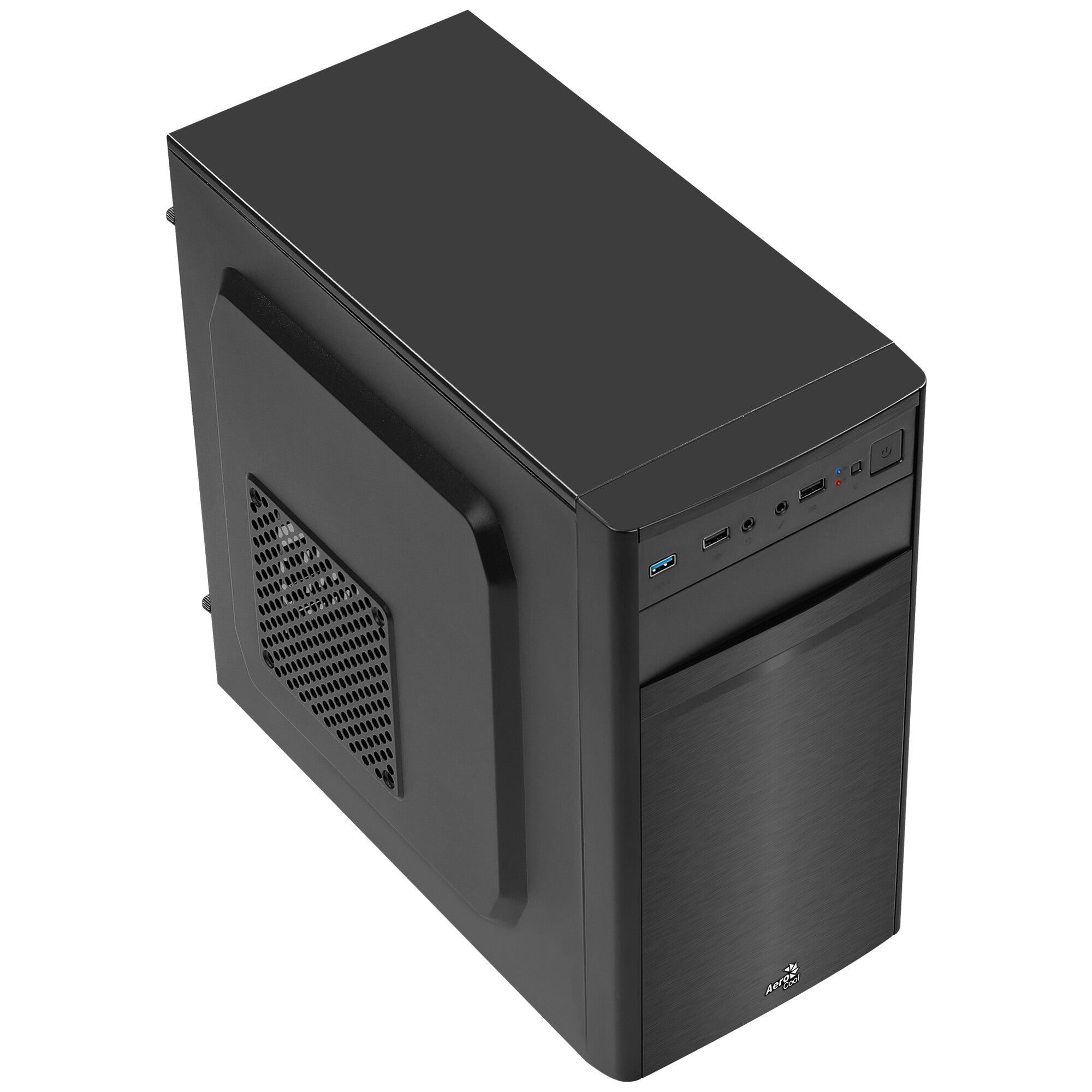

Aerocool CS-103 Mini Tower Black
- Features a brushed aluminum style front panel
- Supports air cooling in the front, rear, and side of the case
- Supports high-end graphics cards up to 322mm (without front fan)
- Supports CPU coolers up to 156mm
- Supports up to 1 x 5.25” ODD, 2 x 3.5” HDDs, and 2 x 2.5” SSDs
MINI TOWER CASE
Affordable mini tower case features a compact design, making it perfect for office use. Comes with a brushed aluminum style front panel to deliver a professional, elegant look. Supports air cooling in the front, side, and rear of the case to enhance cooling performance and comes equipped with a 80mm fan in the rear.

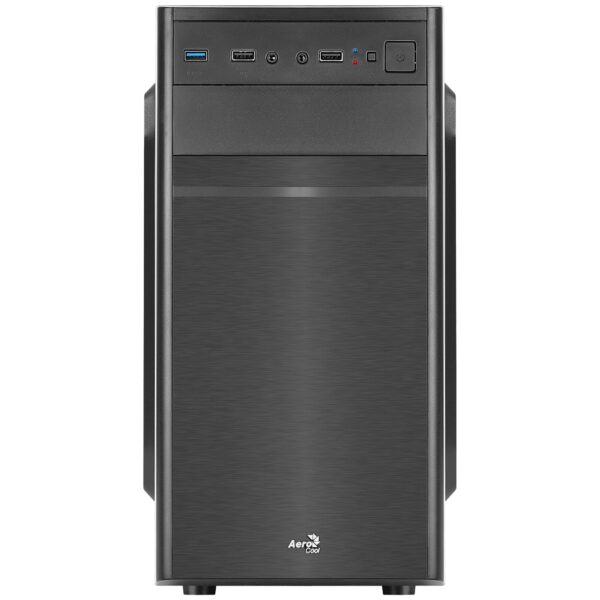

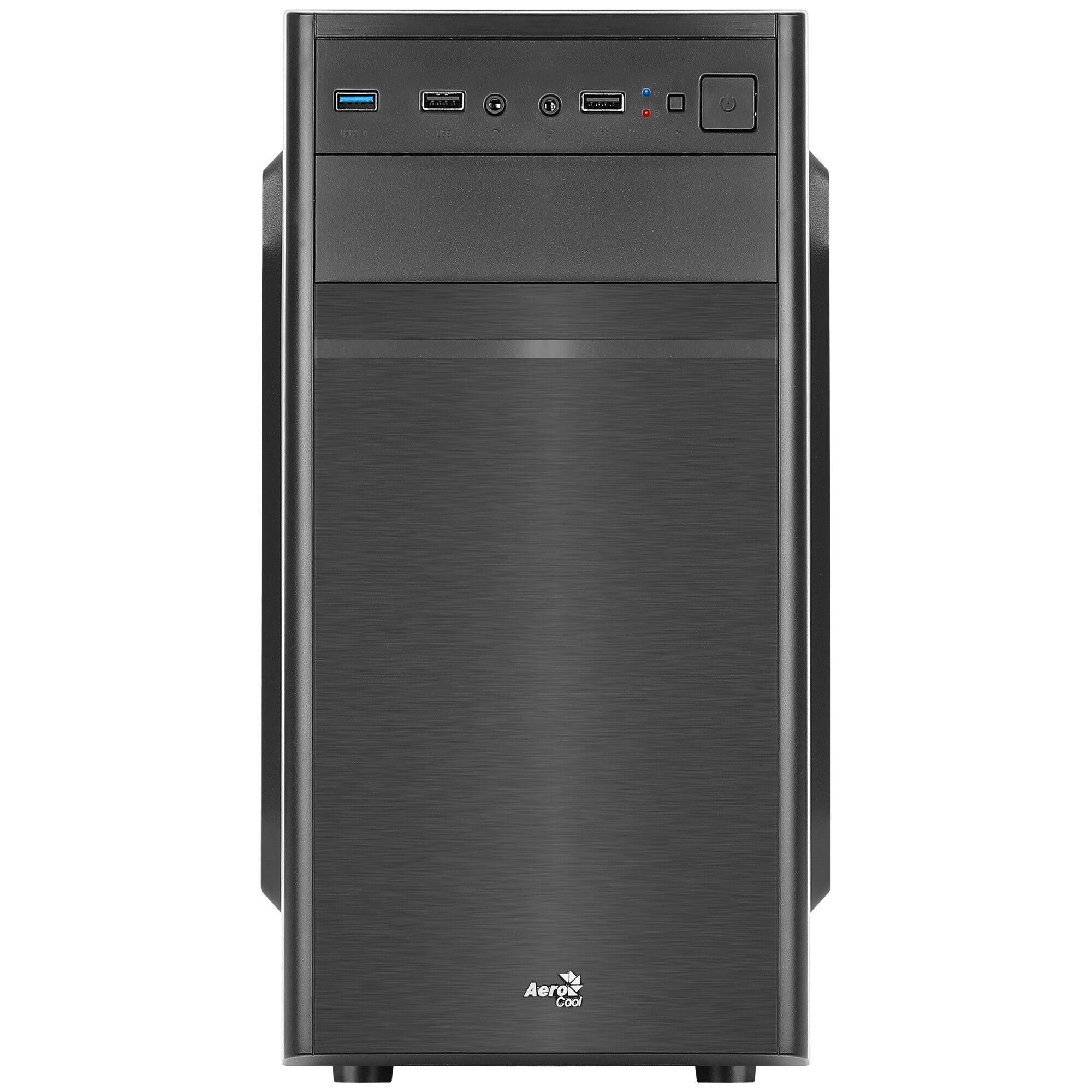

BRUSHED ALUMINUM STYLE FRONT PANEL
Brushed aluminum style front panel delivers a professional, elegant look.
Featuring a stylish and compact design, this corporate mid tower case is perfect for office use.
AIR COOLING
Supports air cooling in the front, rear, and side to enhance cooling performance.
– Front: 120mm x 1 (Optional)
– Side: 120mm x 1 (Optional)
– Rear: 80mm x 1 (Included)
BUILT FOR HIGH PERFORMANCE
– Supports Micro-ATX, and Mini-ITX motherboards
– Supports CPU coolers up to 156mm
– Supports high-end graphics cards up to 322mm (without front fan)
CONVENIENT ACCESS TO YOUR MEDIA
Quick and easy access to 1 x USB 3.0, 2 x USB 2.0, HD audio and mic ports, and power and reset buttons.
STORAGE CAPABILITY
Supports up to 1 x 5.25” ODD, 2 x 3.5” HDDs, and 2 x 2.5” SSDs.
| Design | |
|---|---|
| Maximum graphics card length | 32.2 cm |
| Maximum CPU cooler height | 15.6 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Side window | No |
| Number of expansion slots | 4 |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 2 |
| Number of 5.25″ bays | 1 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Rear fans diameters supported | 80 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 80 mm |
| Side fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of front fans supported (max) | 1 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25″ |
| Weight & dimensions | |
|---|---|
| Weight | 2.15 kg |
| Height | 371 mm |
| Depth | 357.6 mm |
| Width | 199 mm |
| Packaging data | |
|---|---|
| Package weight | 2.68 kg |
