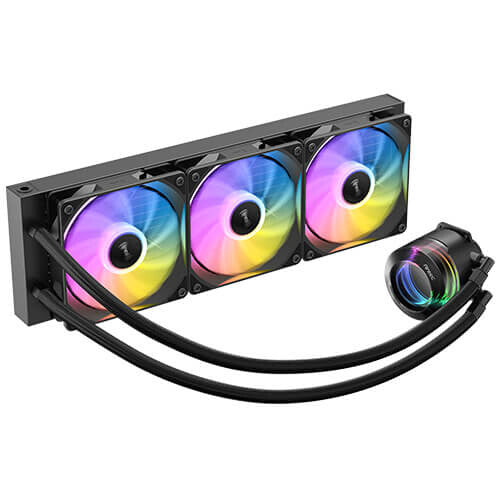

Antec Vortex Lum 360 ARGB CPU All in One Liquid Cooler – Black
- Processor Liquid cooling kit 12 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4
- 71.5 cfm 2.45 mmH2O Hydraulic
- 120 x 25 x 120 mm
- Black
Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
Massive Copper Base Plate
Provides highly efficient cooling at all loads.
EPDM High-Density Tubing
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.
Extreme Cooling Performance
800±200~1800±10% RPM
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
CPU Socket Compatibility
Intel compatibility : LGA 115X / 1200 / 1700 / 1851 / 20XX
AMD compatibility : AM3 / AM4 / AM5 / TR4
| Performance | |
|---|---|
| Operating temperature (T-T) | -10 – 60 °C |
| Fan’s mean time to failure (MTTF) | 40000 h |
| Pump’s mean time to failure (MTTF) | 40000 h |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 800 RPM |
| Pump connector | 3-pin |
| Pump noise level | 28 dB |
| Fan noise level (max) | 31 dB |
| Bearing type | Hydraulic |
| Fan 2 rotational speed (max) | 1800 RPM |
| Fan 2 rotational speed (min) | 800 RPM |
| Maximum air pressure | 2.45 mmH2O |
| Maximum airflow | 71.5 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4 |
| Fan diameter | 12 cm |
| Type | Liquid cooling kit |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 3-pin + 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fins | 13 |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Product colour | Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 280 W |
| Pump voltage | 12 V |
| Fan current | 0.25 A |
| Pump current | 250 mA |
| Pump power consumption | 3 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Fan 2 dimensions (W x D x H) | 120 x 25 x 120 mm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Pump height | 4.85 cm |
| Pump depth | 6.7 cm |
| Pump width | 6.7 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 39.7 cm |
| Radiator width | 12 cm |
| Packaging content | |
|---|---|
| CPU bracket(s) | Yes |
| CPU socket spacer(s) | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Fan rated voltage | 10.8 – 13.2 V |
- manual pdf
- leaflet
