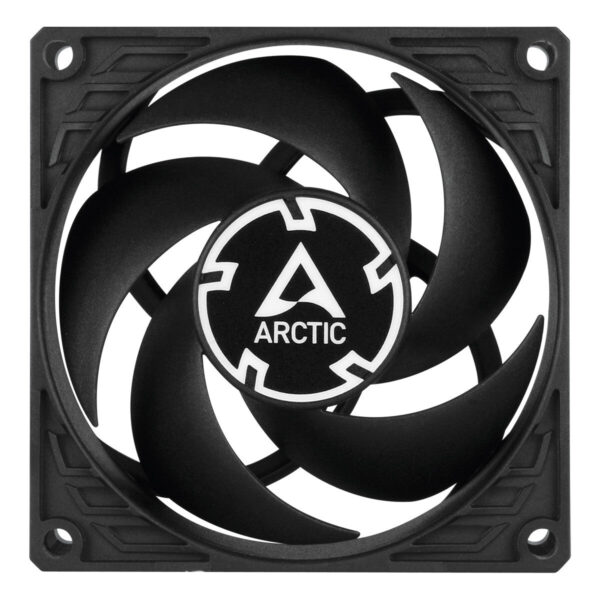

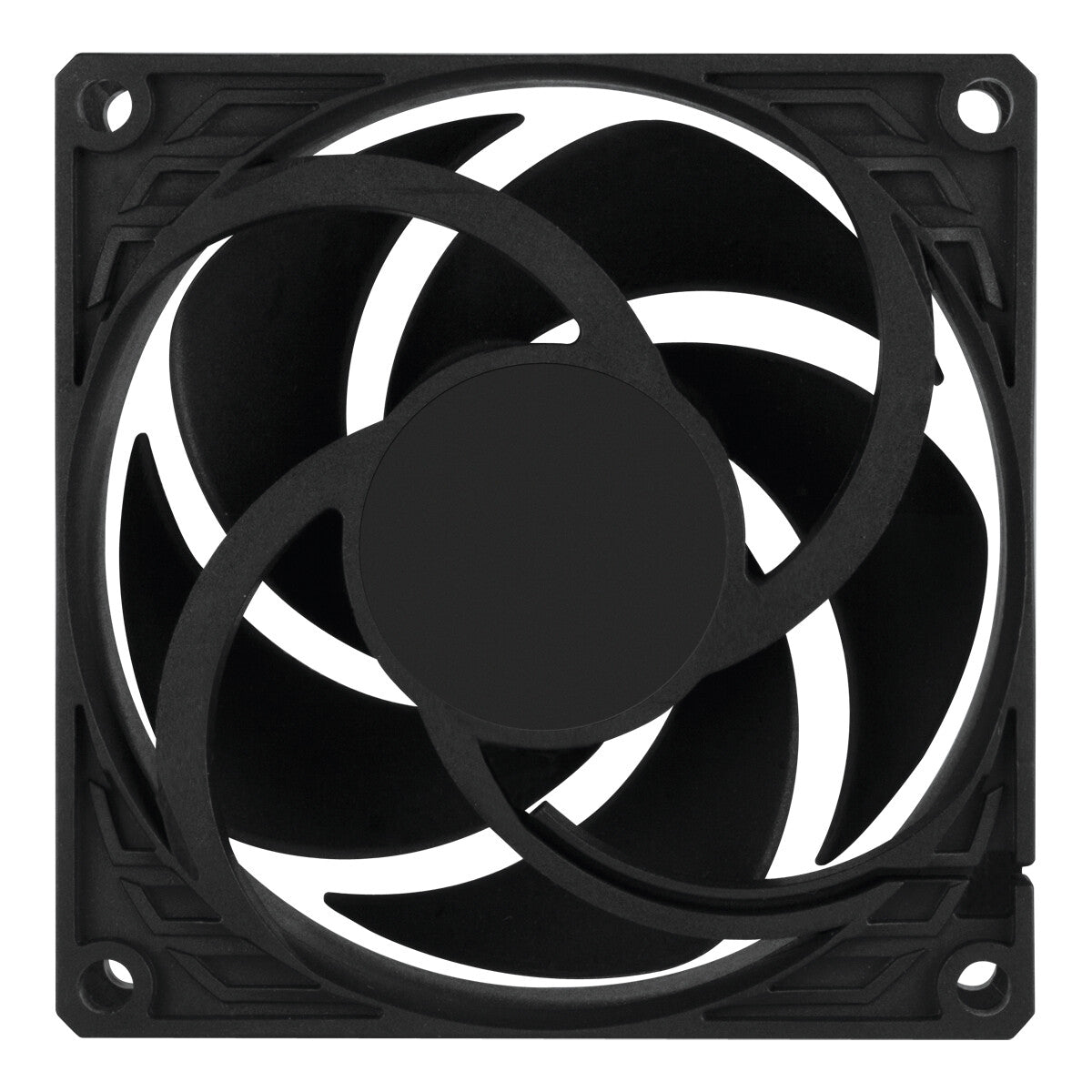

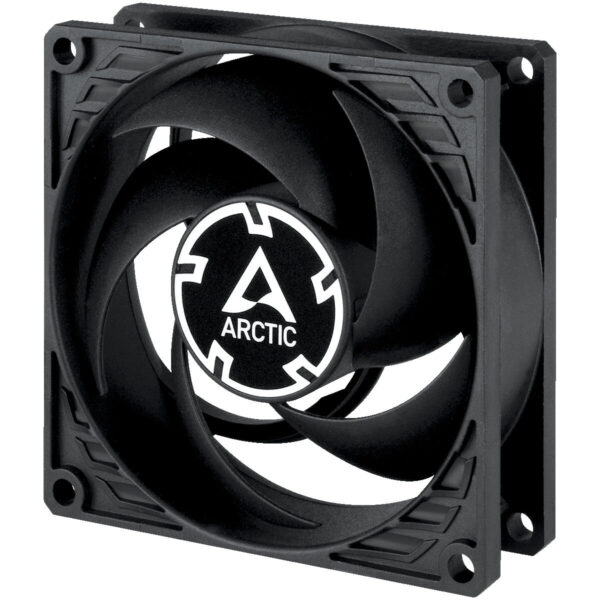

ARCTIC P8 Max – High-Performance 80 mm PWM Fan

The P8 Max is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 40 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.19 A. The P8 Max is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.

Extremely Wide Speed Range

The P8 Max enables precise fan speed (500 to 5000 rpm) via pulse width modulation control, which can be adapted to the individual cooling requirements. The P8 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.

Low Power Consumption

The P8 Max is distinguished by its extremely high efficiency. At a speed of 3000 rpm and a voltage of 12 volts, it requires only 0.669 watts, which corresponds to a current of 0.06 amps.

Optimised for High Static Pressure

The P8 Max delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P8 Max is also specially suitable for use on heat sinks, radiators, pinholes and filters.

0 dB Mode – Zero rpm

The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P8 Max to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the P8 Max is equipped with ARCTIC’s proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a six years manufacturer’s guarantee on the P8 Max.
