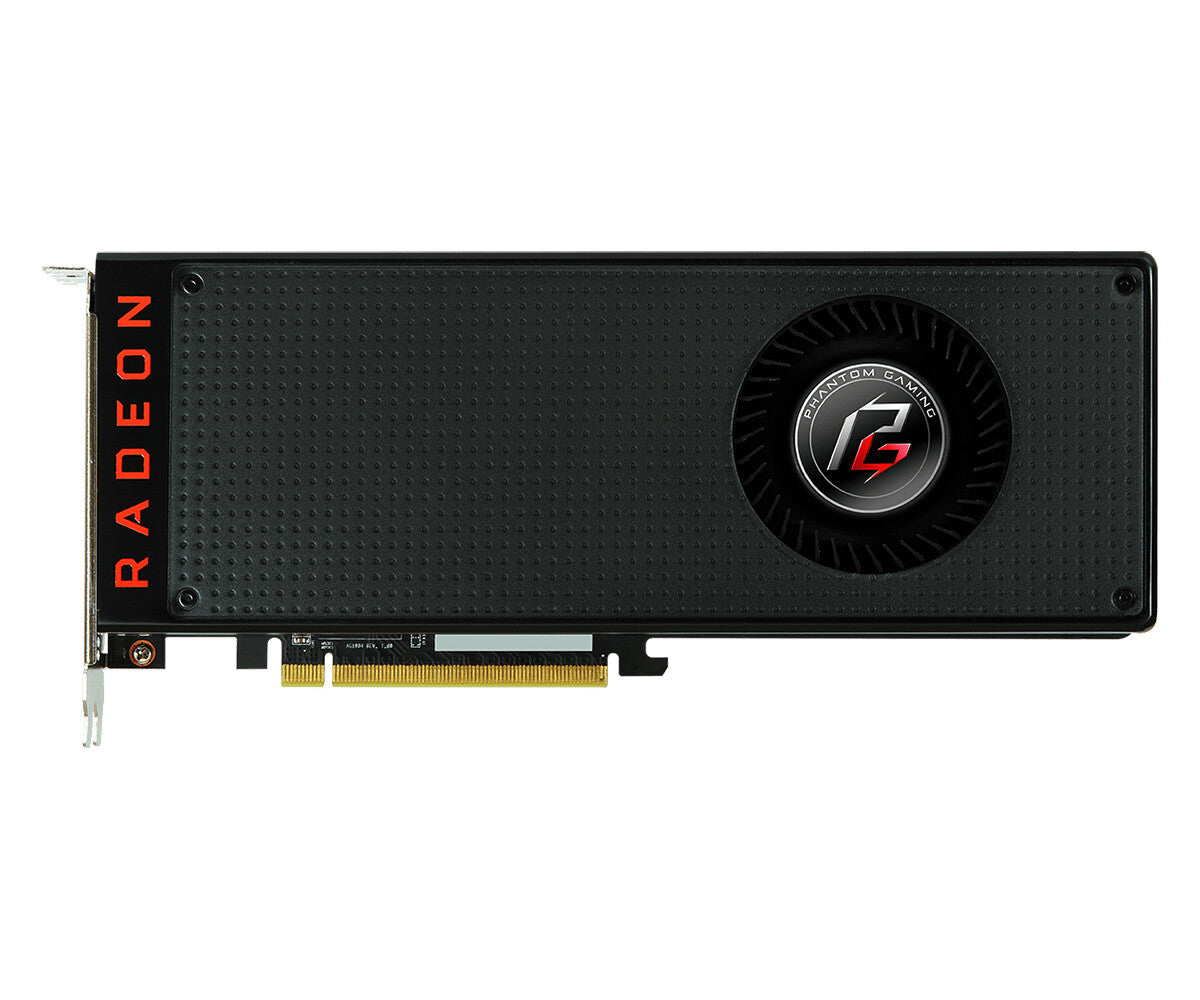

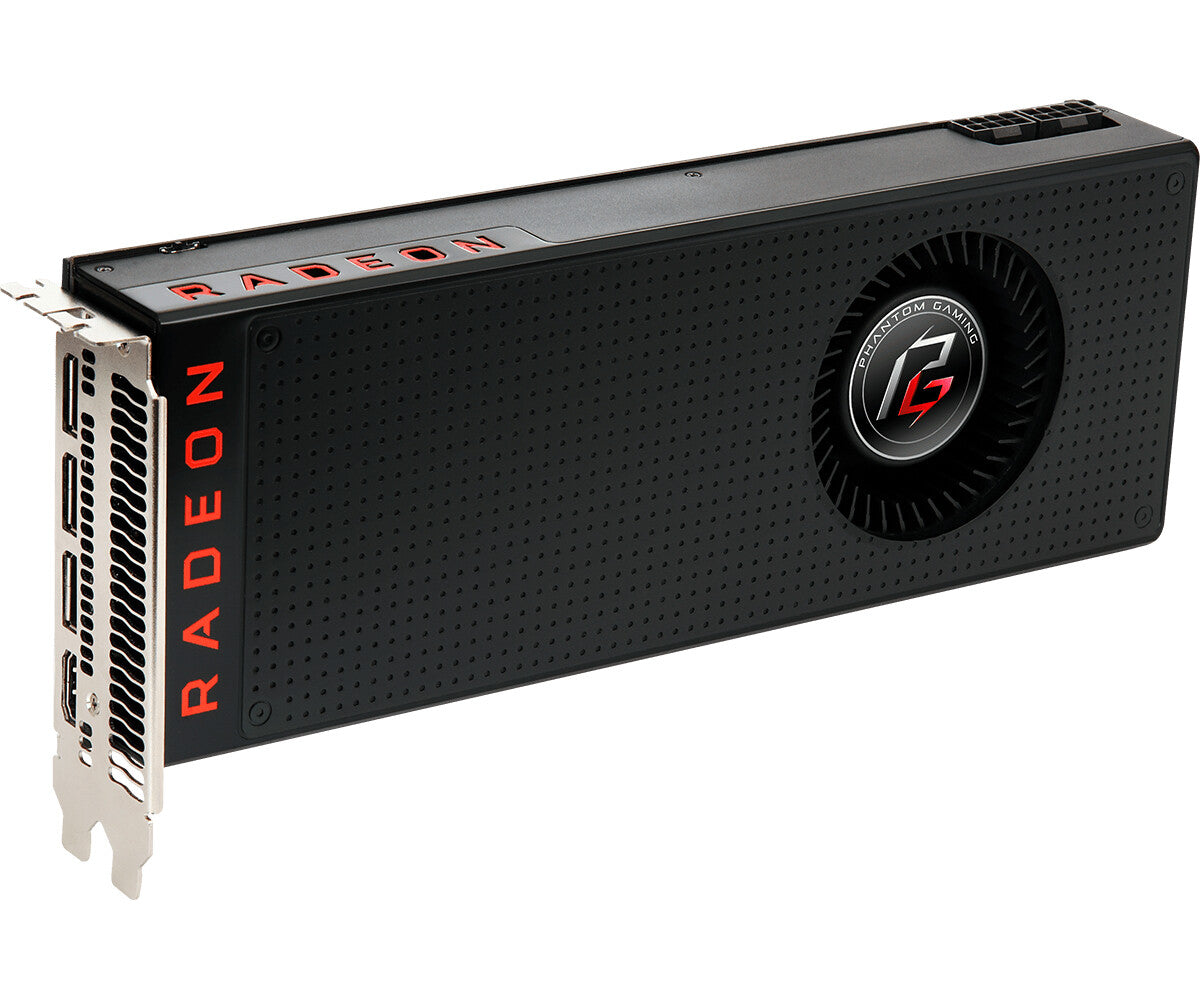

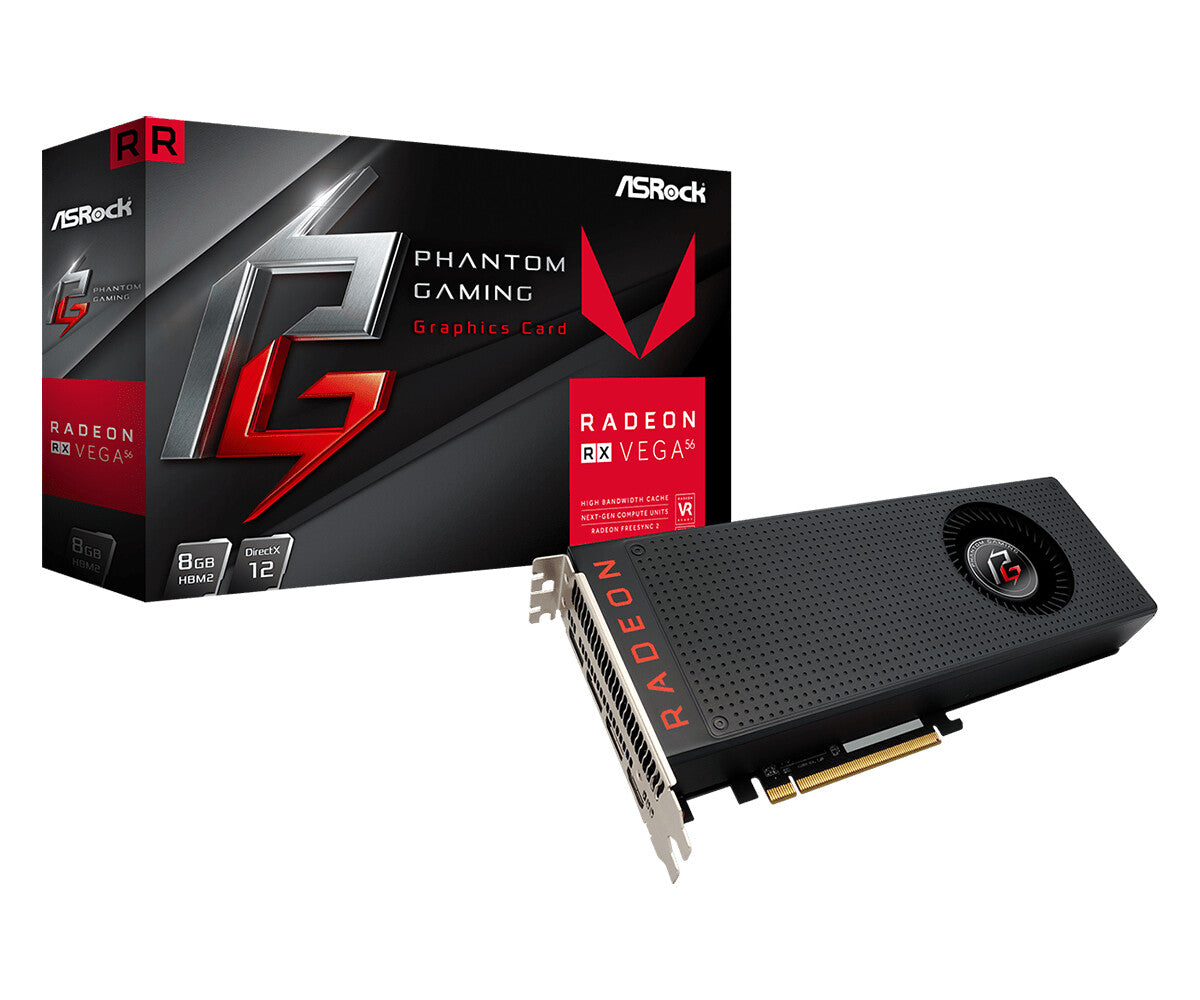

Asrock 90-GA0900-00UANF graphics card AMD Radeon RX Vega 56 8 GB High Bandwidth Memory 2 (HBM2)
- Double Ball Bearings Fan Design
- High Performance Composite Vapor Chamber
- Support 8K Resolution
- Graphic Outputs: HDMI, 3 x DisplayPort
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Radeon FreeSync™ 2 HDR Technology
Get ready to experience smooth brilliant HDR gaming. Enjoy vibrant HDR content while eliminating image tears and choppiness for effortlessly smooth gameplay. Low Frame-Rate Compensation, Low Latency, Plug and Play and HDR Ready. That’s Radeon FreeSync™ 2 HDR.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Phantom Gaming Tweak
A fast and easy tool that provides users with an abundant collection of subtle settings for professional tweaking such as FAN speed, core clocks, memory frequency and so on. Users may also choose the most optimized mode based on their needs, like OC mode, Silent mode or default mode. Phantom Gaming Tweak delivers more than enough voltage configuration options for anyone who wish to pursuit extremes.
Radeon™ WattMan
Take your gameplay to the next level by fine-tuning your GPU voltage, engine clocks, memory clocks, fan speed and temperature. Save, load and share custom Radeon™ WattMan profiles to quickly and easily optimize performance or create a personalized gaming experience.
Radeon™ Chill
Radeon™ Chill designed to save power, lower temperature, Radeon™ Chill enables high performance graphics when you battle and saves power when you explore.
Radeon™ ReLive
Radeon™ ReLive (ReLive) allows users to capture, stream and share gameplay videos and screenshots.
Capturing gameplay using Radeon ReLive is easy to configure and has a minimal impact on performance, which is measured in frames per second (FPS).
Enhanced Sync
Enhanced sync enables low latency gameplay at virtually any framerate and a tear-free experience when your favorite game’s framerate exceeds your display’s refresh rate.1
Unlock your VSync. Enhanced sync technology delivers a tear-free experience when framerate exceeds your display’s refresh rate at an ultra-low latency to take your E-Sports gaming to the next level.
Radeon™ Overlay
The all-new Radeon Overlay lets gamers take performance to the next level with the ability to monitor, record and fine tune their gameplay without ever leaving the game.
Much like an activity tracker for your PC, Radeon™ Overlay provides one-click access to Radeon™ ReLive, Performance Monitoring, Radeon™ Chill, Frame Rate Target Control (FRTC), Radeon™ FreeSync and Color Settings.
AMD Link
AMD Link is a powerful mobile app built to complement Radeon™ Software Adrenalin Edition. It allows you to conveniently access gameplay performance metrics and PC system info on your smartphone and/or tablet. You can easily connect to your PC either by a QR code in Radeon Settings or manually entering the required info. It is designed with today’s socially-connected, mobile-first world in mind – and with the gamer at its center.
| Processor | |
|---|---|
| Maximum digital resolution | 7680 x 4320 pixels |
| Stream processors | 3584 |
| Maximum displays per videocard | 4 |
| FireStream | No |
| Processor boost clock speed | 1471 MHz |
| Processor frequency | 1156 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX Vega 56 |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Memory clock speed | 800 MHz |
| Memory bus | 2048 bit |
| Graphics card memory type | High Bandwidth Memory 2 (HBM2) |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| Full HD | Yes |
| AMD FreeSync | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.5 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Weight & dimensions | |
|---|---|
| Height | 41 mm |
| Depth | 28 mm |
| Length | 127.2 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Drivers included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
