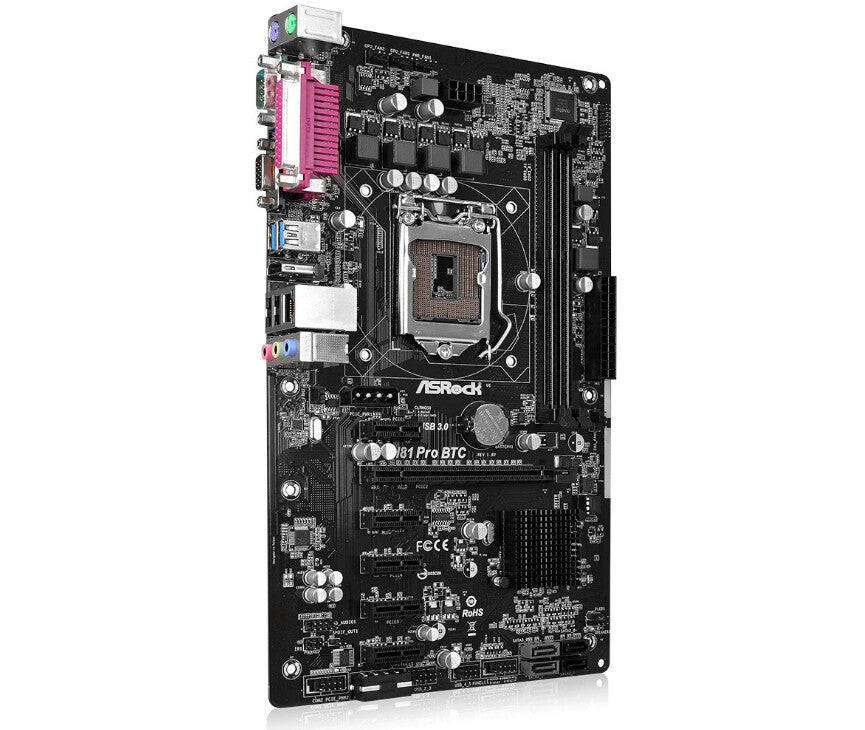

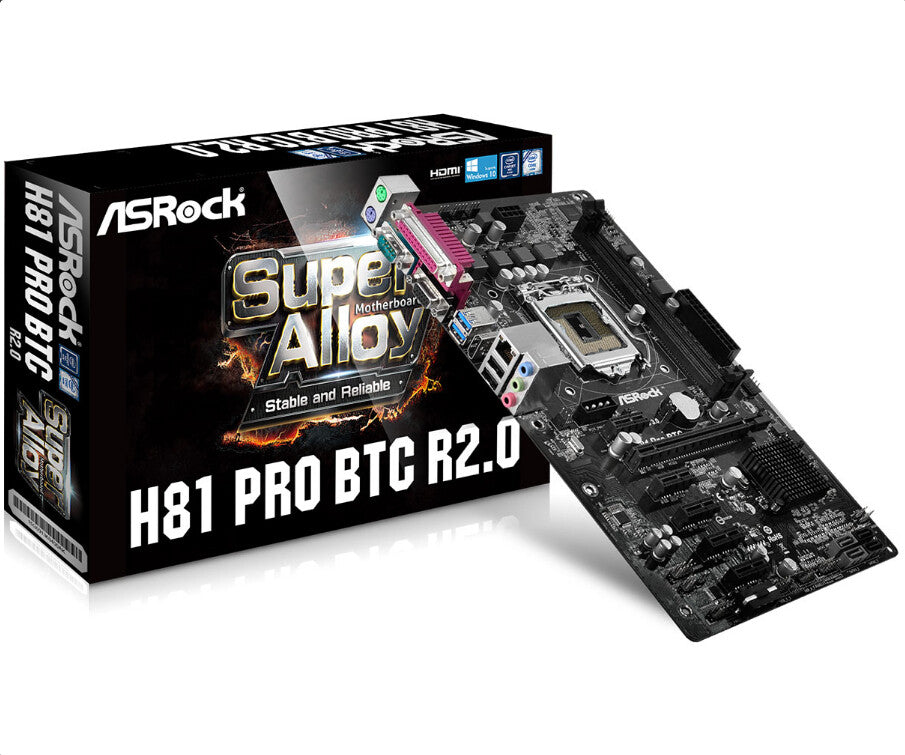

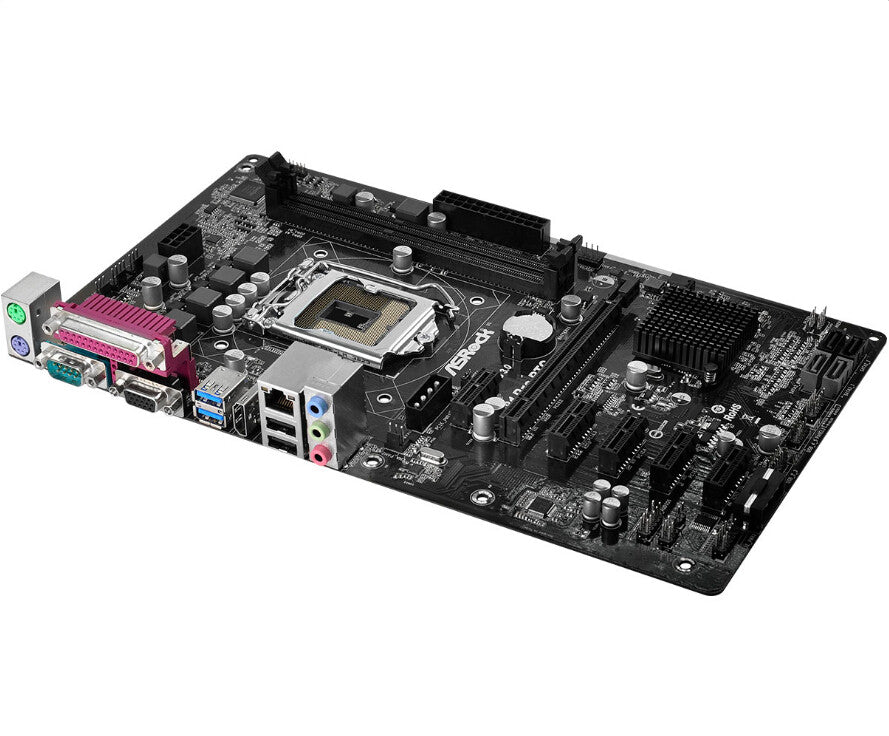

Asrock H81 Pro BTC R2.0 Intel® H81 LGA 1150 (Socket H3) ATX

• ASRock Super Alloy
• Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
• All Solid Capacitor design
• Digi Power, 4 Power Phase design
• Supports Dual Channel DDR3 1600
• 1 PCIe 2.0 x16, 5 PCIe 2.0 x1
• Graphics output options: D-Sub, HDMI
• 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• 2 SATA3, 2 SATA2
• 2 USB 3.1 Gen1, 6 USB 2.0 (4 Front, 2 Rear)
• Realtek Gigabit LAN
• Supports Full Spike Protection, ASRock Live Update & APP Shop

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

D-Sub, Parallel, COM
Complete with all three types of most used connectors! Packed with a D-Sub + COM port + Printer port combo for connecting all of your peripherals.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

4 Power Phase Design
The power phase design offers smooth power delivery to the CPU, unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.

Intel® HD Graphics Built-in Visuals
Intel® HD Graphics, simplifies your designs by eliminating additional discrete graphics hardware, while integrating stunning visuals and performance for immersive gaming.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
