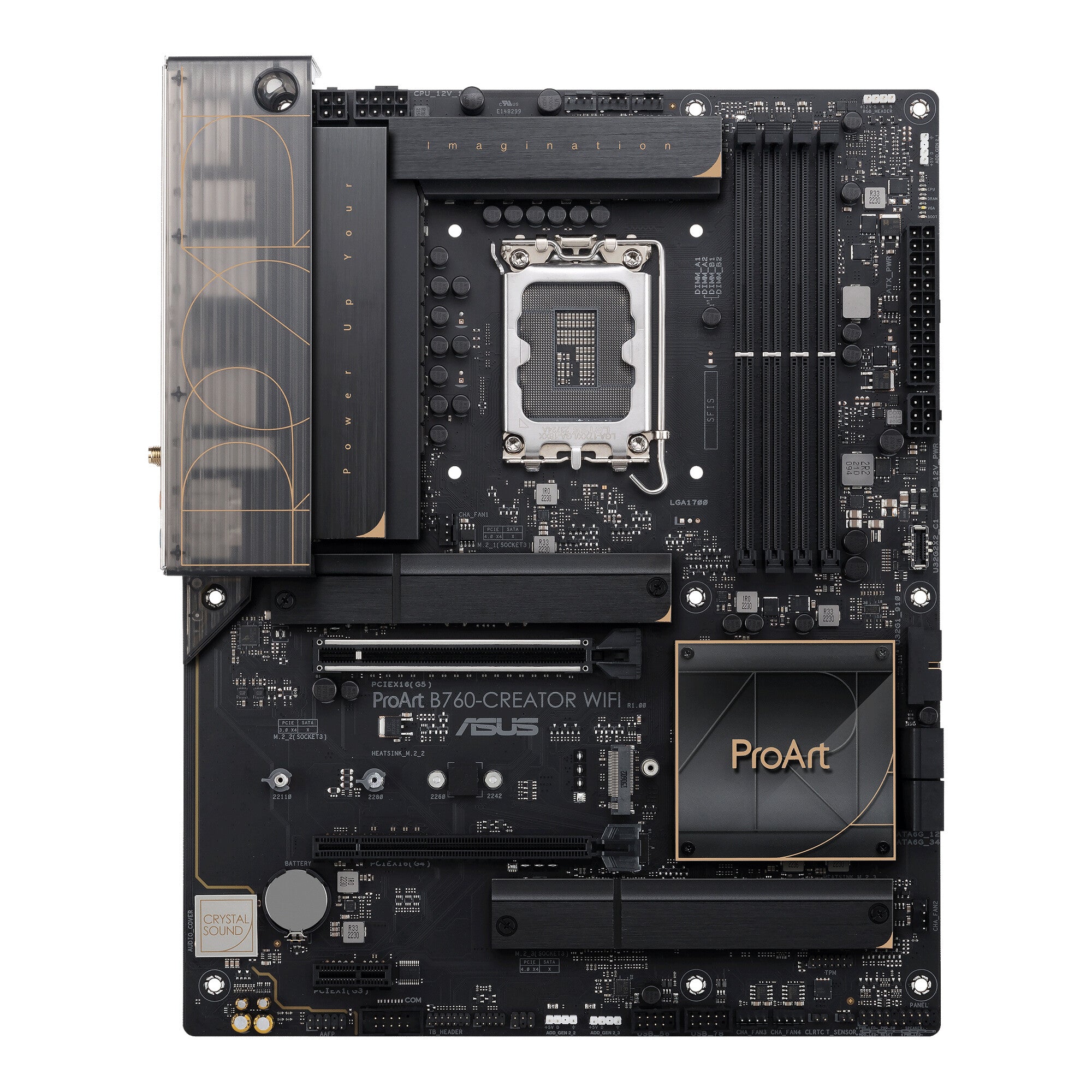

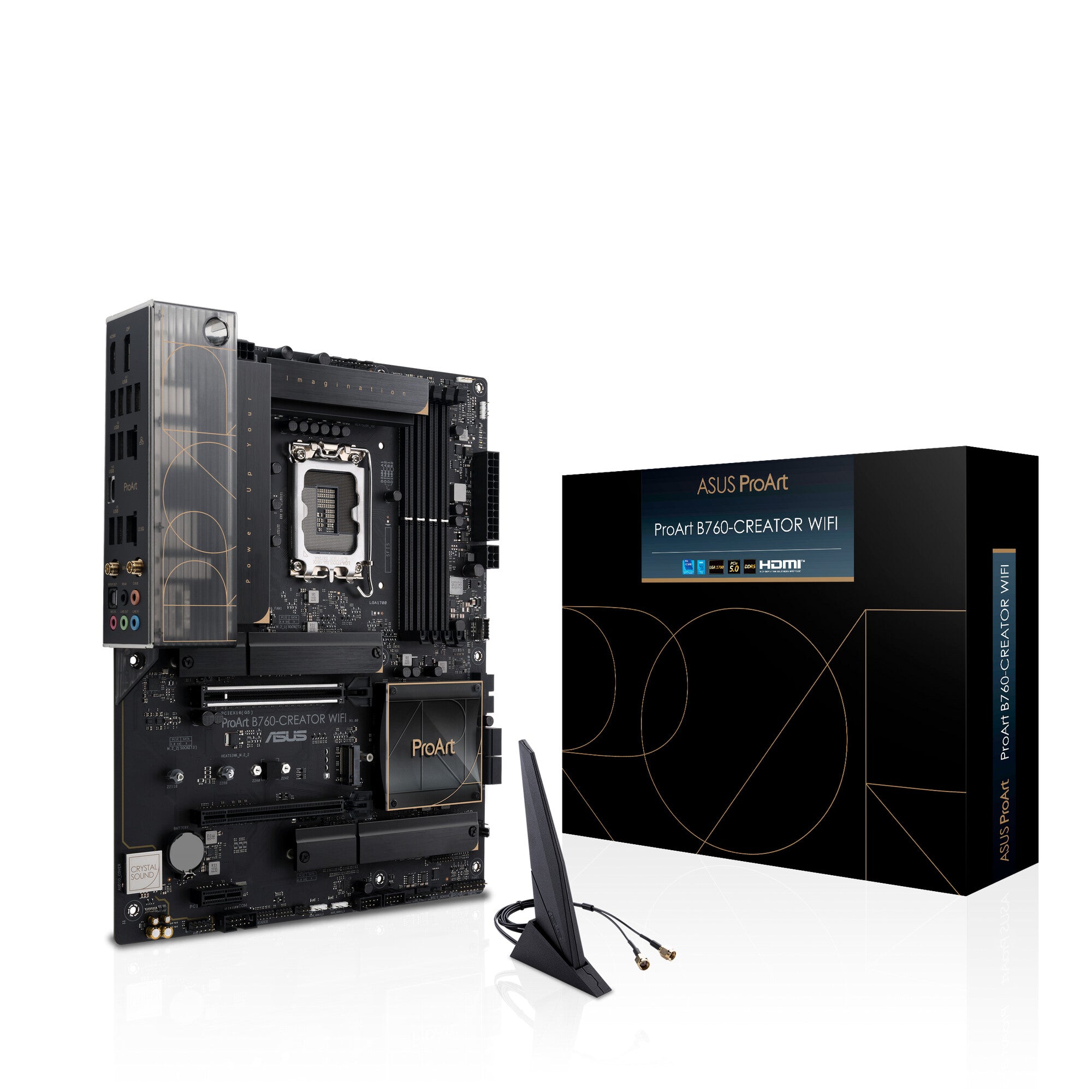

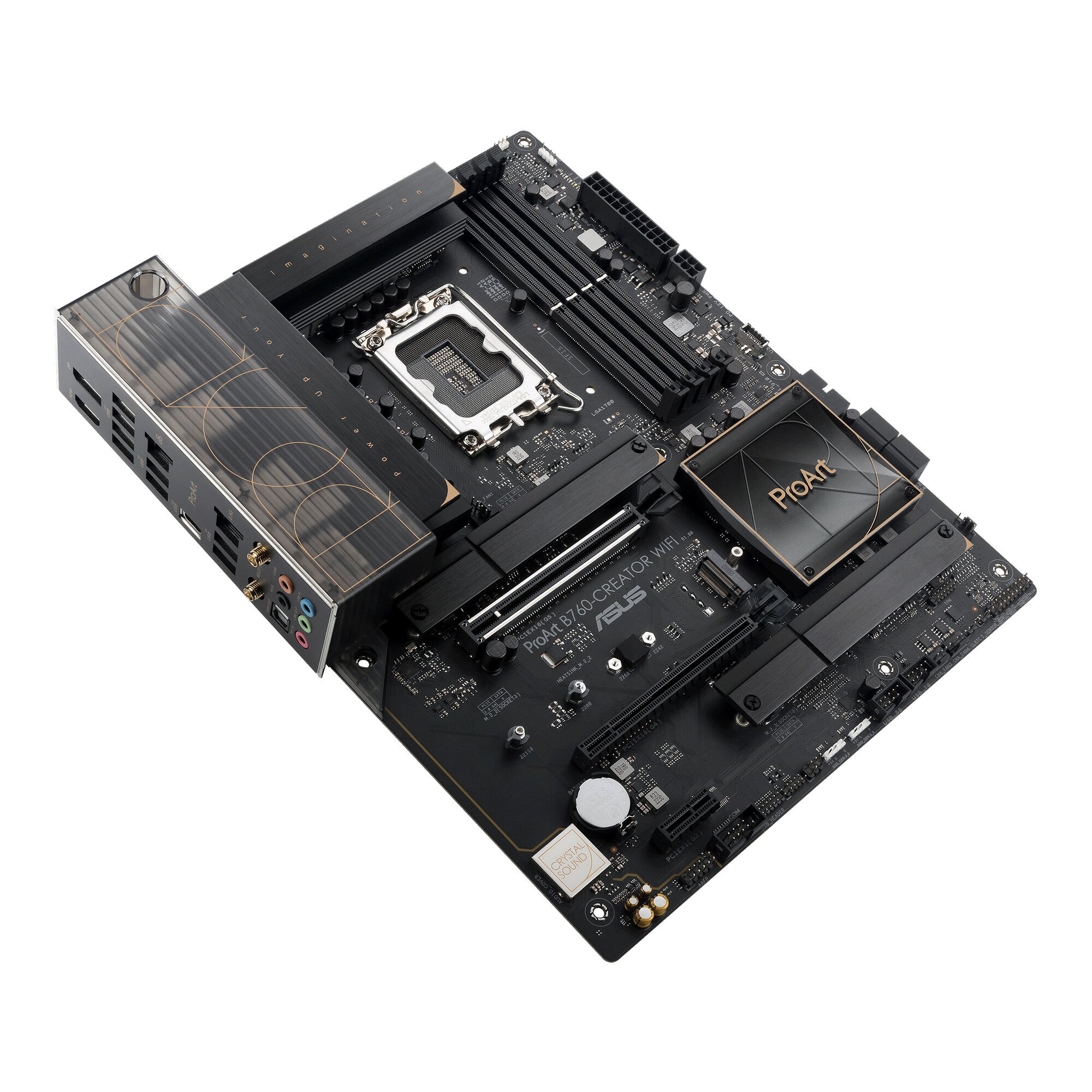

ASUS 90MB1FY0-M0EAY0 motherboard Intel B760 LGA 1700 ATX
- Intel LGA 1700 Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC ATX Intel B760 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- SSD M.2, PCI Express 3.0, PCI Express 4.0
- 2.5 Gigabit Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax)
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0 |
| Supported storage drive types | SSD |
| Internal I/O | |
|---|---|
| Power fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 2.0 connectors | 2 |

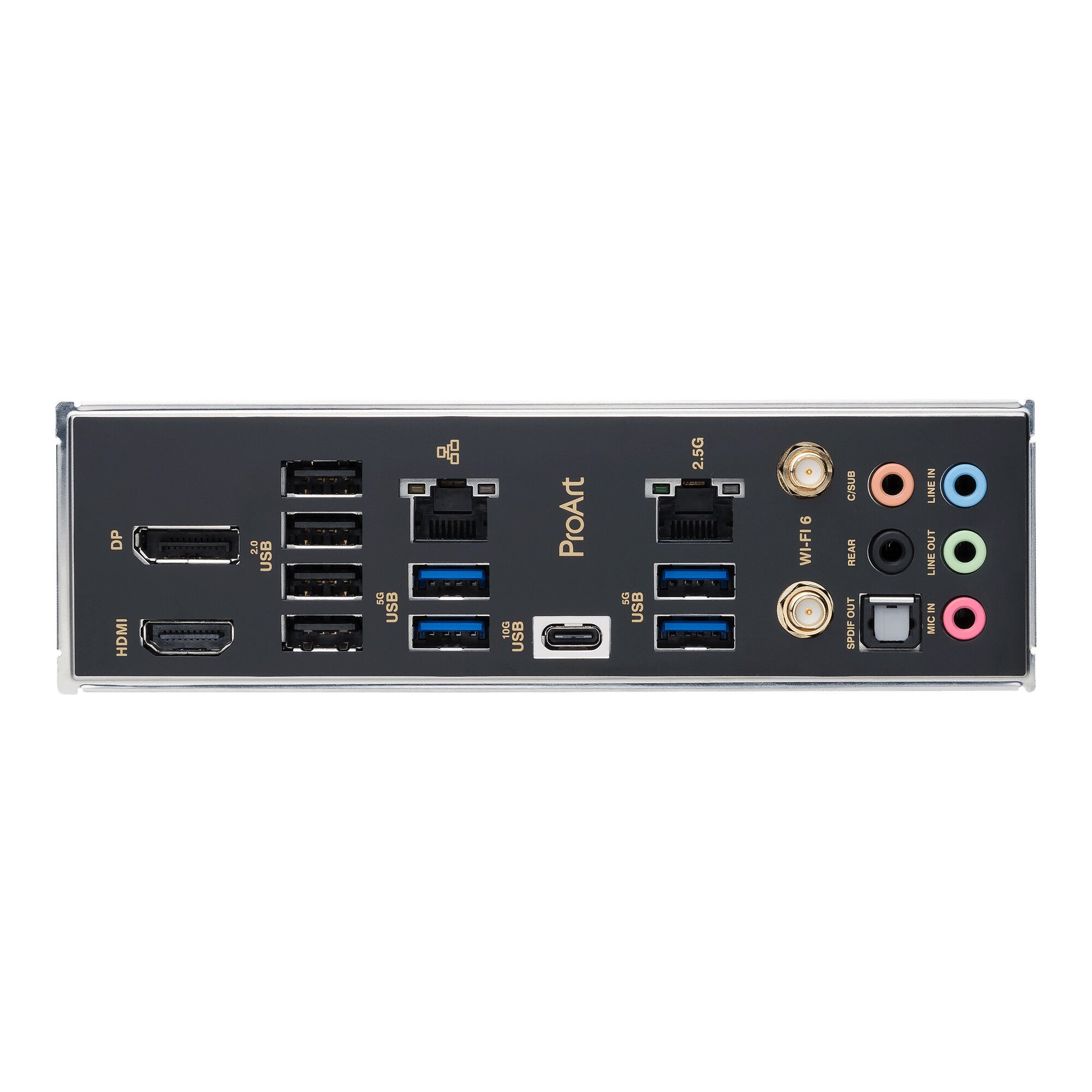

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| S/PDIF out port | Yes |
| Headphone outputs | 5 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 6 |
| Network | |
|---|---|
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Cooling type | liquid |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
