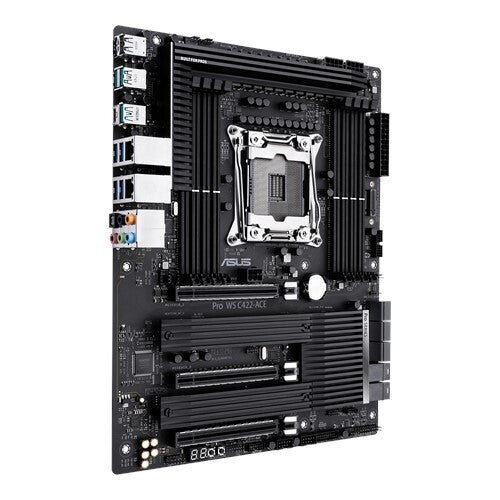

ASUS Pro WS C422-ACE Intel® C422 LGA 2066 (Socket R4) ATX

• Ready for the latest Intel Xeon W workstation Processors
• Three PCIe 3.0 x16 slots with optimized lane arrangement of 3-way x16/x16/x8 to accelerate an increasingly diverse array of workloads
• Enhanced power solution: 12+2 IR3555 power stages, ProCool II connectors, alloy chokes, durable capacitors and 8-layer PCB design for stable power delivery
• Ultrafast data-transfer speed with triple M.2 slots with two integrated heatsinks and dual U.2 slots for NVMe storage
• ASUS Control Center Express: Server-grade IT management software featuring remote management and an intuitive interface
• Server-grade quality with reliability testing to ensure optimized, 24/7 operation in various environments
• Next-gen USB 3.2 Gen 2 connectivity delivers speeds of up to 10Gbps via Type-A and Type-C ports

Pro WORKSTATION MOTHERBOARD
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they’re also an efficient and cost-effective option for IT administrators.

Multi-GPU support
Fully loaded takes on new meaning when you have up to 48 PCI Express lanes and those lanes can be split in a 3-way x16/x16/x8 configuration spanning the board’s trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.

ASUS 2-WAY VGA holder User-friendly design
The Pro WS C422-ACE is packed with an exclusive two-way VGA holder to provide extra rigid support for up to two high-end graphics cards, to prevent potentially damaging bowing or bending. This VGA holder is easy to install and can be mounted with an additional system fan (up to 120mm), making sure your workstation has ample cooling to complete any task.

ProCool II power connector
The latest ProCool II is an enhanced EATX 8-pin power connector that offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation, as well as a warning LED display with a BIOS POST message to indicate an improper connection.

Power stages with IR3555 design
The CPU VRM on Pro WS C422-ACE employs a 12+2 power stage design with IR3555, combining high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that high core count processors demand.

Alloy chokes
The Pro WS C422-ACE series uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the processors.

Durable capacitors
Durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

8-layer PCB design
Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.

Triple M.2
With x4 PCI Express 3.0 bandwidth, Pro WS C422-ACE comes with three onboard M.2 slots — including one vertical slot — that support up to 32Gbps data-transfer speeds. The slots feature ultra-efficient, dual heatsinks that reduce M.2 SSD temperatures by up to 18.7°C for optimal storage performance and improved SSD longevity.

Dual U.2
Unleash NVMe storage devices with dual U.2 ports to experience data-transfer speeds of up to 32Gbps and free up a PCIe slot for another expansion card.

Upgrade your RAID
Intel Virtual RAID on CPU (VROC) obliterates PCH-based RAID arrays that are bottlenecked by the 32Gbps limit of the DMI bus, allowing you to utilize CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds. Pro WS C422-ACE supports RAID 0, 1, 5, 10 to provide fault tolerance and improve overall performance.

Trusted Stability
Pro WS C422-ACE provides enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability.

Ultra-efficient MOS & PCH heatsink
Pro WS C422-ACE ensures optimal cooling and system stability for the Intel Xeon W Processors. Higher power requirements are balanced by carefully designed heatsinks that carefully balance mass and surface area to maximize thermal dissipation. In addition to the VRM-heatsink array and the heatpipe that’s positioned to provide maximum airflow within the chassis, a dedicated heatsink also help to efficiently dissipate heat from the PCH.

24/7 Dependability Quality reliability test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

SafeSlot Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Cooler by design Flexible cooling controls
Pro WS C422-ACE features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

ASUS Control Center Express A server-grade IT management software
ASUS Control Center Express is centralized server-grade IT management software that takes just only a few minutes to install and is designed to reduce IT operations costs and improve efficiency. This powerful tool enables IT administrators to manage and control multiple clients in different locations remotely and includes features such as asset management, software deployment and monitoring. ASUS Control Center Express also lets IT staff visualize deployments, facilitating real-time control.

USB 3.2 Gen 2 back-panel connectors Future-proof connectivity
The back panel of the Pro WS C422-ACE features four USB 3.2 Gen 2 connectors, including one reversible Type-C and three backward-compatible Type-A to deliver ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

5-Way Optimization One-click overclock and cooling
ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of your system to provide overclocking and cooling profiles that are tailored for your rig.
An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
Stress test function helps optimize and overclock for CPU- or memory-centric workloads.

CPU performance boost
The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

All-round energy efficiency
With the Energy Processing Unit (EPU) you’ll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls for air or liquid
With Pro WS C422-ACE you have comprehensive control over fans via Fan Expert 4 or our media-acclaimed UEFI. Whether you’re cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

Precise digital power control
Digi+ delivers real-time control over voltage droop, switching frequency and power -efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Ready for Intel Xeon W processors
This motherboard supports Intel Xeon W Processors up to 18 cores to deliver Workstation Reliability, Serviceability and Availability (RAS) with Intel® Turbo Boost Max Technology 3.0, Intel® Hyper-Threading Technology, Intel® Rapid Storage Technology enterprise 5.0, Intel® Virtual RAID on Chip (Intel® VROC) and 4-channel DDR4-2933 ECC memory. This motherboard is purpose-built for 2D/3D CAD, BIM, and VR content development and ideal for the build of a HEDT.
