Axagon PCES-SA2N interface cards/adapter Internal SATA
- Full Plug and Play support
- Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s)
- Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s)
- Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s)
- Compliant with the ATA AHCI (Advanced Host Controller Interface) specification revision 1.3
- Fully supports Hot Plug connecting and disconnecting of SATA devices while running

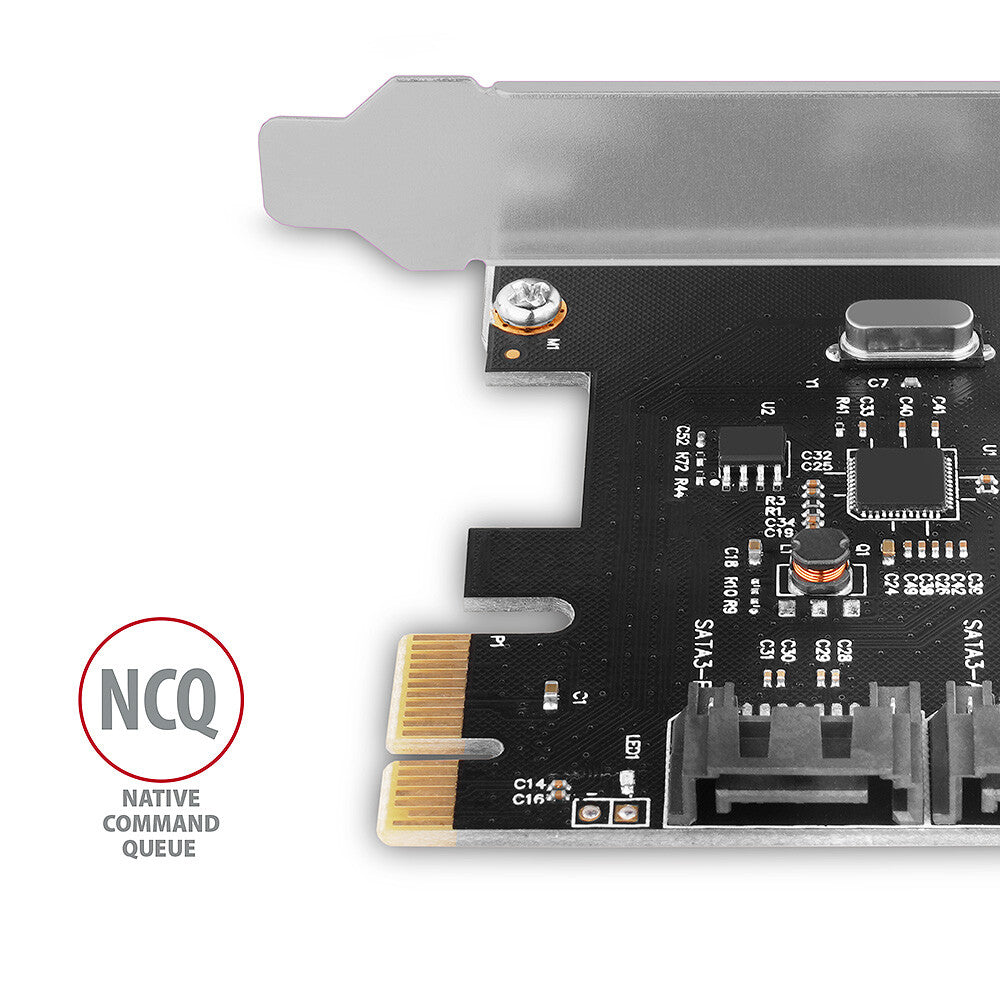

- Supports Native Command Queuing (NCQ)
- TRIM feature support for SSD disks
- Supports Port Multiplier with FIS-based switching
- The controller has its own BIOS – it supports booting from connected disks
- LED to indicate connected disks activity

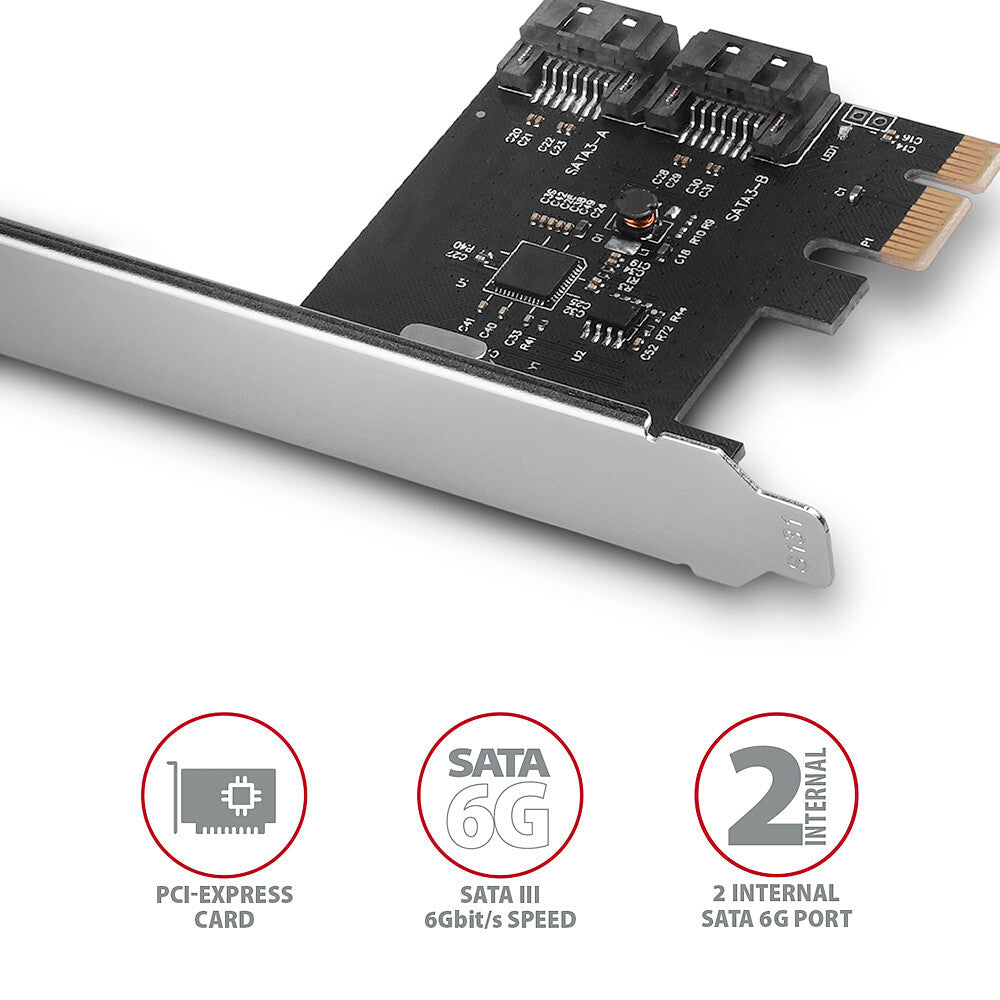

The AXAGON PCES-SA2N PCI-Express controller extends your desktop PC with two high-speed SATA III ports with a transmission rate up to 6Gb/s.
The card equipped with ASMedia chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier.
Easy installation without the need to install drivers on most operating systems.

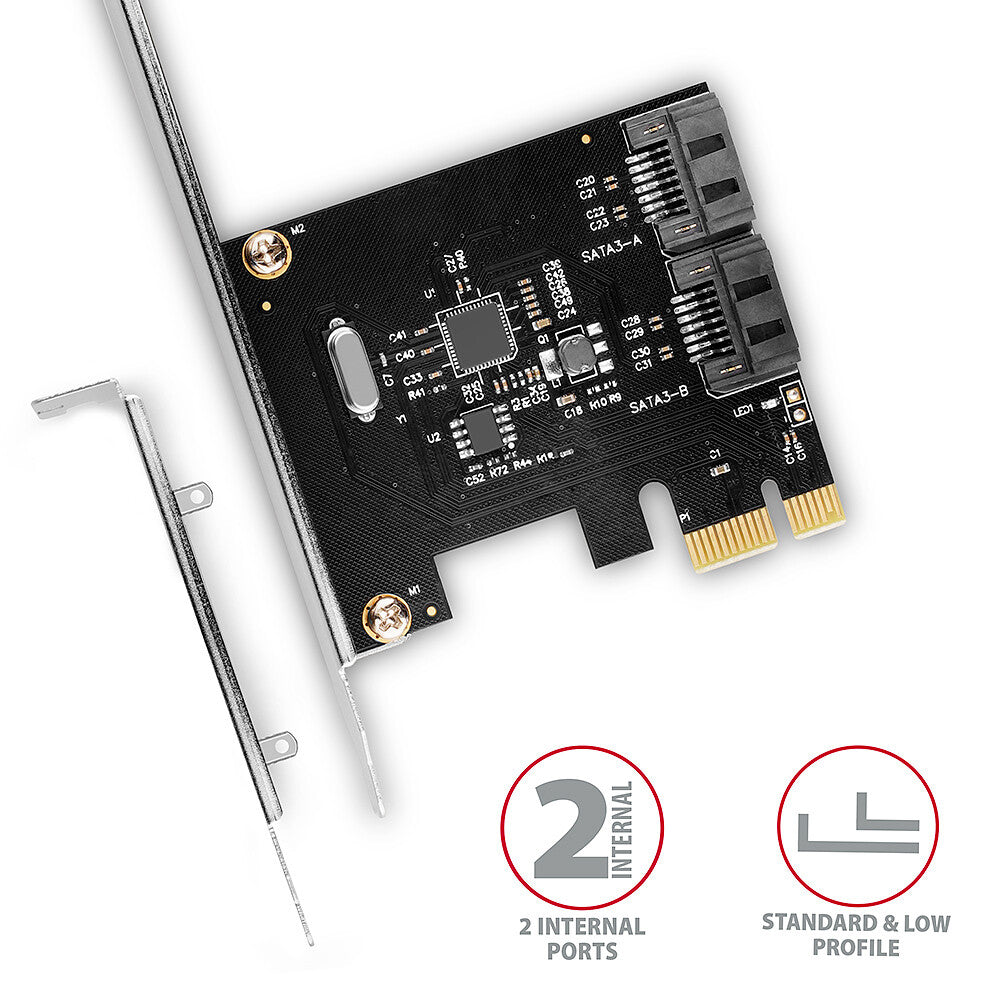

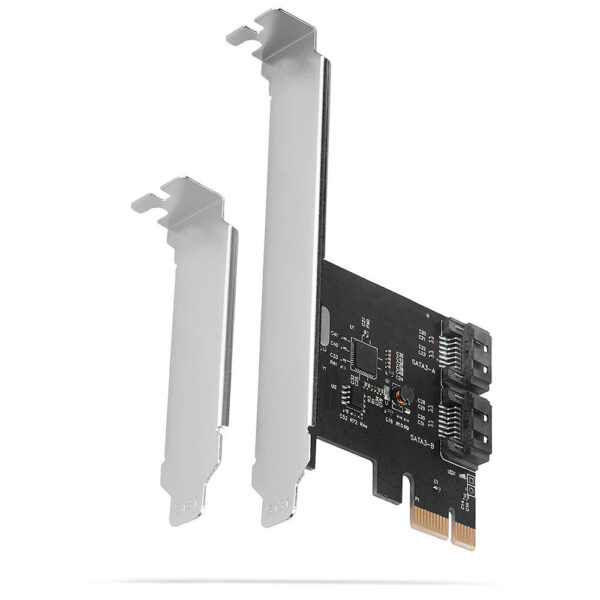

Included low profile brackets allow controller installation into standard and also low profile PC cases.
| Ports & interfaces |
| Port multiplier |
Yes |
| Internal SATA ports quantity |
2 |
| SATA revision |
3.0 |
| Expansion card standard |
PCIe 2.0 |
| Expansion card form factor |
Full-height / Low-profile |
| Host interface gender |
Male |
| Output interface |
SATA |
| Host interface |
PCIe |
| Design |
| Hot-Plug support |
Yes |
| LED indicators |
Yes |
| Purpose |
PC |
| Product colour |
Black |
| Internal |
Yes |
| Features |
| Plug and Play |
Yes |
| Native Command Queuing (NCQ) |
Yes |
| TRIM support |
Yes |
| Data transfer rate (max) |
6 Gbit/s |
| Chipset |
ASMedia ASM1061 |
| System requirements |
| Server operating systems supported |
Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported |
Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33 |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Packaging data |
| Package type |
Box |
| Package weight |
115 g |
| Package height |
170 mm |
| Package depth |
30 mm |
| Package width |
133 mm |
| Quick installation guide |
Yes |
| Cables included |
SATA |
| Quantity per pack |
1 pc(s) |
| Other features |
| Quantity per box |
100 pc(s) |
