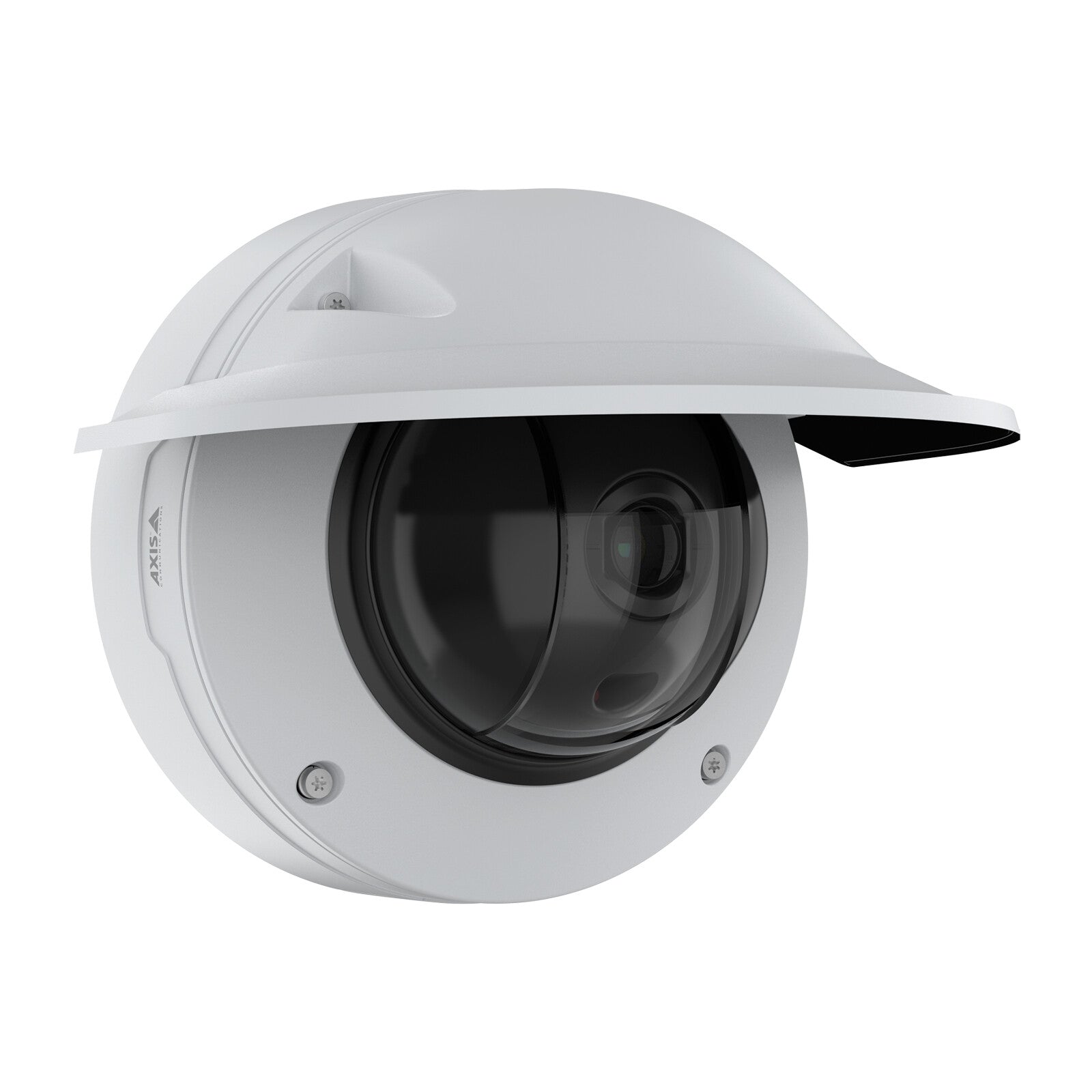

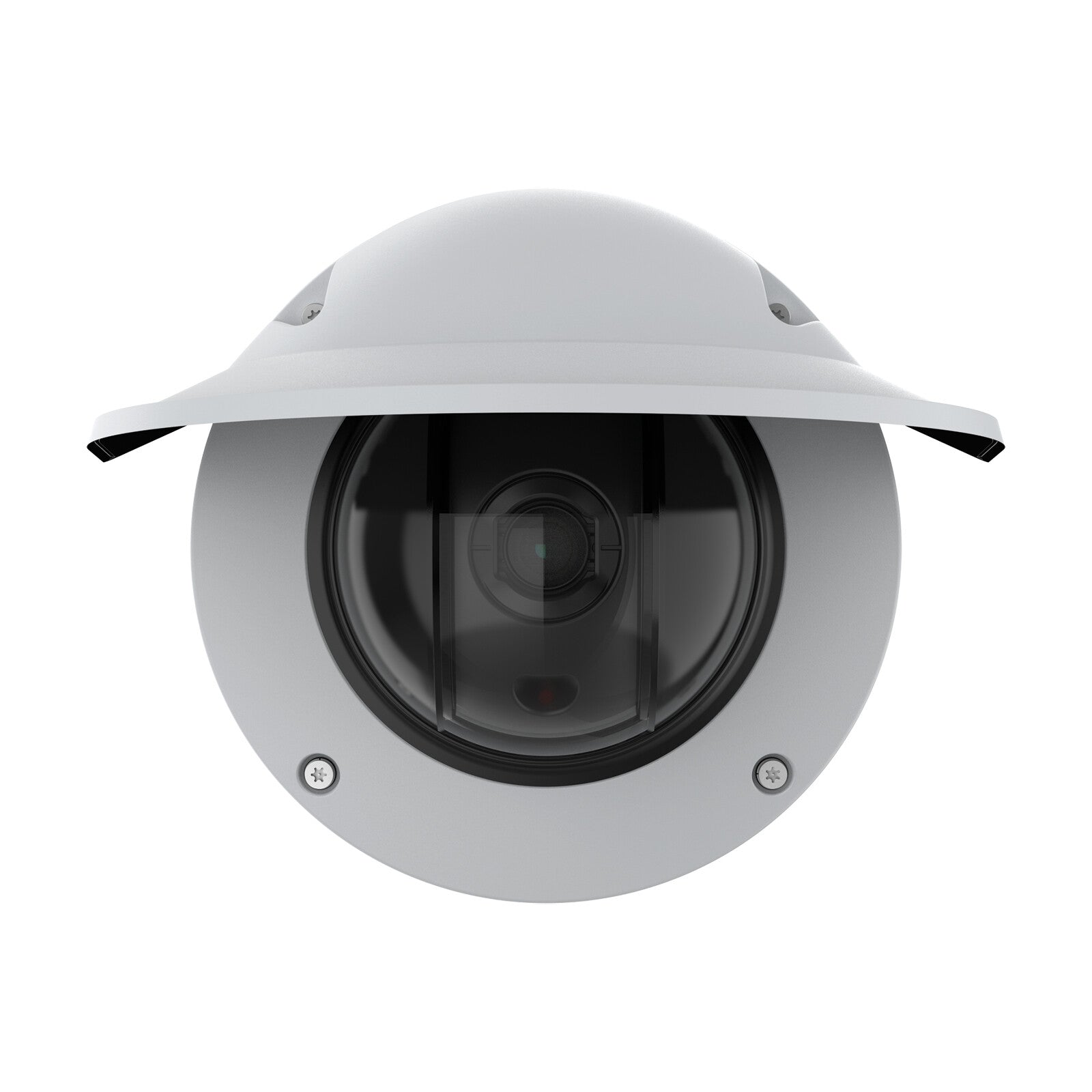

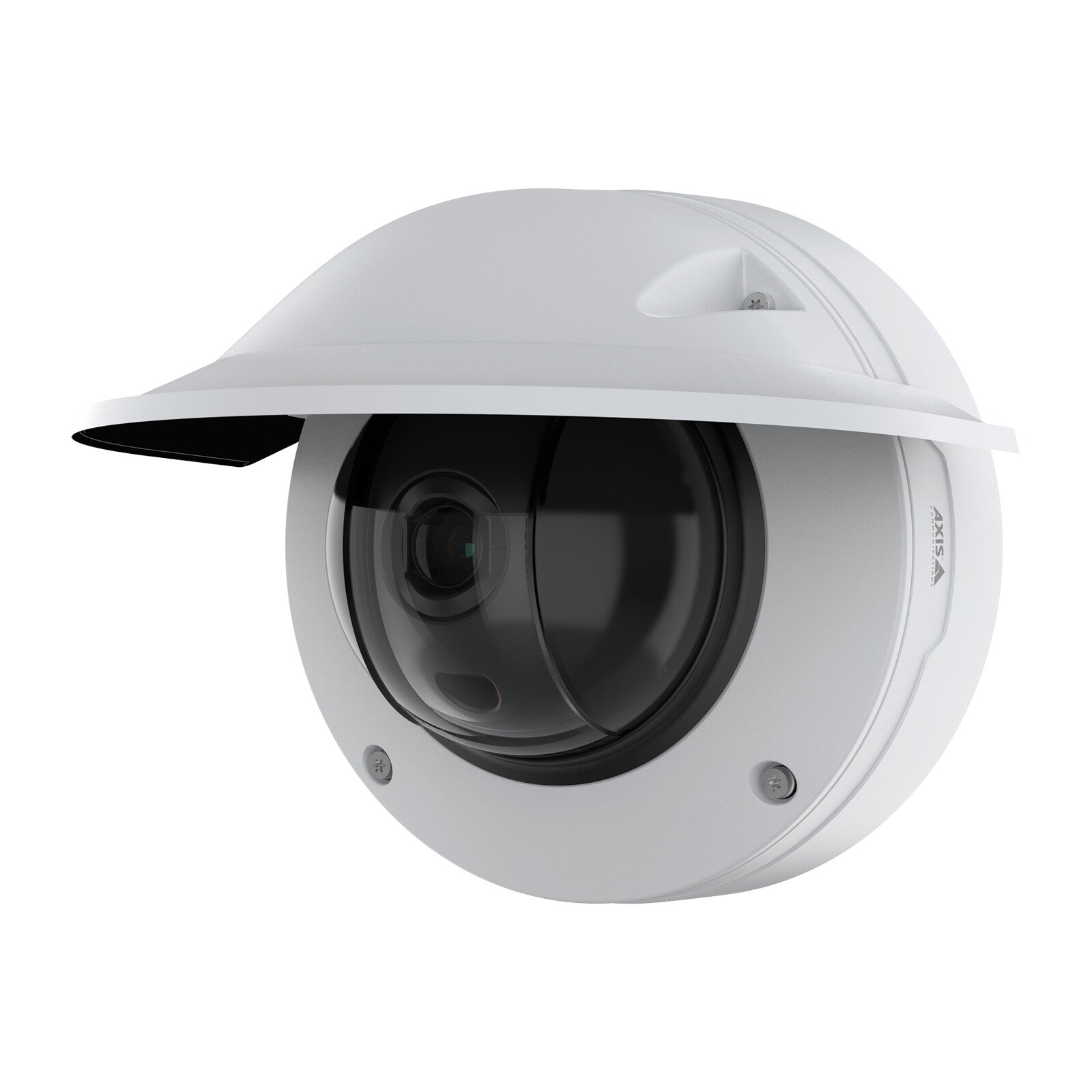

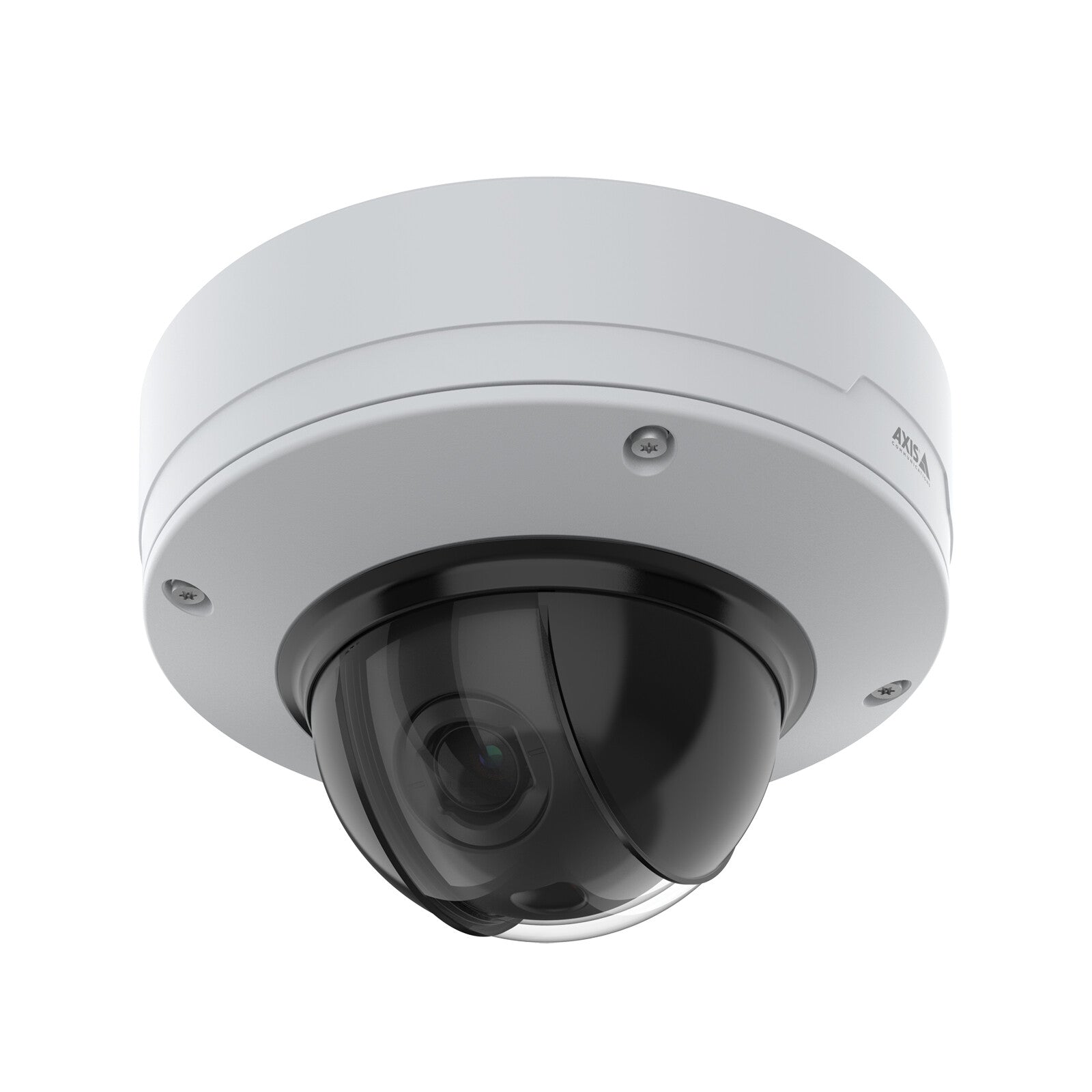

Axis 02224-001 security camera Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
- Built-in cybersecurity features; IR-shielded dome to prevent reflections; Outstanding image quality in 4 MP; Support for analytics with deep learning
With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).
| Performance |
| Certification |
CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035,EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,VCCI Class A |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Infrared (IR) cut-off filter |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10+ |
| International Protection (IP) code |
IP66 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/91000 – 1 s |
| Tilt angle range |
-43 – 80° |
| Angle of rotation |
175° |
| Minimum illumination |
0.08 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8″) |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Optical zoom |
2.6x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision |
Yes |
| Video |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Bit rate control |
Variable Bit Rate (VBR) |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Video recording |
Yes |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1512 pixels |
| Audio |
| Audio detection |
Yes |
| Built-in microphone |
Yes |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
| Network |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
2048 MB |
| Flash memory |
8194 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Digest authentication |
Yes |
| Security algorithms |
802.1x RADIUS |
| Alert notification type |
E-mail |
| Pixel counter |
Yes |
| Password protection |
Yes |
| Power |
| Power consumption (max) |
23 W |
| Power consumption (typical) |
9 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
10 – 100% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
-50 – 60 °C |
| Weight & dimensions |
| Weight |
2.1 kg |
| Diameter |
18.4 cm |
| Packaging content |
| Manual |
Yes |
| Drilling template included |
Yes |
| Mounting brackets included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
