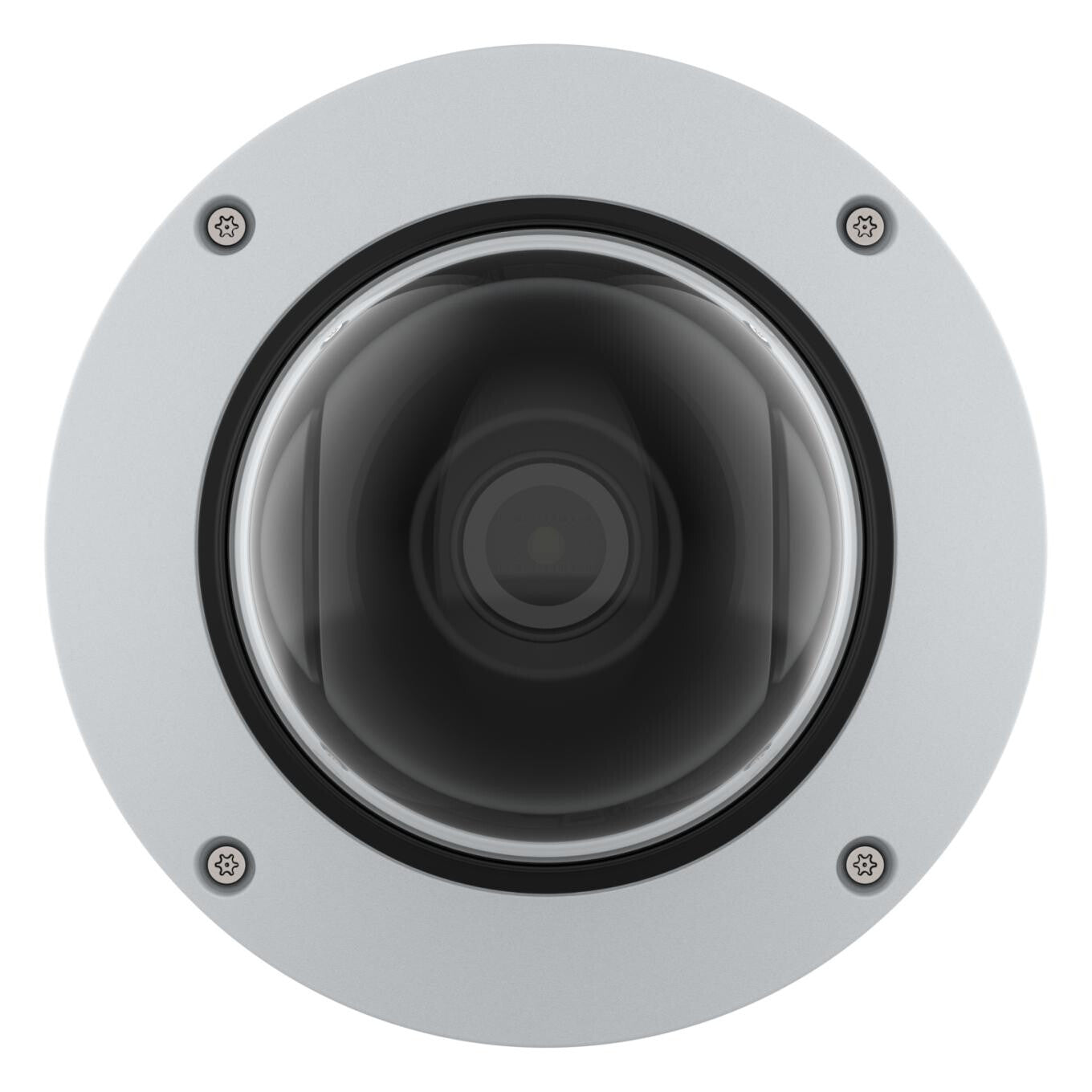

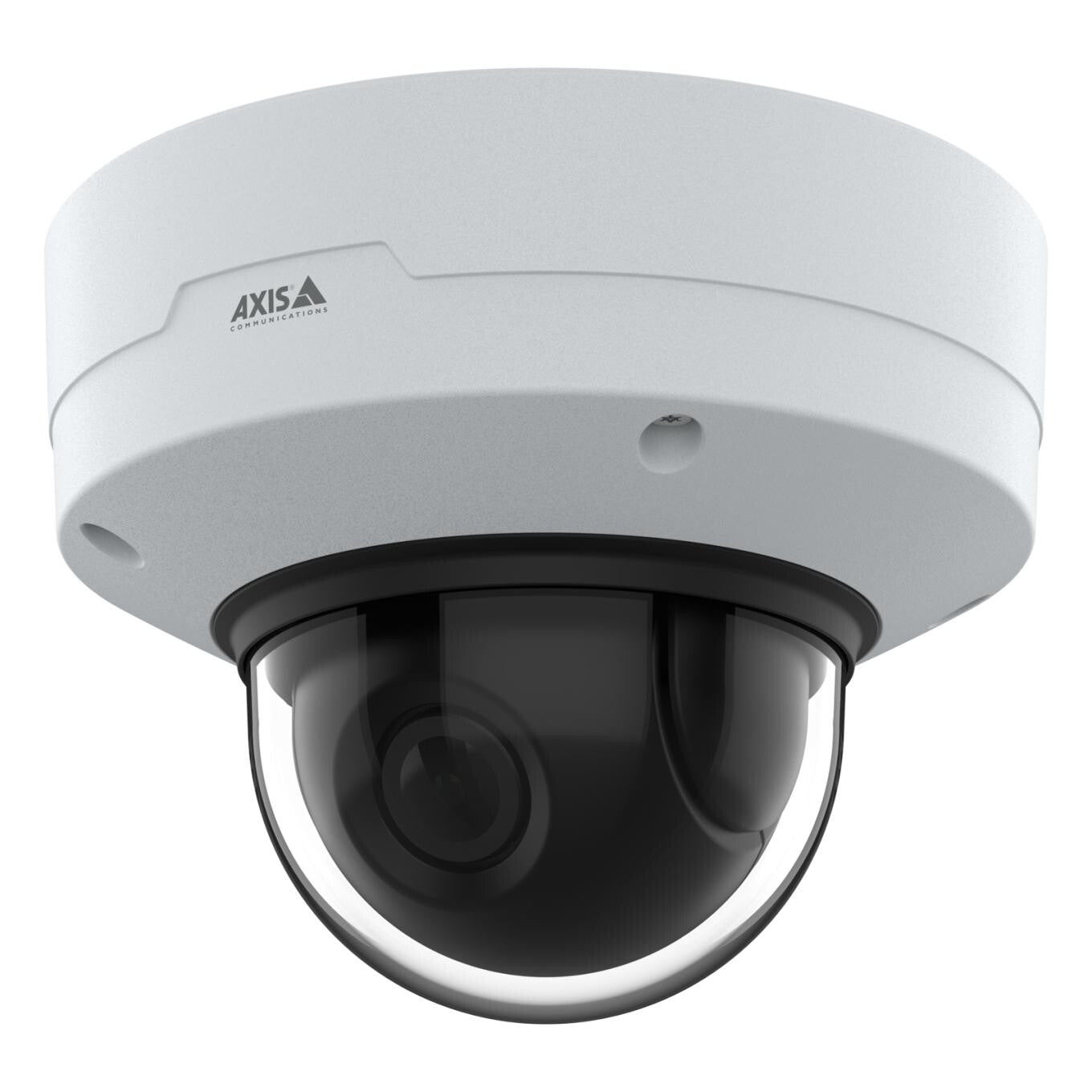

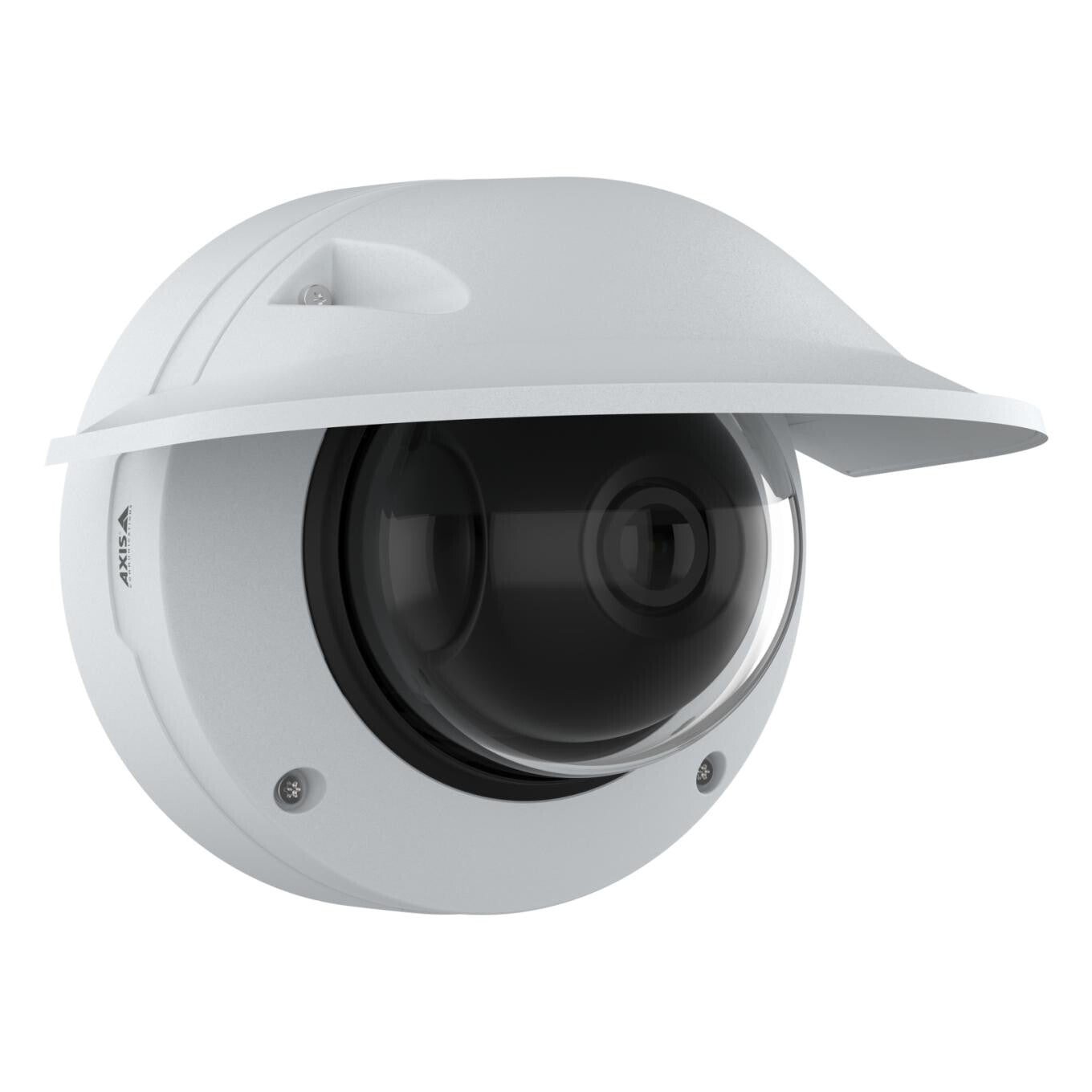

Axis 02616-001 security camera Dome IP security camera Outdoor 2688 x 1512 pixels Wall
- Outstanding image quality in 4 MP
- Remote adjustment of the camera angle
- Analytics with deep learning
- Electronic image stabilization
- Axis Edge Vault
This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it’s quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.
Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.
Outstanding image quality
AXIS Q3626-VE offers outstanding image quality and forensic details in 4 MP resolution—even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before—on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.
Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 18 |
| Processor model | ARTPEC-8 |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/91000 – 1 s |
| Pan range | 0 – 190° |
| Tilt angle range | -8 – 75° |
| Lens viewing angle, vertical | 56.2 – 29.6° |
| Lens viewing angle, horizontal | 103 – 52° |
| Minimum illumination | 0.06 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Maximum aperture number | 2.4 |
| Minimum aperture number | 1.5 |
| Focal length range | 4.3 – 8.6 mm |
| Night vision | |
|---|---|
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Video streaming | Yes |
| Frame rate | 60 fps |
| Supported graphics resolutions | 160 x 120, 160 x 90, 1280 x 800, 2688 x 1512 |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2688 x 1512 pixels |
| Audio | |
|---|---|
| Audio detection | Yes |
| Voice codecs | AGC |
| Sample rate | 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Alert notification type | |
| Password protection | Yes |
| Power | |
|---|---|
| DC output voltage | 10, 28 |
| Power consumption (max) | 25 W |
| Power consumption (typical) | 7 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -50 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Diameter | 18.4 cm |
| Height | 141 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting brackets included | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn’t contain | BFR, PVC |
| Warranty period | 5 year(s) |
