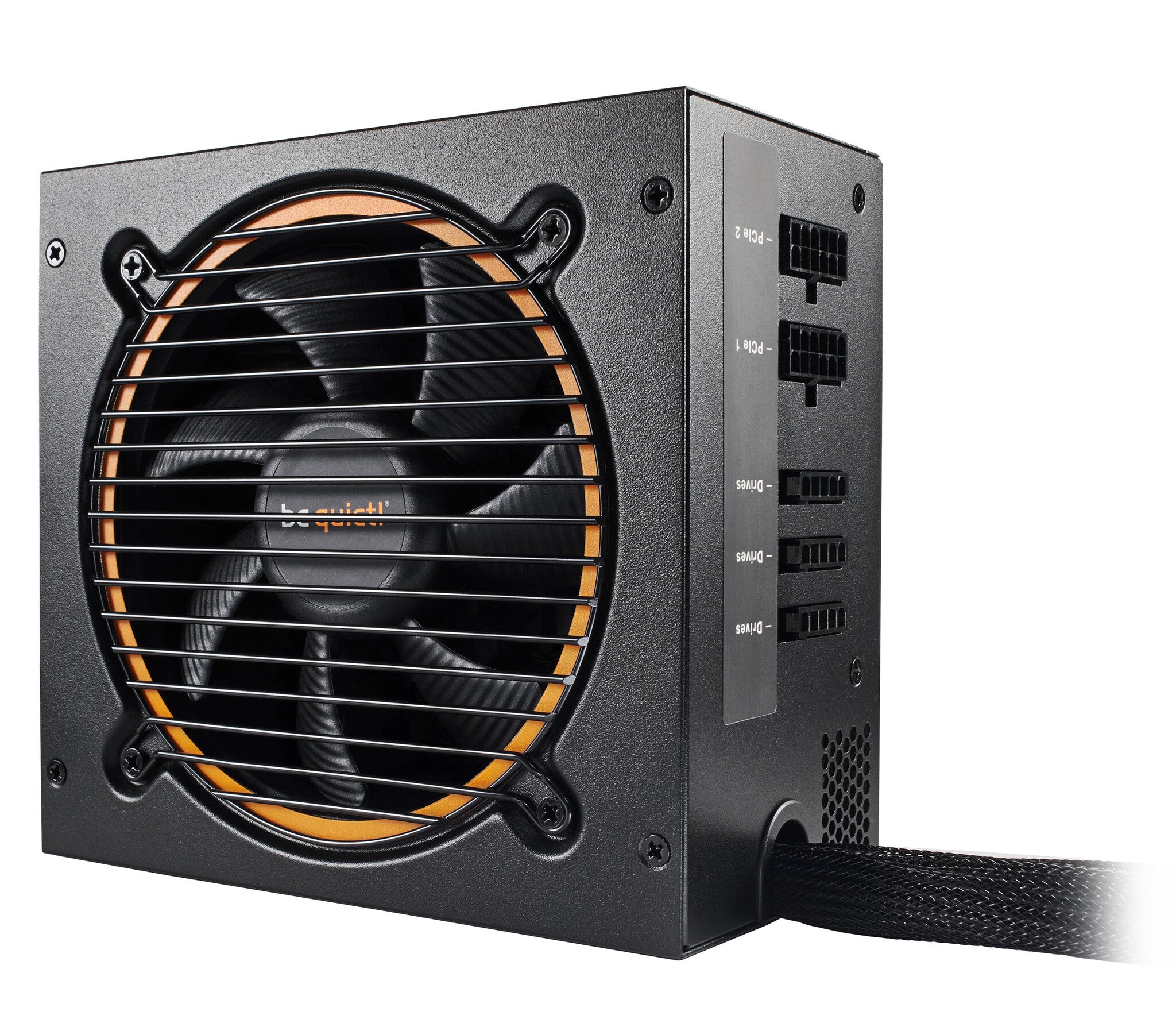

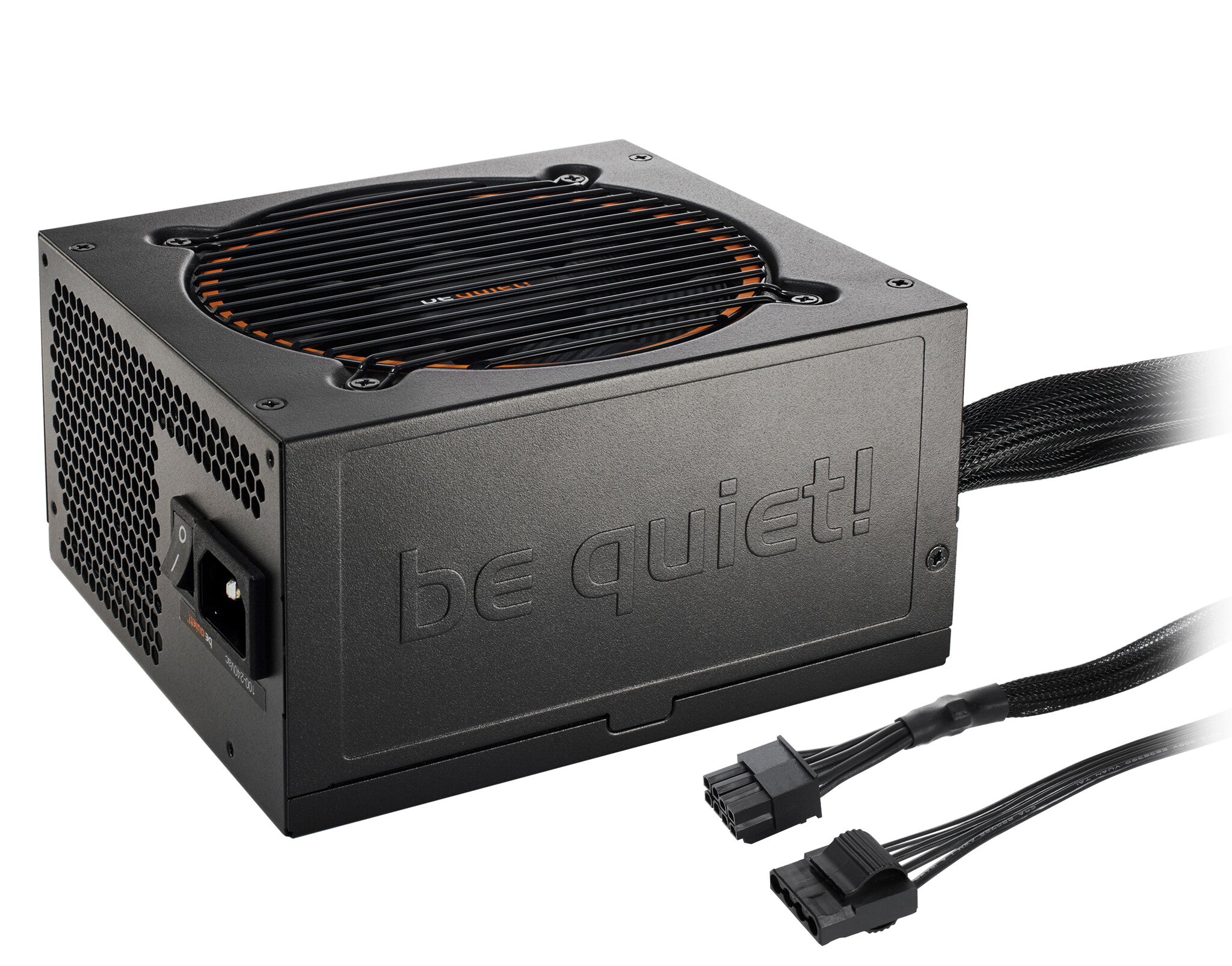

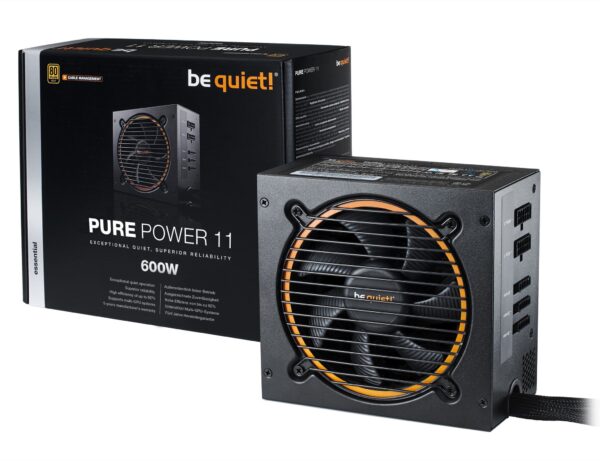

be quiet! Pure Power 11 600W CM power supply unit 20+4 pin ATX ATX Black
- 80PLUS® Gold efficiency (up to 92%)
- Two strong 12V-rails
- Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
- DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
- Silence-optimized 120mm be quiet! fan
- Multi-GPU support with four PCIe connectors
- Cable management with flat cables for PCIe connectors and drives
- Full suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star guidelines
- Supports all Intel® and AMD™ processors
- Product conception, design and quality control in Germany
Exceptionally Quiet, Superior Reliability, Great Value
Pure Power 11 600W CM offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, upgrading an existing PC, or building a multi-GPU gaming system, your build will benefit from this PSU that simply has the best combination of features at a very popular price.
POWER AND COMPATIBILITY FOR YOUR SYSTEM
The best combination of features and performance at a very popular price
Pure Power 11 CM offers 600W of continuous power with 2 independent 12V rails for signal stability and 4 PCI express connectors for powerful GPU systems. It is suited to very quiet systems, for upgrading or building multimedia or powerful GPU systems.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
Pure Power 11 CM 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.
INNOVATIVE TECHNOLOGIES
DC-to-DC, Active Clamp and Synchronous Rectifier
The use of Active Clamp and Synchronous Rectifier technologies provides very stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This ensures secure operation for next generation processors and graphics cards.
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

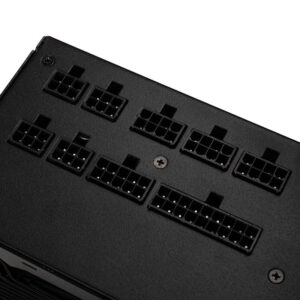

SEMI-MODULAR AND FLAT CABLES
Total convenience and design for your system

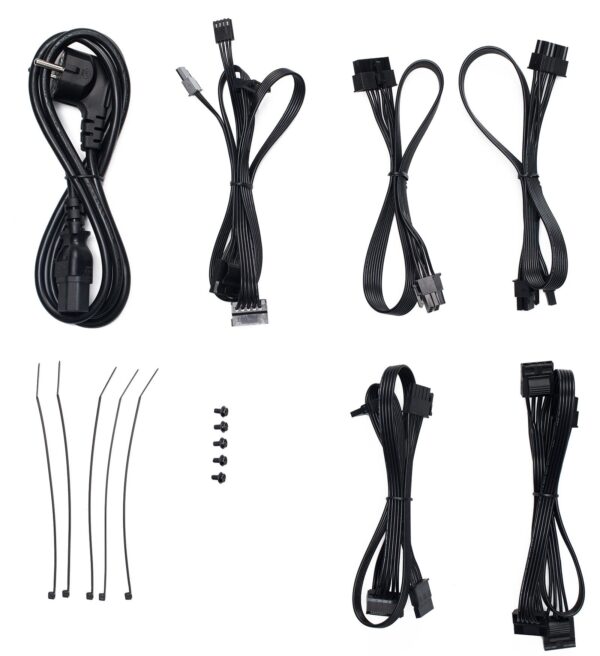

Pure Power 11 CM 600W is certainly eye-catching. The semi-modular cables are enhanced with premium black sleeves. The flat cables used for the PCI-express connection and drives simplify installation as well as keeping the system tidy.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 24 ms |
| Efficiency | 92% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 18 A |
| Max output current (+12V2) | 28 A |
| Max output current (+12V1) | 32 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 140 W |
| Combined power (+12V) | 576 W |
| Combined power (+3.3V) | 140 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.99 |
| Input current | 8 A |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Peak power | 650 W |
| Total power | 600 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Semi-Modular |
| Floppy disk drive connector | Yes |
| CPU power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (6+2 pin) | 4 |
| SATA power cable length | 500,650,800 mm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Bearing technology | Rifle |
| EPS version | 2.92 |
| ATX version | 2.4 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Product colour | Black |
| Certificates | |
|---|---|
| Certification | ErP, WEEE |
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Cables included | AC, SATA |
| Safety regulation & standards | |
|---|---|
| Safety | CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC |
| Weight & dimensions | |
|---|---|
| Weight | 2.08 kg |
| Height | 86 mm |
| Depth | 160 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.37 kg |
| Package height | 96 mm |
| Package depth | 240 mm |
| Package width | 210 mm |
| Manual | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case gross weight | 15.3 kg |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 241 mm |
| Master (outer) case length | 514 mm |
| Master (outer) case width | 326 mm |
| Other features | |
|---|---|
| Noise level (full-load mode, 100%) | 19.9 dB |
| Noise level (quiet mode, 50%) | 9.4 dB |
| Noise level (silent mode, | 9.2 dB |
| Cable ties included | Yes |
| Screws included | Yes |
