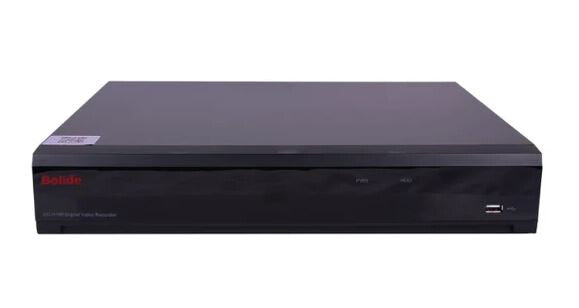

Bolide SVR9532H digital video recorder (DVR) Black
- 1920 x 1080 pixels Channels quantity: 32 channels
- Video motion detection
- Ethernet LAN
- 24 TB
- Power supply type: DC
- Black
| Performance |
| Product colour |
Black |
| Channels quantity |
32 channels |
| Input bandwidth |
32 Mbit/s |
| Operating system installed |
Embedded LINUX |
| Audio input channels |
4.0 channels |
| Audio output channels |
1.0 channels |
| Playback resolutions supported |
5MP (20fps)3MP(18FPS)1080P/720P/960H5MP/4MP/3MP1080P/720P |
| Total bandwidth |
128 Mbit/s |
| Video motion detection |
Yes |
| Video capturing speed (PAL) |
25 fps |
| Video capturing speed (NTSC) |
30 fps |
| Video compression formats |
H.264, H.265 |
| Maximum video resolution |
1920 x 1080 pixels |
| Ports & interfaces |
| RS-485 ports |
1 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| HDMI ports quantity |
1 |
| BNC input ports |
24 |
| Alarm input channels |
8 |
| Alarm output channels |
1 |
| Video input channels |
40 channels |
| Network |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Hard drive |
| Maximum HDD capacity |
24 TB |
| Number of HDDs supported |
2 |
| Power |
| DC current (max) |
5 A |
| DC voltage |
12 V |
| Power supply type |
DC |
| Weight & dimensions |
| Height |
66 mm |
| Depth |
378 mm |
| Width |
326 mm |
| Operational conditions |
| Operating temperature (T-T) |
-10 – 50 °C |
| Operating relative humidity (H-H) |
10 – 90% |
