Brother TD-2320DSA300 label printer Direct thermal 300 x 300 DPI 152.4 mm/sec Wired Ethernet LAN
- Direct thermal
- 300 x 300 DPI
- Maximum printing width: 5.9 cm Print speed: 152.4 mm/sec
- Built-in barcodes: AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93
- Connectivity technology: Wired
- USB port Ethernet LAN
- 8.89 cm (3.5″) Colour display
- 1.33 kg
The professional, high-resolution 2″ desktop network label printer with 3.5″ colour touch screen display.
Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA300 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA300 works as a standalone printing solution with its 3.5″ colour touch screen display and keyboard.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.
Complete print solution
Optional accessories to suit your business needs.
Accessories include battery (PA-BT-004), cutter (PA-CU-004) or label peeler (PA-LP-002).
Professional print quality
Print in high resolution up to 300dpi for any professional setting.
Space saving design
A compact 2 inch label printer, designed to fit on most worksurfaces without compromising on working space.
Cut or peel
A Cutter or peeler are the perfect accessories for adding efficiencies to your business.
Integrated USB host
A USB-host port is built-in as standard, enabling a barcode reader or weighing scales to be connected. Barcodes are scanned to create print information.
Using pre-defined templates, your information is printed on to labels.

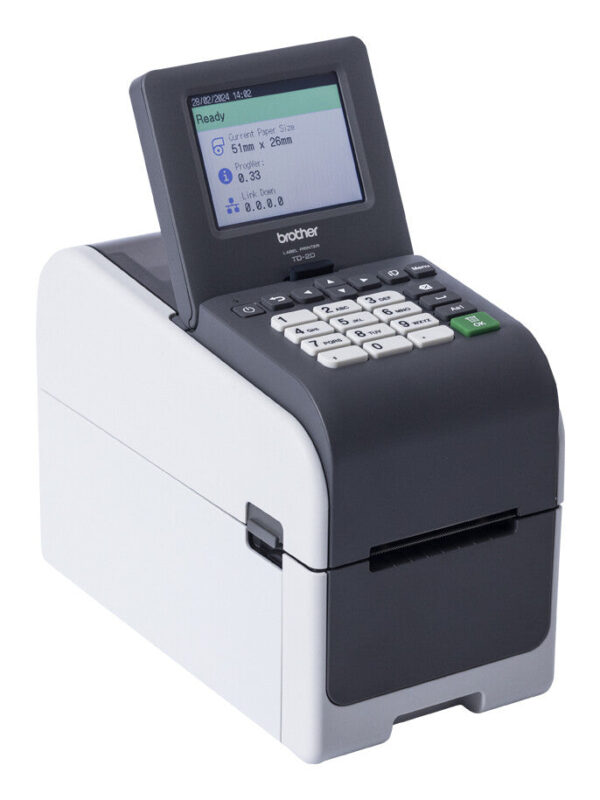

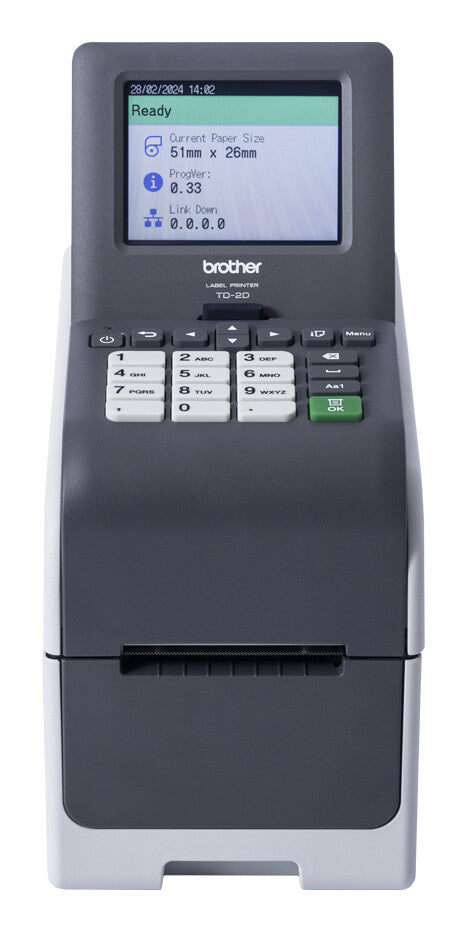

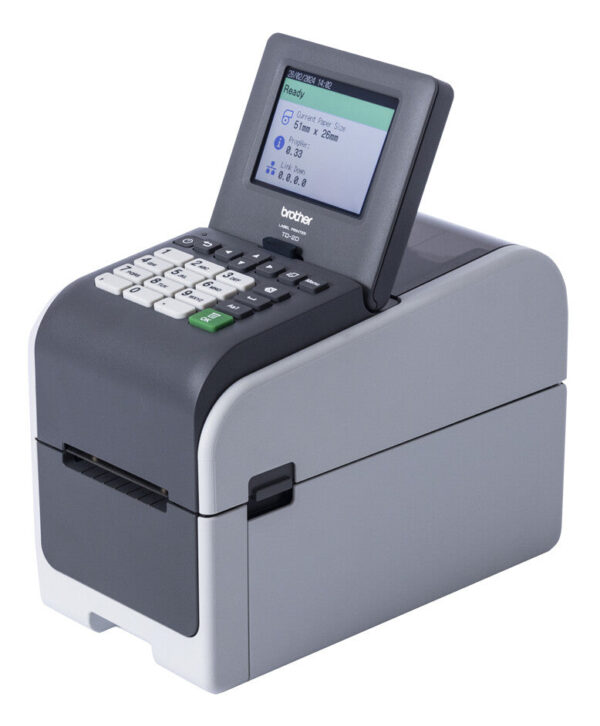

3.5″ Colour touch screen
A user-friendly colour touch screen display allows for stand alone printing and on-the-go editing of templates.
| Printing | |
|---|---|
| Maximum printing width | 5.9 cm |
| Print speed | 152.4 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Colour | No |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum label length | 3 m |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Built-in barcodes | AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93 |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Design | |
|---|---|
| Control type | Buttons, Touch |
| Colour display | Yes |
| Display diagonal | 8.89 cm (3.5″) |
| Built-in display | Yes |
| Product colour | Black, Grey |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mobile operating systems supported | Android, iOS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.33 kg |
| Height | 172 mm |
| Depth | 110 mm |
| Width | 215 mm |
| Packaging content | |
|---|---|
| Cables included | AC, USB |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
