Cooler Master MasterBox NR600 Midi Tower Black
- Minimalistic Design
- Seamless Tempered Glass
- Ample Storage Support
- Headset Jack
- Fan Support
- Radiator Support
- Component Clearances
MASTERBOX NR600 WITHOUT ODD
FORM & FUNCTION STEAMLINED
MINIMALISTIC DESIGN
The MasterBox NR600 is a pure and simple design that is focused on airflow performance. A single-layer, fine mesh makes up the entire front panel, achieving efficient airflow while also acting as a dust filter.

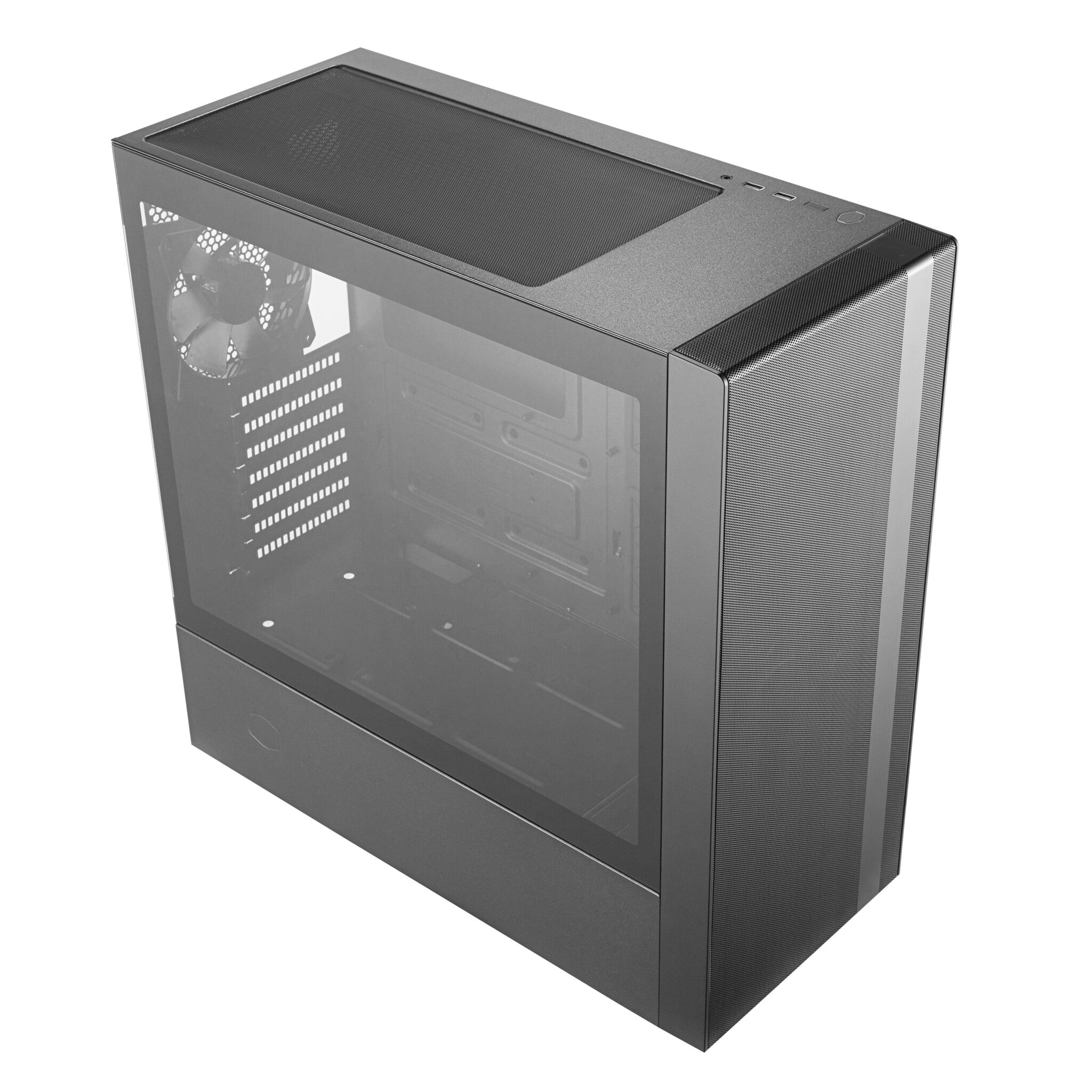

SEAMLESS TEMPERED GLASS
The tempered glass side panel sits completely flush against the chassis, mounted securely and discreetly by a system of tabs and thumbscrews.
AMPLE STORAGE SUPPORT
A total of 5 x 2.5″ and 4 x 3.5″ drives can be mounted using a tool-less system. Storage can be mounted on the PSU shroud, behind the motherboard tray, and in the HDD cage.
HEADSET JACK
The single 4 pole headset jack features both Audio and Microphone capabilities simultaneously so that separate jacks are not needed.
FAN SUPPORT
Front: 140mm x2 / 120mm x3
Top: 140mm x2 / 120mm x2
Rear: 120mm x1
*non ODD version
RADIATOR SUPPORT
Front: 360/280/240/140/120mm
Top: 120/240mm
Rear: 120mm
*non ODD version
| Design | |
|---|---|
| Maximum PSU length | 18 cm |
| Maximum graphics card length | 41 cm |
| Maximum CPU cooler height | 16.6 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5″ bays | 5 |
| Number of 3.5″ bays | 4 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 140,240,280,360 mm |
| Liquid cooling capability | Yes |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| General | |
|---|---|
| Product family | MasterBox |
| Weight & dimensions | |
|---|---|
| Weight | 6.57 kg |
| Height | 473 mm |
| Depth | 478 mm |
| Width | 209 mm |
| Packaging data | |
|---|---|
| Package weight | 7.86 kg |
| Package height | 552 mm |
| Package depth | 550 mm |
| Package width | 290 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
