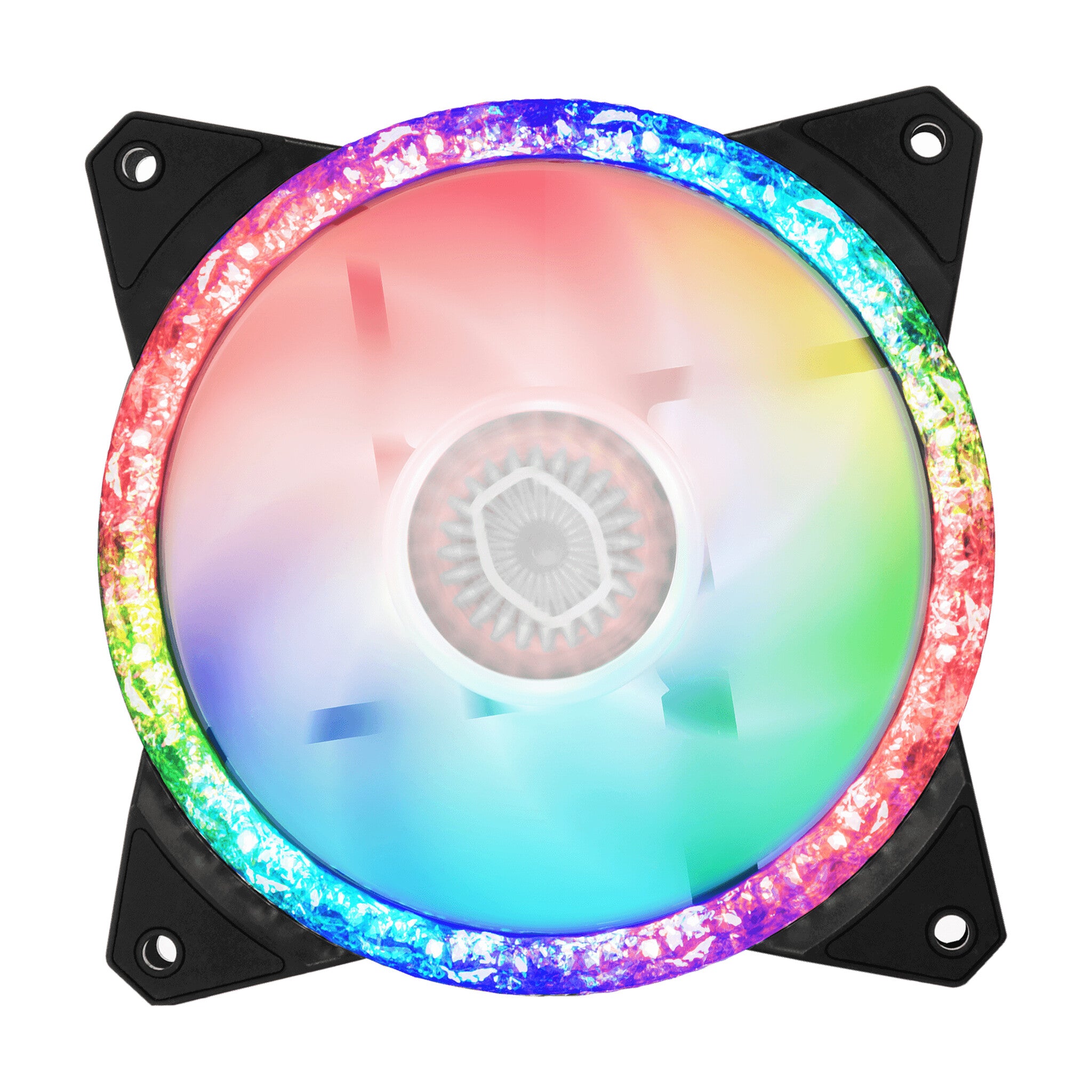

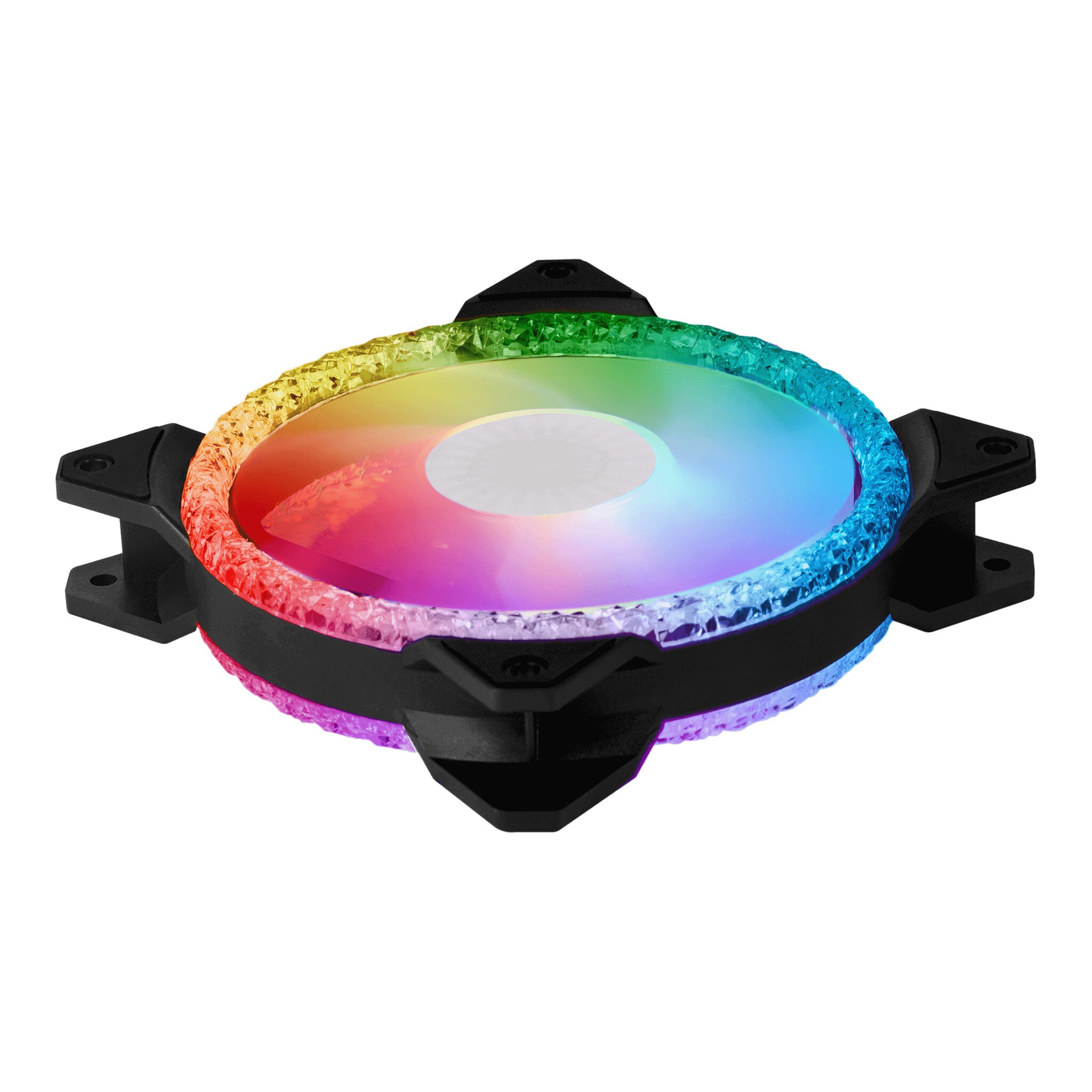

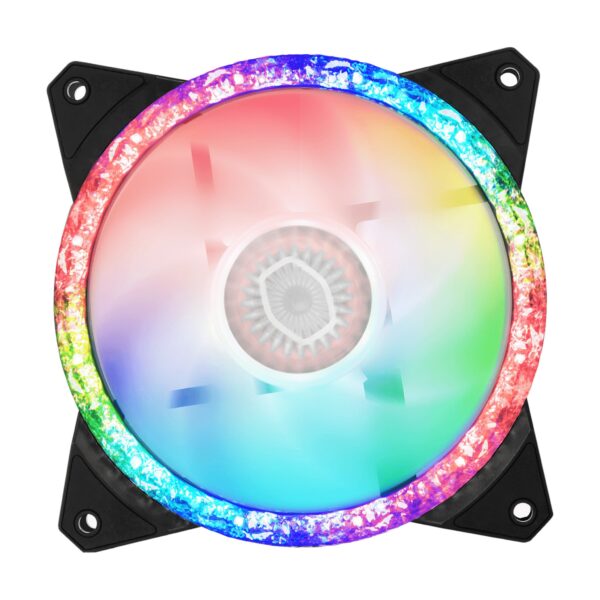

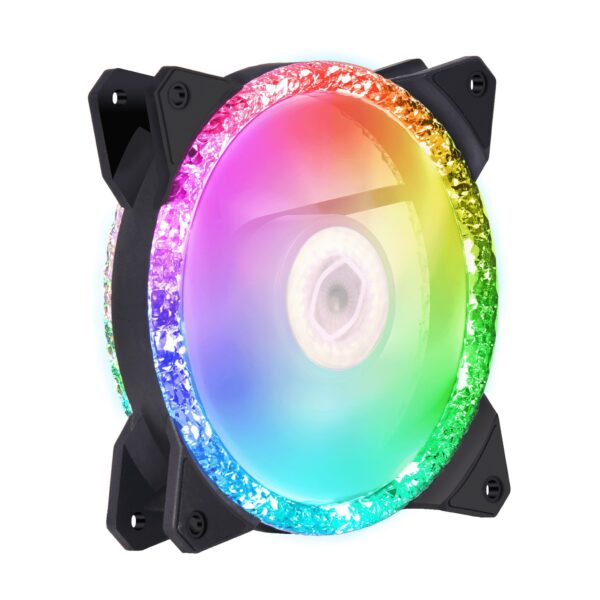

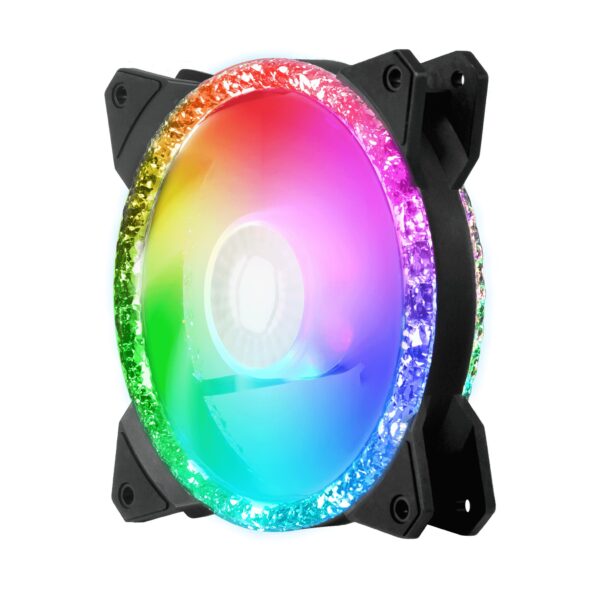

Cooler Master MasterFan MF120 Prismatic 3 IN 1 Computer case Fan 12 cm Black 3 pc(s)
- Radiant Crystalline Light
- Tri-Loop Addressable Gen 2 RGB
- Silent Driver IC
- Optimized Air Flow
- Certified Compatibility
Radiant Crystalline Lighting
Cooler Master is introducing a brand new product to the MasterFan family – MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.
The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.
Tri-loop Addressable GEN 2 RGB
24 Addressable Gen 2 RGB LEDs are uniformly arranged around the crystalized loop design with an additional 6 Addressable LEDs on the fan hub.
Radiant Crystalline Lighting Effect
Unique crystallized loop design on both sides of the fan provide maximum light dispersion of the addressable RGB.
Silent Driver Ic And Cooling Technology
Silent Driver IC with noise reduction technology offers smooth rotation reduced vibration and fan noise delivering quiet performance even at the highest loads.
Highly Optimized P/Q Performance For All Applications
The MF120 Prismatic features redesigned fan blades producing a pressure to airflow (P/Q) curve that exceeds previous generation performance.
Addressable GEN 2 RGB Controller
Included Addressable Gen 2 RGB Controller works with Cooler Master’s MasterPlus+ software customizing each individual LED on color, effect, brightness and more – all from an intuitive, convenient interface.
Secure Connection
Includes Addressable RGB connector clips to ensure a secure connection
Crystal Clear Performance
Cooler Master is introducing a brand new product to the MasterFan family – MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.
Small Simple Versatile
Granting you the versatility to easily personalize your devices delivered to you in a small compact size.
| Performance | |
|---|---|
| Quantity per pack | 3 pc(s) |
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.91 mmH2O |
| Maximum airflow | 55 cfm |
| Noise level (high speed) | 27 dB |
| Noise level (low speed) | 8 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 650 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Number of LEDs | 24 |
| Illumination LED | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Safety current | 0.37 Ah |
| LED voltage | 5 V |
| Rated current | 0.12 A |
| Rated voltage | 12 V |
| Power consumption (typical) | 1.44 W |
| Weight & dimensions | |
|---|---|
| Package weight | 624 g |
| Package height | 198 mm |
| Package depth | 133 mm |
| Package width | 88 mm |
| Fan weight | 153 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 506 g |
| General | |
|---|---|
| Product family | MasterFan |
| Packaging content | |
|---|---|
| LED controller interface | 3-pin |
| LED controller | Yes |
| Other features | |
|---|---|
| Mean time to failure (MTTF) | 160000 h |
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 303 mm |
| Master (outer) case length | 465 mm |
| Master (outer) case width | 363 mm |
| Harmonized System (HS) code | 84733080 |
