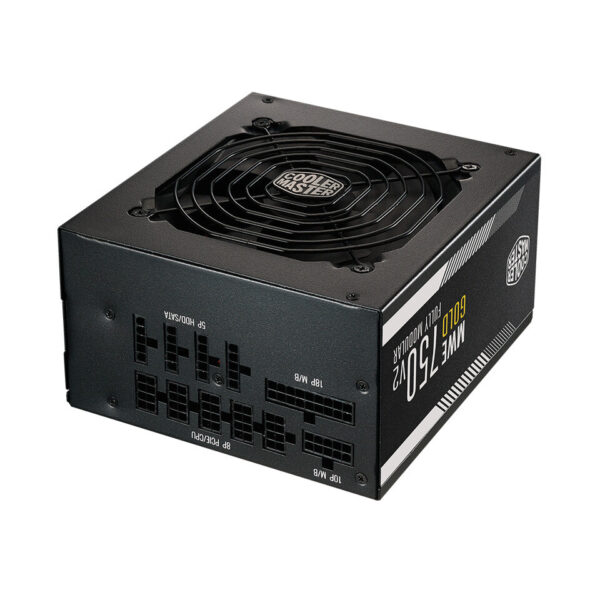

Cooler Master MWE Gold 750 V2 ATX 3.1 power supply unit 750 W 24-pin ATX Black
- ATX 3.1 support
- A 90-degree 12V-2×6 adapter cable
- High temperature resilience
- High-quality Japanese capacitors
- Fully modular cabling
Level Up Your Power
Cooler Master presents the MWE Gold V2 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
ATX 3.1 Support & a Durable 12V-2×6 Adapter Cable
Includes ATX 3.1 support and a 90-degree 12V-2×6 PCIe 5.1 connector with higher electrical durability and three 8-pin connectors with improved safety, capable of bringing up to 600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
Certified Efficiency
The MWE Gold V2 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
High Temperature Resilience
A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.
Three 8-pin Connectors
Up to 600W of power is split between three 8-pin connectors, providing enhanced safety.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 – 150 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 100 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 10 – 5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 740,620,500,860 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 500,620,740,860 mm |
| Number of SATA power connectors | 12 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HDB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Certification | TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS,UKCA |
| Weight & dimensions | |
|---|---|
| Weight | 2.62 kg |
| Height | 86 mm |
| Depth | 160 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.9 kg |
| Package height | 120 mm |
| Package depth | 310 mm |
| Package width | 194 mm |
| Technical details | |
|---|---|
| Sustainability certificates | ErP |
