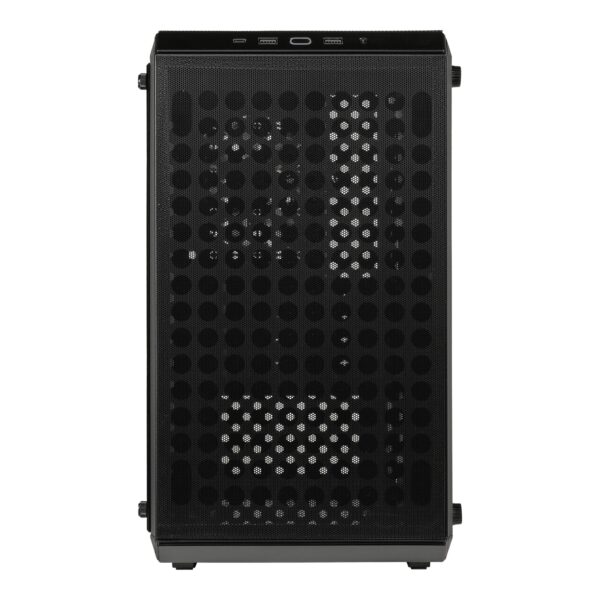

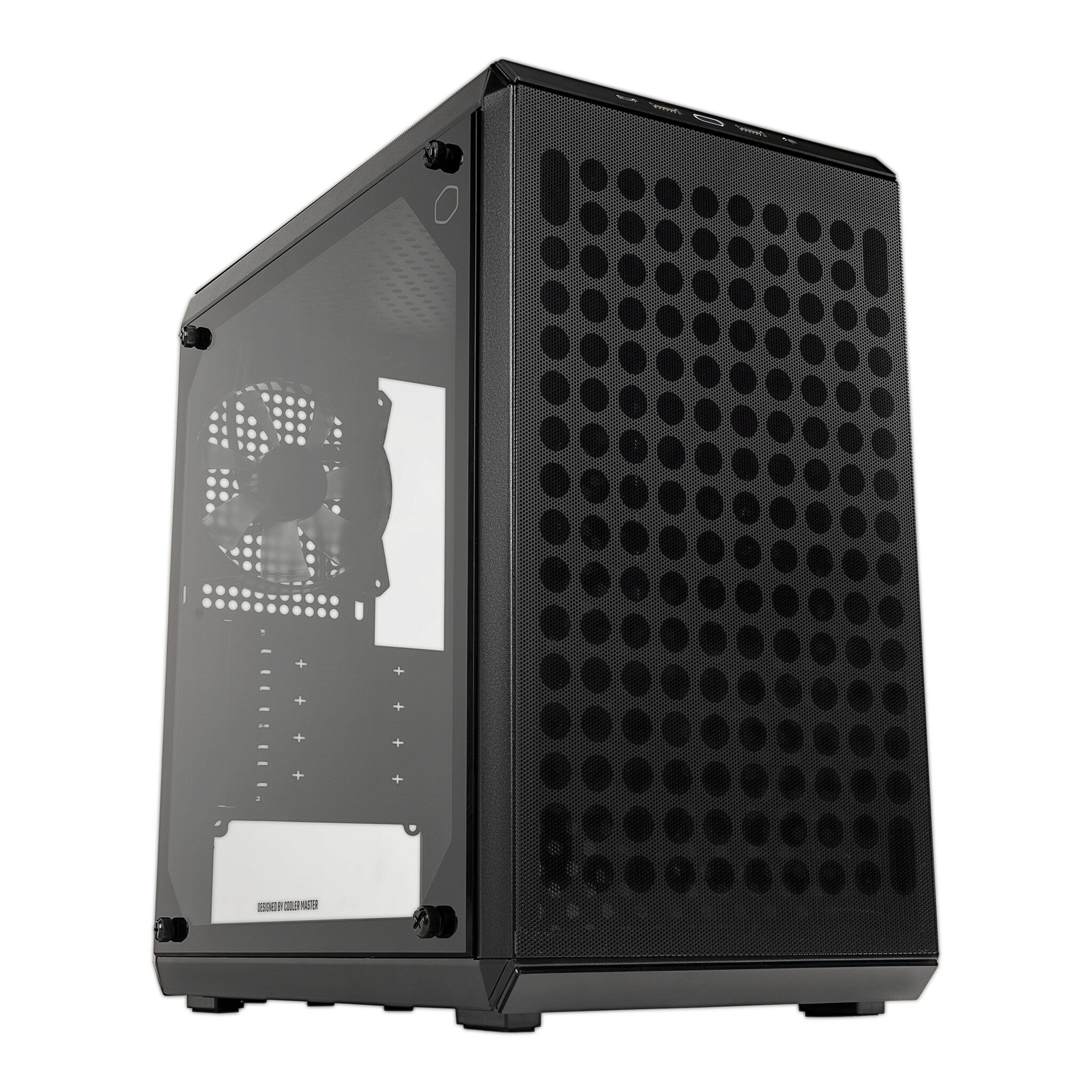

Cooler Master Q300L V2 Mini Tower Black, Transparent
- High Flexibility for System Building
- Minimized Dimension with ATX PSU Support
- Redesigned Patterned Dust Filter
- Clean Routing Space
- Excellent Thermal Performance
- Edge-to-Edge Temper-Glass Side Panel
REFRESH YOUR STYLE
Redesigned Magnetic Dust Filter
The redesigned dust filter keeps your PC breathing easy with a refreshed patterned design.
USB 3.2 GEN2x2 (20Gbps) SUPPORTED
USB 3.2 Gen 2×2 Type C port built into the I/O panel with data transfer speeds up to 20Gbps.
Excellent Thermal Performance
The open design of the perforated front, top, and bottom guarantees excellent thermal performance.
Clean Routing Space
28mm of space behind the motherboard tray allow for easy and hidden cable management.
Multiple Positioning Options
The case can be put in vertical or horizonal position.

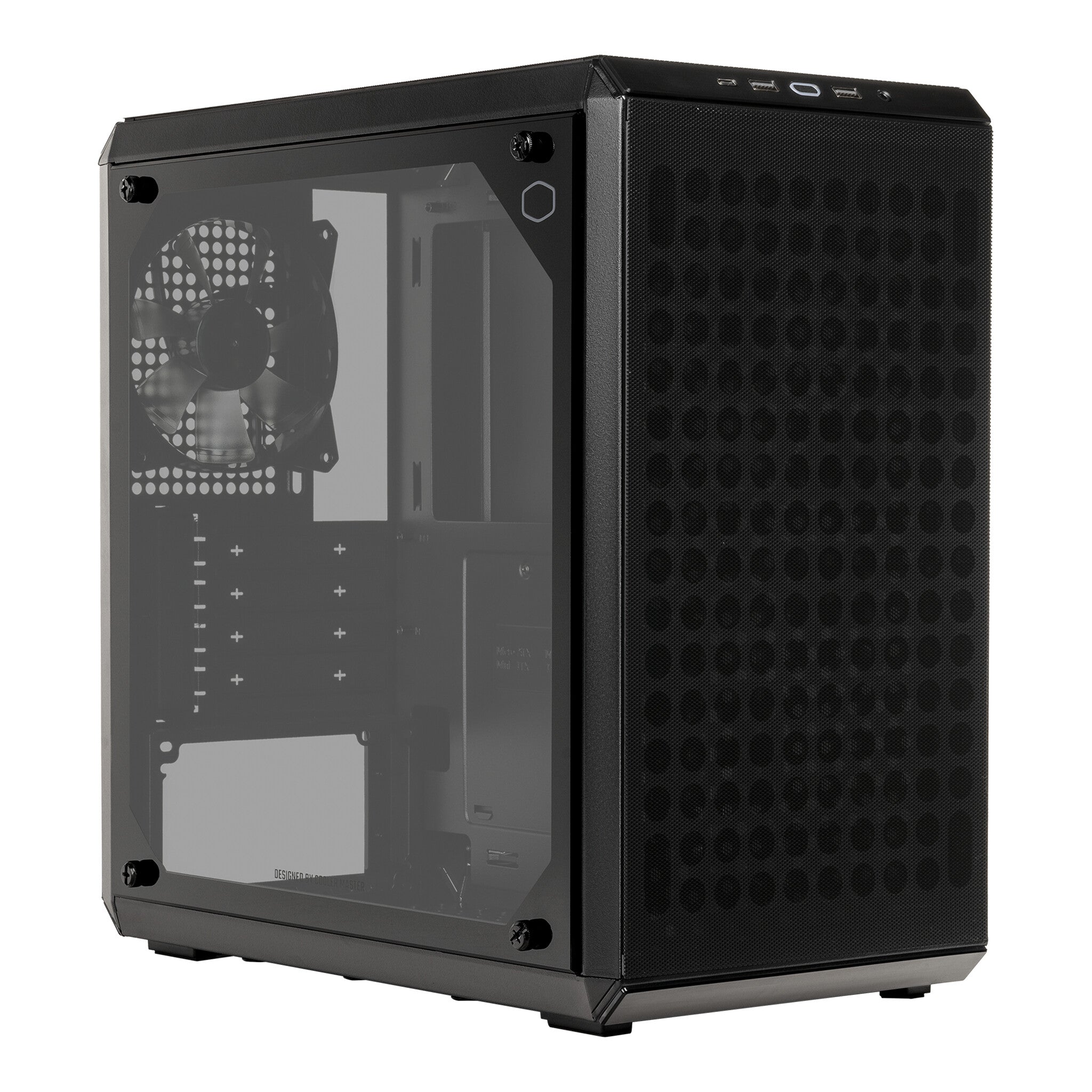

Edge To Edge Tempered Glass Side Panel
Show off your build through the 4mm-thick tempered glass side panel, easily installed with thumbscrews.
Fan and Radiator Support
The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don’t have to compromise on performance.
Components Clearance
The Q300L V2 case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.
| Design | |
|---|---|
| Maximum PSU length | 16 cm |
| Maximum graphics card length | 36 cm |
| Maximum CPU cooler height | 15.9 cm |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of expansion slots | 4 |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 1 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black, Transparent |
| Material | Plastic, Steel, Tempered glass |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,240 mm |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 2 |
| Storage | |
|---|---|
| SSD form factor | 2.5″ |
| Supported HDD sizes | 3.5″ |
| Weight & dimensions | |
|---|---|
| Weight | 4.35 kg |
| Height | 383 mm |
| Depth | 387 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Package weight | 5.3 kg |
| Package height | 461 mm |
| Package depth | 435 mm |
| Package width | 276 mm |
| Other features | |
|---|---|
| Volume | 29 L |
