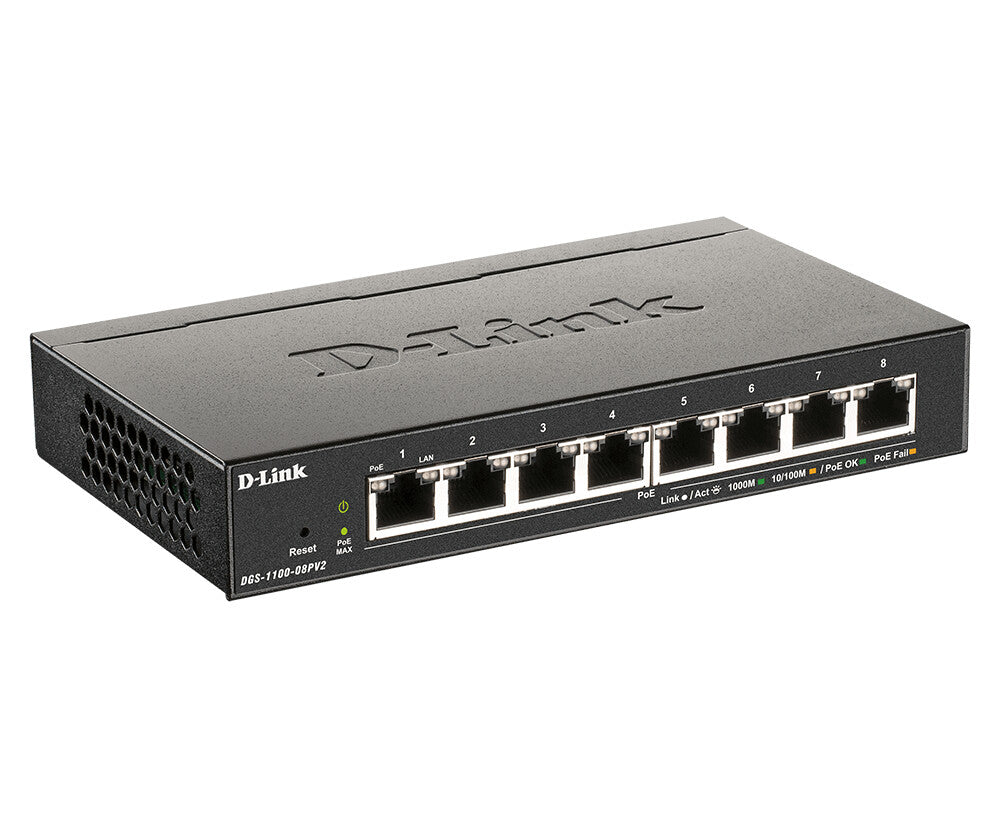

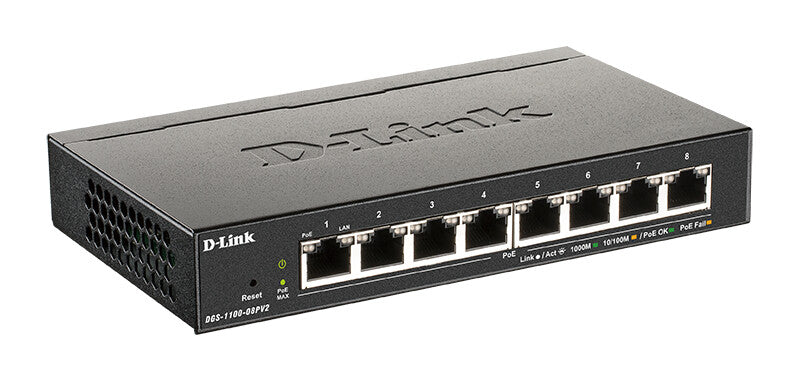

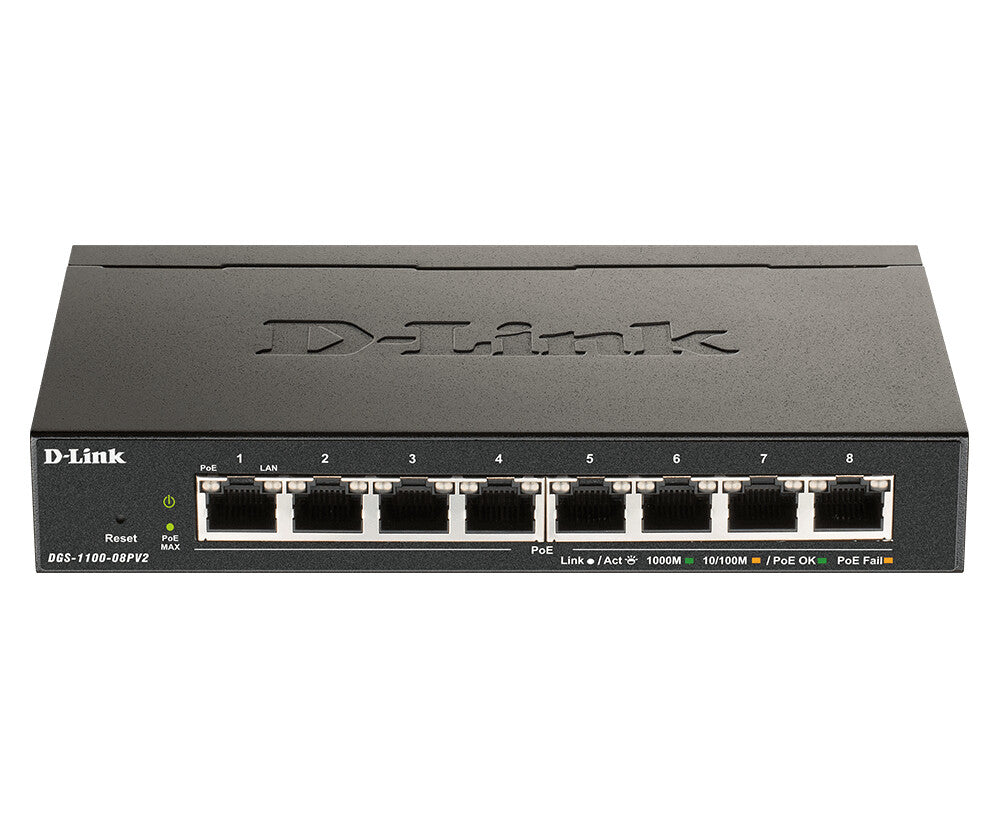

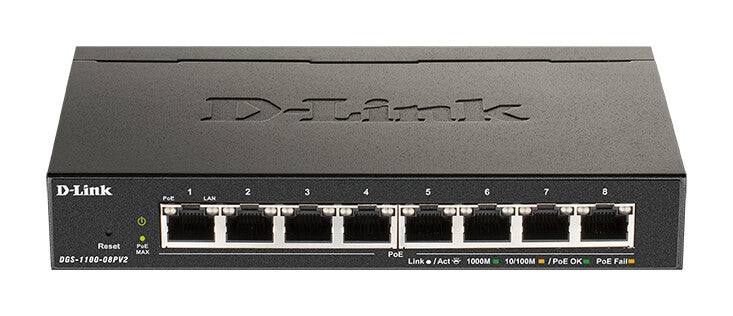

D-Link DGS-1100-08PV2/B network switch
- 8 x 10/100/1000BASE-T PoE ports
- Supports IEEE 802.3at PoE
- 64W PoE power budget
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Powerful and flexible networking solution for small, medium, and enterprise businesses.
Simple. Easy. Smart
WebUI Web UI
Easy to use web interface to access management features.
Static Routing VLANs
Segment your network into VLANs.
Surveillance mode Surveillance Mode Interface
Get a snapshot of your security topology in an instant.
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Full PoE Support
The DGS-1100-08PV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 64W.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Half duplex | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of queues | 4 |
| Forwarding rate | 11.9 Mpps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4096 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 786841 h |
| Fanless | Yes |
| Flash memory | 2 MB |
| Power | |
|---|---|
| Power consumption (max) | 77.9 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 265.85 BTU/h |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 430 g |
| Height | 28.6 mm |
| Depth | 97.8 mm |
| Width | 171 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Certification | FCC Class B, CE Class B, VCCI Class B, BSMIcUL, CE LVD, CB, BSMI |
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
