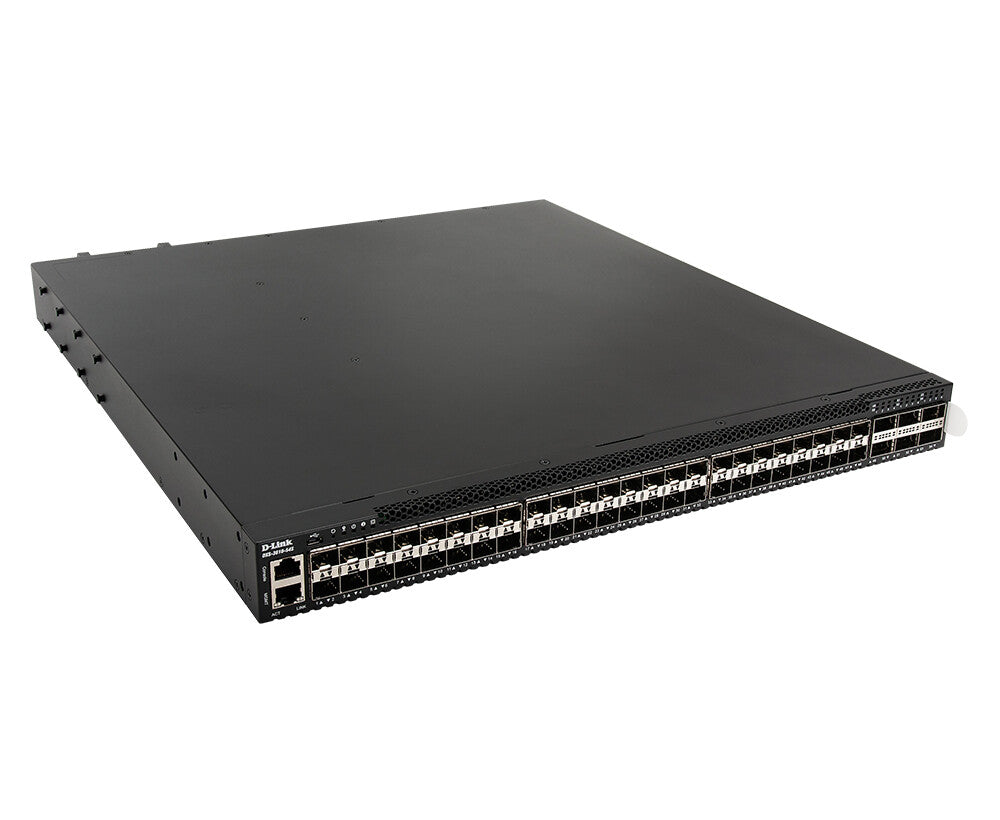

D-Link DXS-3610-54S Managed L3 1U Black
- High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP+ ports
- Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
- OpenFlow 1.3 compliance for SDN-enabled network compatibility
- Modular PSU (1+1) and fan (N+1) with load sharing capabilities
- Switch locator LED and ID tag for maintenance convenience
- Upgradable license for full L3 and MPLS applications
OpenFlow Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy

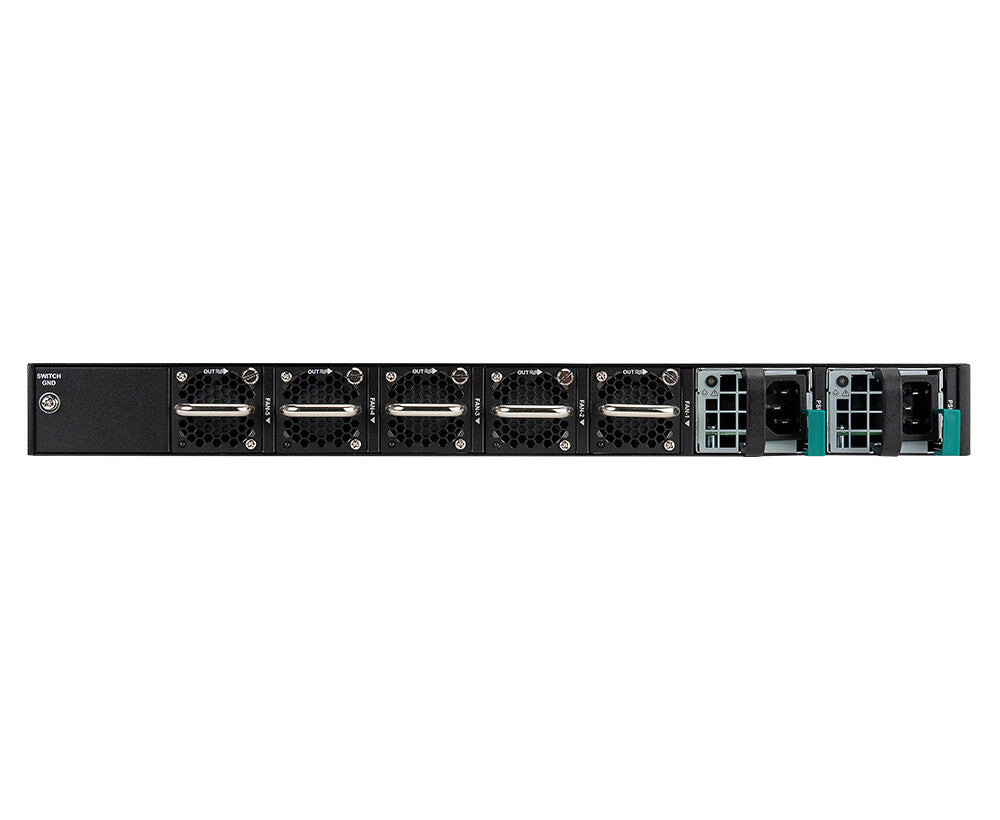

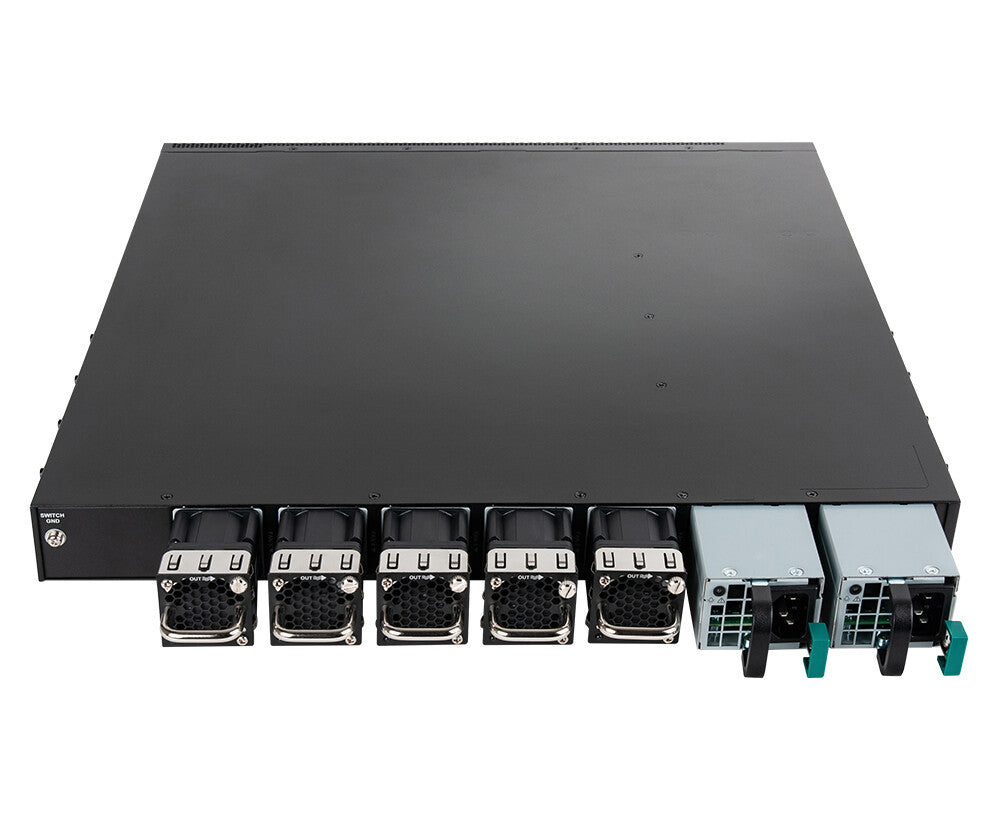

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| QSFP28 ports quantity | 6 |
| Console port | RJ-45 |
| SFP+ module slots quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x |
| Data transmission | |
|---|---|
| Packet buffer memory | 32 MB |
| Jumbo frames | 9436 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of queues | 8 |
| Forwarding rate | 1607.04 Mpps |
| Switching capacity | 2211.84 Gbit/s |
| MAC address table | 294912 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC, CE, C-Tick, IC, VCCI |
| Number of fans | 5 fan(s) |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 94262 h |
| Noise level | 79.4 dB |
| Virtual stacking (units) | 32 |
| Physical stacking (units) | 12 |
| Power | |
|---|---|
| Power consumption (max) | 320.8 W |
| Power consumption (typical) | 120.6 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 240 V |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 1083 BTU/h |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 9.8 kg |
| Height | 43.5 mm |
| Depth | 487.4 mm |
| Width | 441 mm |
| Certificates | |
|---|---|
| Certification | CB, cUL, LVD |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
