D-Link Industrial Gigabit Unmanaged Switch with 2 SFP slots
- 4 x 100/1000Base-T ports, 2 x 100/1000BaseSFP slots
- Unmanaged plug-and-play simplicity
- Withstands extreme temperatures
- Tested against for vibration, shock, free-fall, EMC
Unmanaged Plug and Play
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment

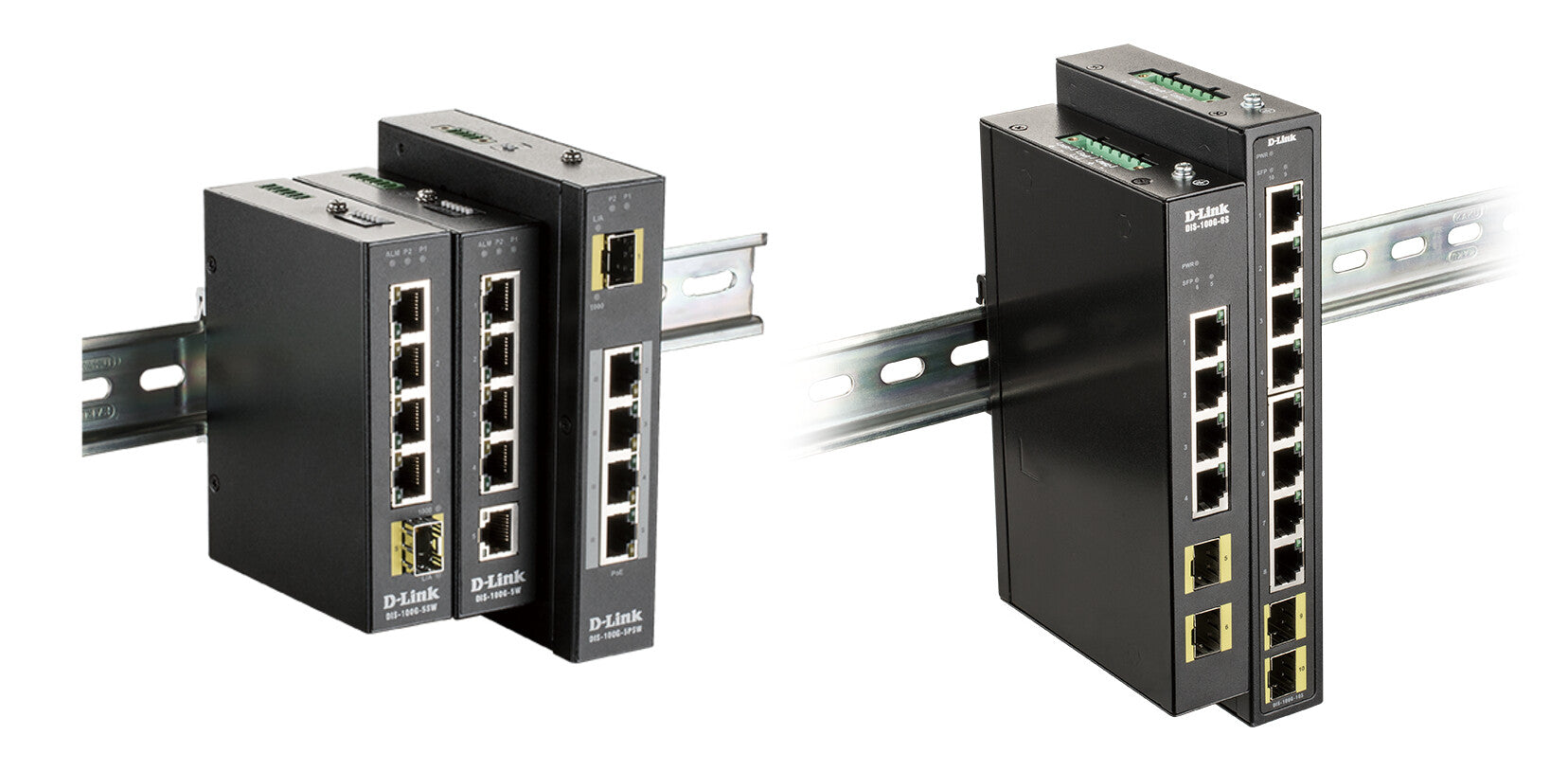

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 112.2 x 29.1 x 89.4 mm.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| Transmission method | Store-and-forward |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 8.928 Mpps |
| Switching capacity | 12 Gbit/s |
| MAC address table | 4000 entries |
| Design | |
|---|---|
| International Protection (IP) code | IP40 |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | DIN rail |
| Stackable | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 569768 h |
| Fanless | Yes |
| Power | |
|---|---|
| Power consumption (max) | 4.82 W |
| Input current | 1 A |
| DC input voltage | 12 – 48 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating temperature (T-T) | -20 – 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 446 g |
| Height | 102 mm |
| Depth | 28 mm |
| Width | 162 mm |
| Certificates | |
|---|---|
| Certification | 47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A)EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 VibrationCE, FCC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
