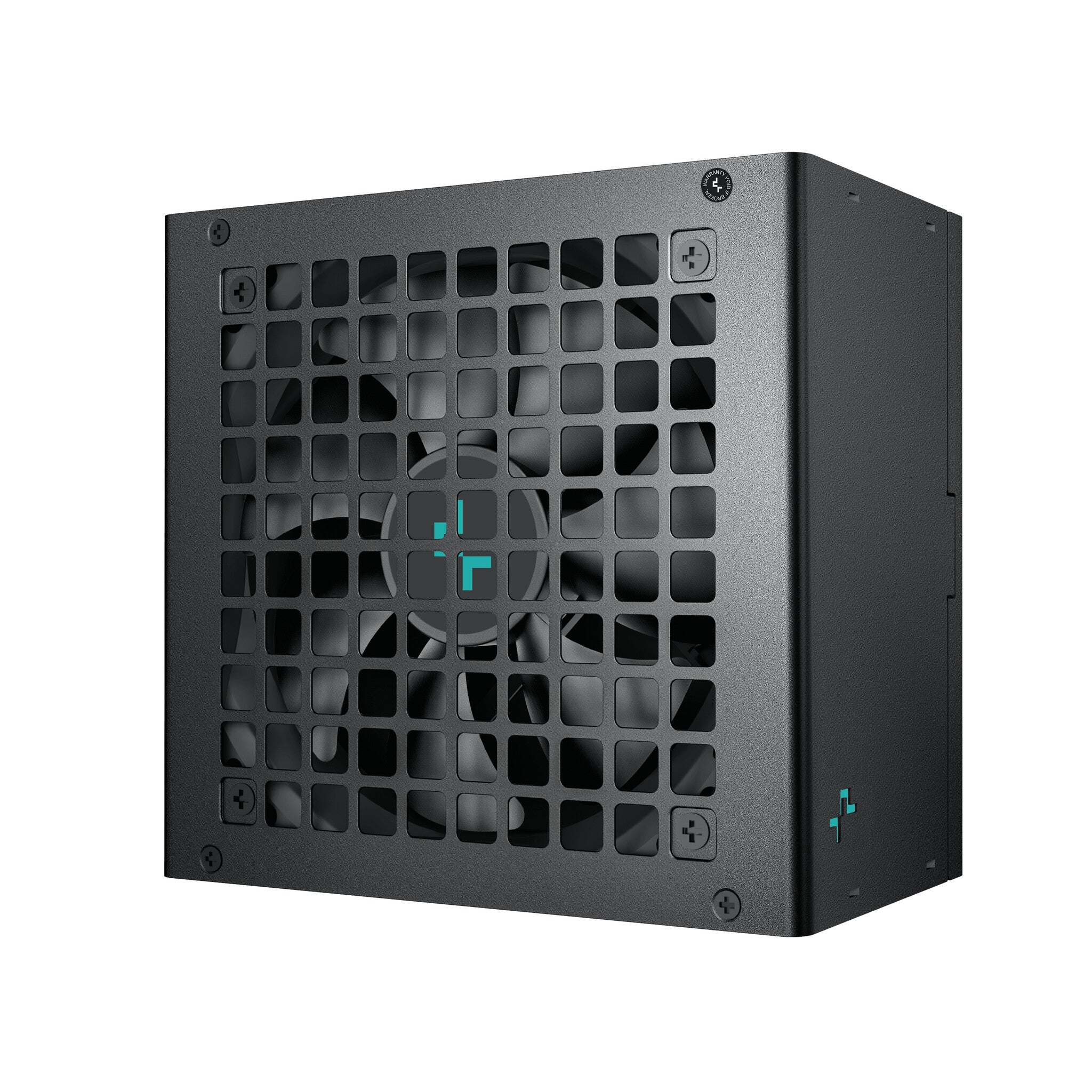

DeepCool PL750D power supply unit 750 W 20+4 pin ATX ATX Black
- 750 W 100 – 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Bronze
- Active 12 cm
- Black
The PL750D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL’s ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
PL750D
Native ATX3.0 Power Supply
NATIVE ATX3.0
Based on INTEL’s latest ATX3.0 standard, the PL750D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.
| Power | |
|---|---|
| Power protection features | No load operation, Over current, Over power, Over voltage, Overheating, Surge & inrush protection (SIP), Surge protection, Under voltage |
| Hold time | 16 ms |
| Efficiency | 85% |
| Power Good signal delay range | 100 – 150 ms |

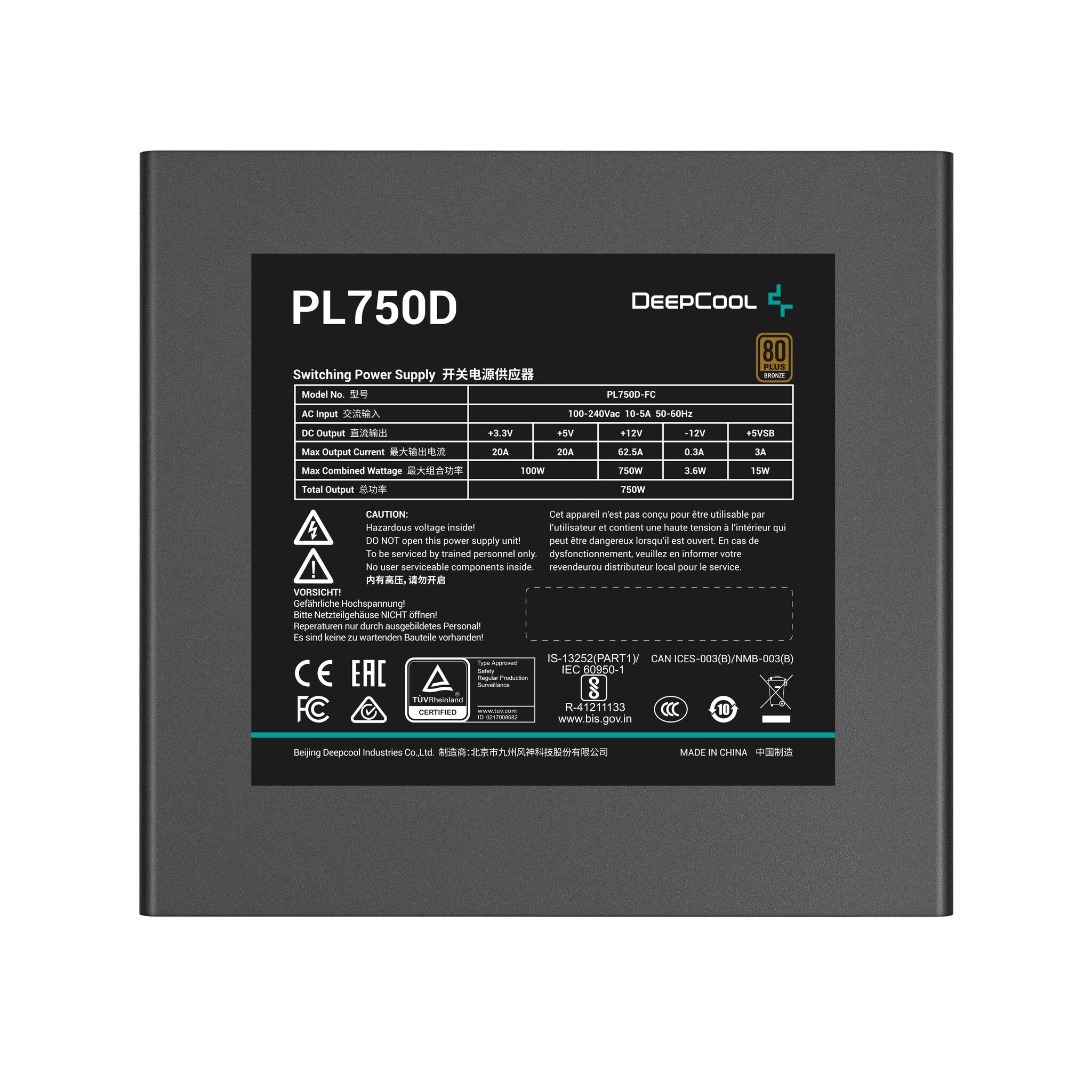

| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 100 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 10 – 5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 450,550,650,750 mm |
| Number of SATA power connectors | 8 |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HYB |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Certification | CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Compliance certificates | RoHS, WEEE |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ErP, Triman |
| Logistics data | |
|---|---|
| Country of origin | China |
