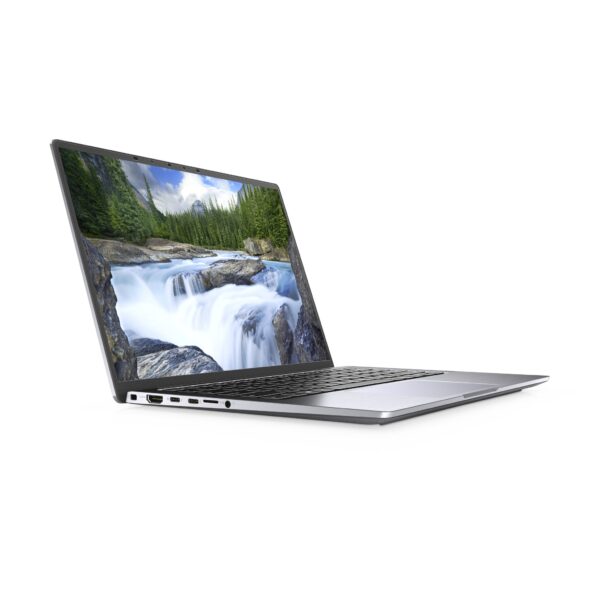

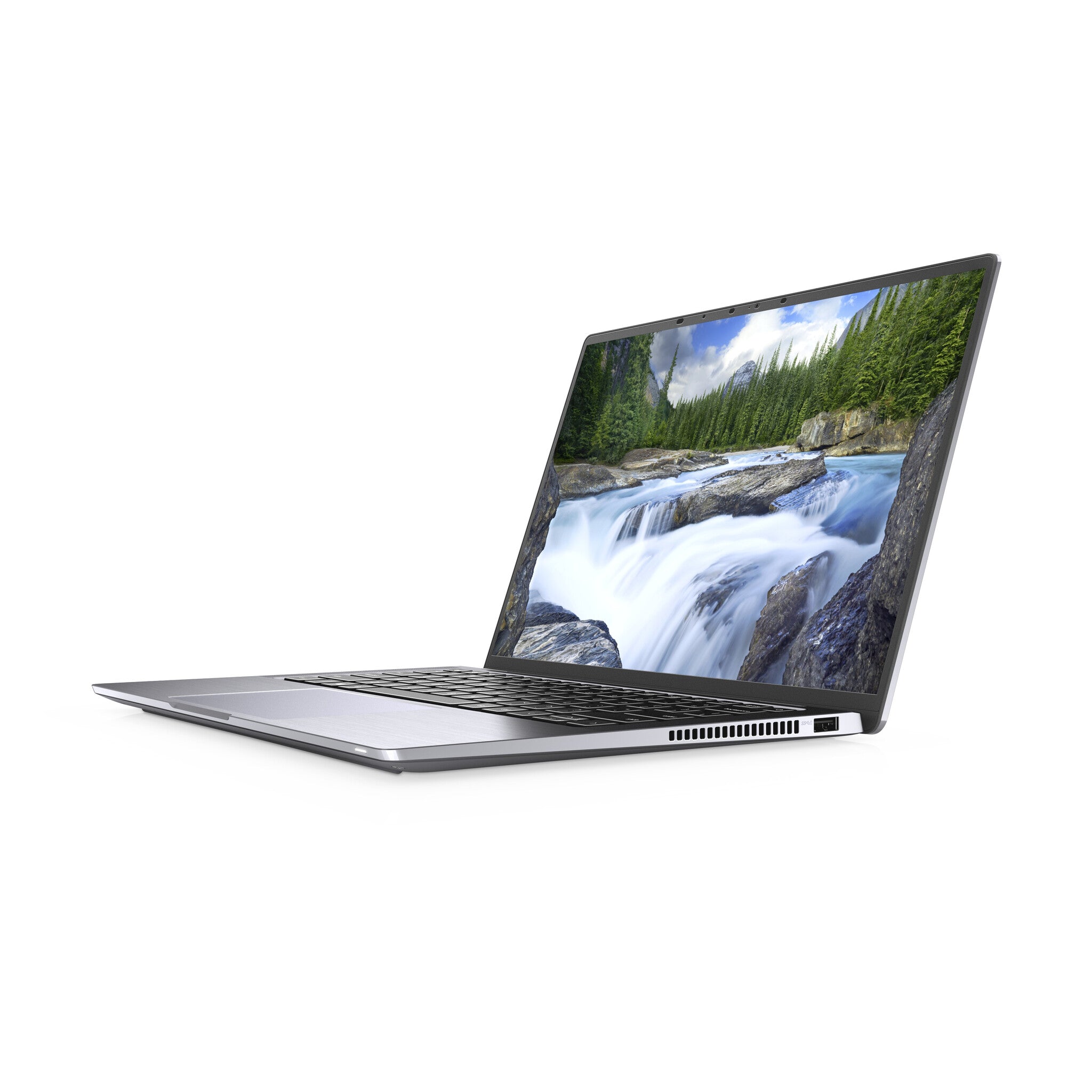

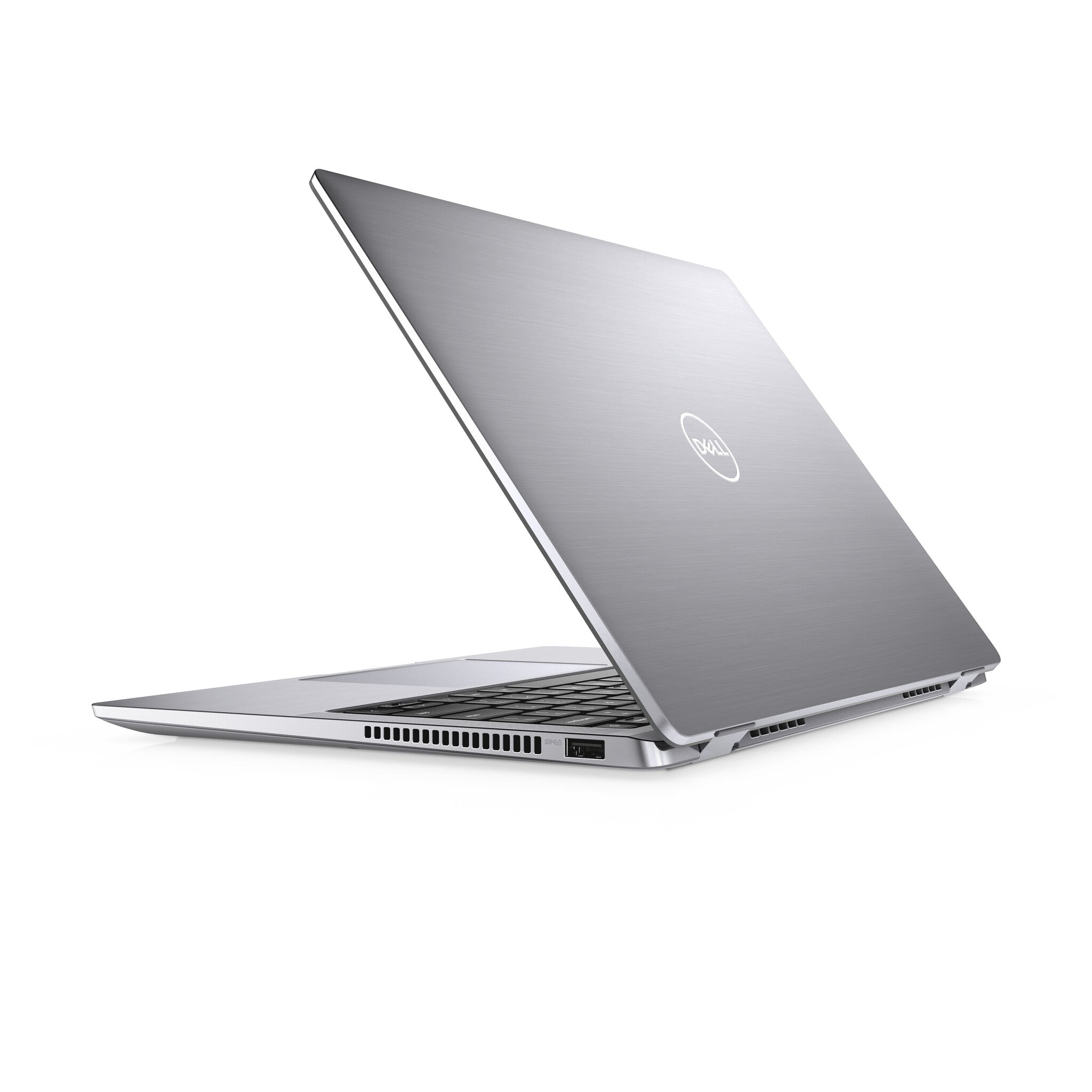

DELL Latitude 9420 Intel® Core™ i7 i7-1185G7 Laptop 35.6 cm (14″) Full HD+ 16 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Grey
- Windows 10 Pro 64-bit
- Intel Core i7-1185G7 (12MB Cache)
- 35.6 cm (14″) Full HD+ 1920 x 1200
- 16GB (4267MHz) LPDDR4x-SDRAM & 512GB SSD
Leading the new age of intelligence
Designed to offer the best connectivity & collaboration experience, Latitude 9420 features industry’s first automatic SafeShutter, 3D speakerphone & Intelligent Audio. Stretch the limits of productivity with ExpressConnect, 5G LTE and 16:10 screen with ComfortView Plus.
| Design |
| Market positioning |
Business |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| Display response rise/fall |
35 ms |
| Maximum refresh rate |
60 Hz |
| Display diagonal (metric) |
35.56 cm |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Pixel pitch |
0.1572 x 0.1572 mm |
| Pixel density |
161 ppi |
| Display brightness |
500 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| HD type |
Full HD+ |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Configurable TDP-down |
12 W |
| Configurable TDP-down frequency |
1.2 GHz |
| Configurable TDP-up |
28 W |
| Configurable TDP-up frequency |
3 GHz |
| Processor cache |
12 MB |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
4 |
| Processor model |
i7-1185G7 |
| Processor generation |
11th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Maximum internal memory |
16 GB |
| Memory clock speed |
4267 MHz |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR4x-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Speaker power |
10 W |
| Speakers manufacturer |
Waves |
| Number of built-in speakers |
4 |
| Audio system |
MaxxAudio Pro |
| Audio chip |
Realtek ALC711-CG |
| Camera |
| Video capturing speed |
30 fps |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller model |
Intel Wi-Fi 6E AX210 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| Number of USB ports with PowerShare support |
1 |
| PowerShare |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Performance |
| Ambient light sensor |
Yes |
| Proximity sensor |
Yes |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
| Trial software |
Microsoft Office Trial |
| Operating system language |
Multilingual |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Idle States |
Yes |
| Battery |
| Battery weight |
260 g |
| Fast charging |
Yes |
| Battery recharge time |
4 h |
| Battery voltage |
11.4 V |
| Battery capacity |
59.6 Wh |
| Number of battery cells |
3 |
| Power |
| USB charging voltage |
5,9,15,20 V |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
65 W |
| Security |
| Password protection |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
140 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Wi-Fi certified |
Yes |
| Weight & dimensions |
| Height (rear) |
1.39 cm |
| Height (front) |
8.42 mm |
| Depth |
215.2 mm |
| Width |
310.6 mm |
| Weight |
1.27 kg |
| General |
| Product family |
Latitude |
| Product series |
9000 |
| Packaging content |
| Cables included |
AC |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
