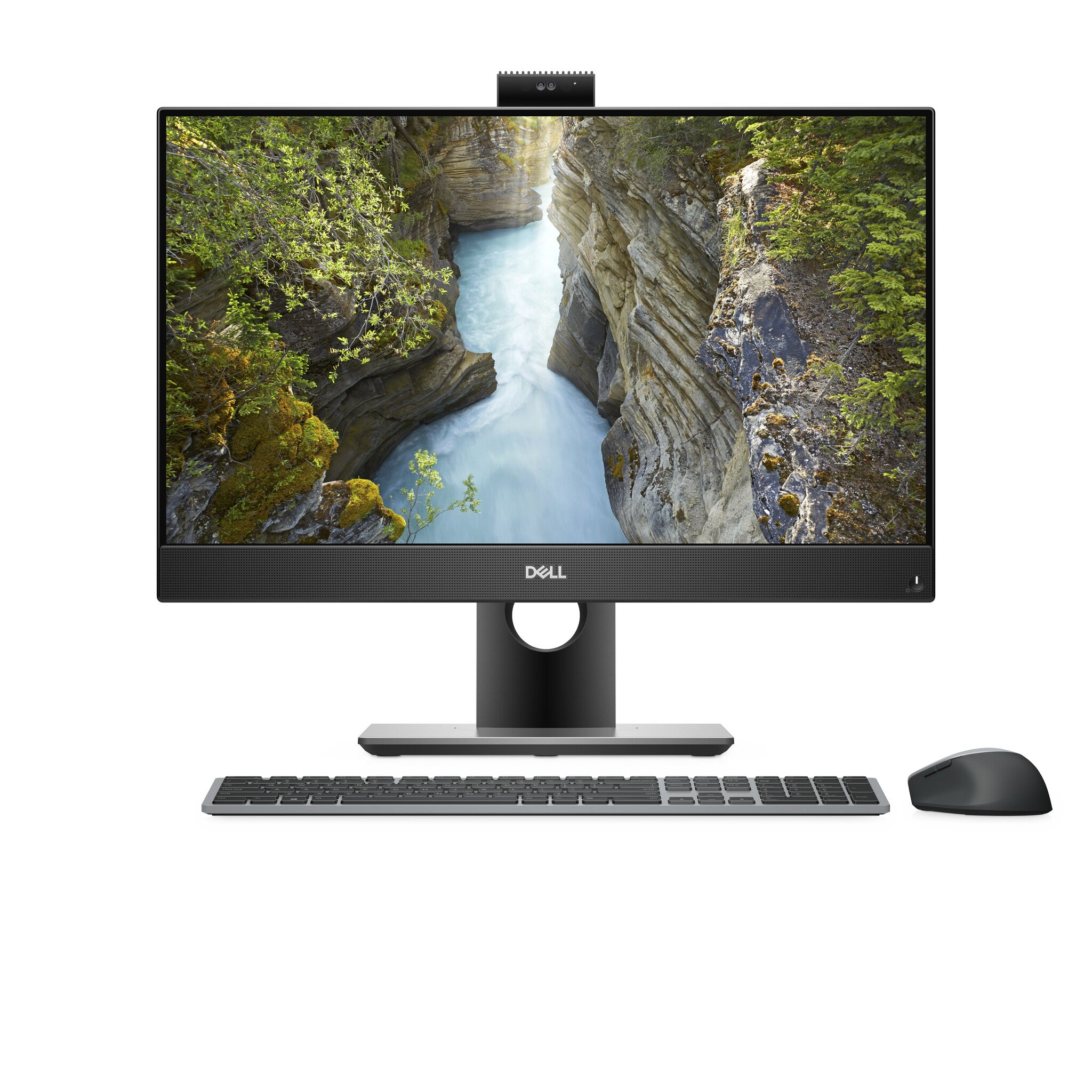

DELL OptiPlex 7490 Intel® Core™ i5 i5-10505 60.5 cm (23.8″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 6 (802.11ax) Silver
- Windows 10 Pro 64-bit
- Intel Core i5-10505 (12MB Cache, 3.2GHz)
- 60.5 cm (23.8″) Full HD 1920 x 1080 IPS
- 8GB DDR4-SDRAM (1 x 8) & 256GB SSD
A premium, intelligent 24″ All-in-One that delivers best-in-class performance, audio and video. With 10th Gen Intel® processors.
| Display | |
|---|---|
| Colour gamut | 72% |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Pixel density | 92 ppi |
| RGB colour space | NTSC |
| Anti-glare screen | Yes |
| Panel type | IPS |
| Display brightness | 250 cd/m² |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8″) |
| Processor | |
|---|---|
| Processor cache | 12 MB |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 6 |
| Processor model | i5-10505 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots type | SO-DIMM |
| Memory slots | 2 |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD performance class | 35 |
| SSD form factor | M.2 |
| SSD interface | NVMe, PCI Express |
| NVMe | Yes |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| Audio | |
|---|---|
| Audio chip | Realtek ALC3289 |
| Built-in microphone | Yes |
| RMS rated power | 10 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Camera | |
|---|---|
| Camera resolution | 1920 x 1080 pixels |
| Camera HD type | Full HD |
| Total megapixels | 2.07 MP |
| Built-in camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2×2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | Silver |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Product type | All-in-One PC |
| Software | |
|---|---|
| Trial software | McAfee® Small Business Security 30-day trial,No Microsoft Office License Included 30 day |
| Operating system language | Multilingual |
| Windows 11 free upgrade | Yes |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Idle States | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Power | |
|---|---|
| AC adapter input voltage | 90 – 264 V |
| AC adapter frequency | 47 – 63 Hz |
| AC adapter power | 160 W |
| General | |
|---|---|
| Product family | OptiPlex |
| Product series | 7000 |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.56 kg |
| Height (without stand) | 344 mm |
| Depth (without stand) | 52.6 mm |
| Width (without stand) | 540.2 mm |
| Width (with stand) | 540.2 mm |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 10668 m |
| Operating altitude | 0 – 3048 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 10 – 35 °C |
| Packaging content | |
|---|---|
| Keyboard included on selected markets only | Yes |
| Mouse included on selected markets only | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Other features | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Stand type | Height adjustable stand |
