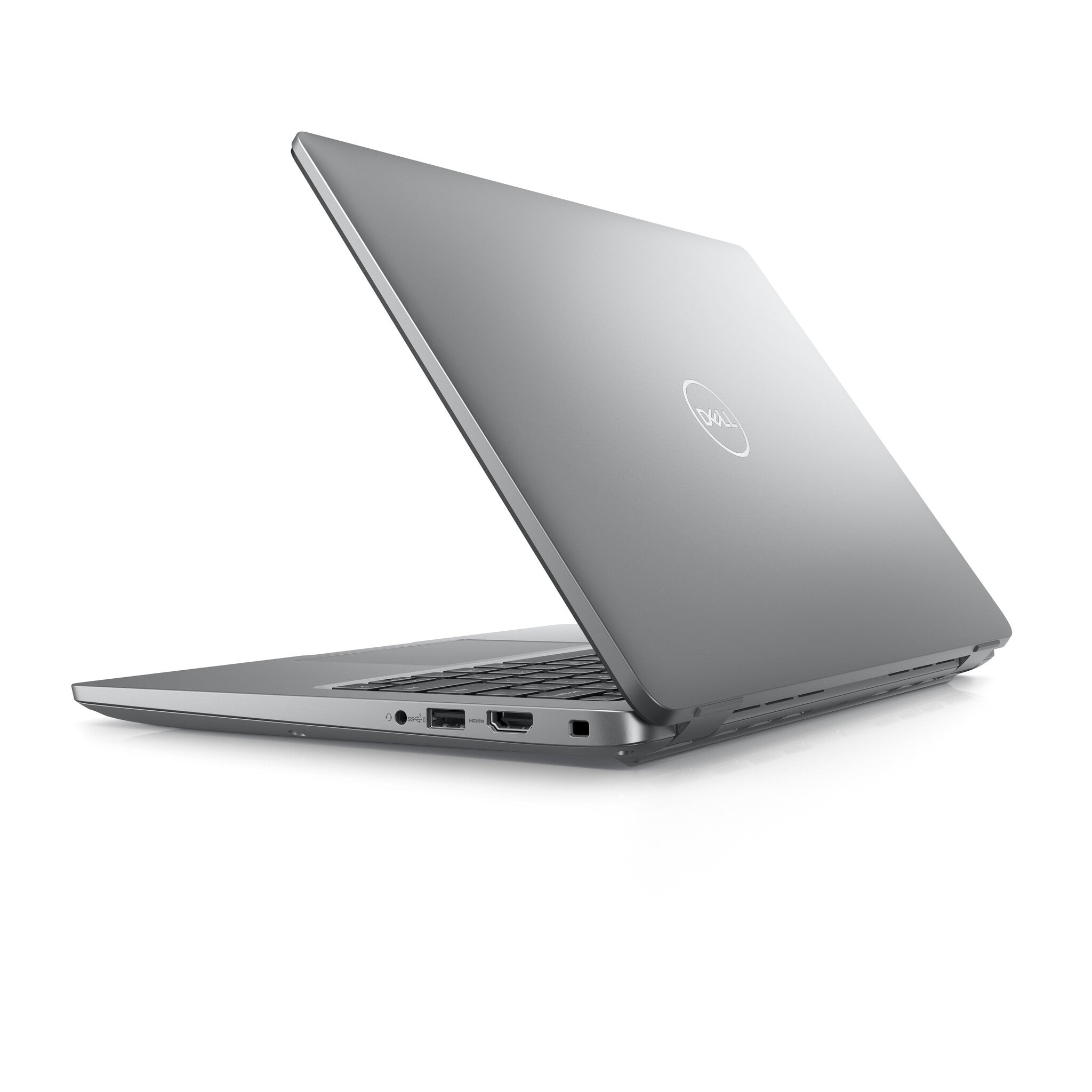

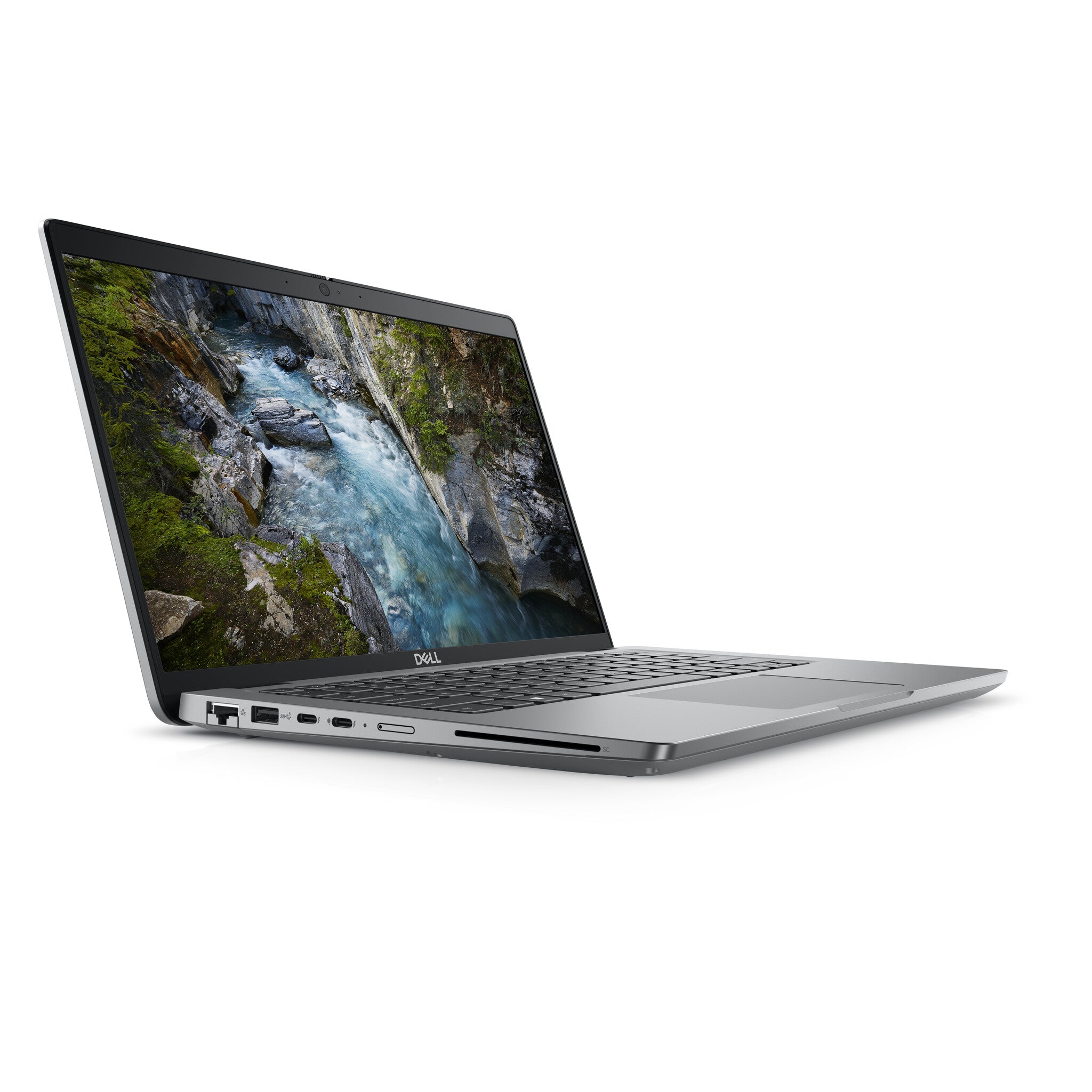

DELL Precision 3480 Intel® Core™ i7 i7-1360P Mobile workstation 35.6 cm (14″) Full HD 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
- Windows 11 Pro 64-bit
- Intel Core i7-1360P (18MB Cache)
- 35.6 cm (14″) Full HD 1920 x 1080 IPS
- 16GB (4800MHz) DDR5-SDRAM (2 x 8) & 512GB SSD
Purpose built for Power Users with advanced computing needs
The lightest of the 3000 Series, the 3480 is a 14-Inch ultra-mobile workstation that is great for multi-tasking across collaboration, business, and office applications.
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Mobile workstation |
| Display |
| Contrast ratio (typical) |
600:1 |
| Display response rise/fall |
35 ms |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Pixel pitch |
0.161 x 0.161 mm |
| Pixel density |
157 ppi |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Processor base power |
28 W |
| Maximum turbo power |
64 W |
| Configurable TDP-down |
20 W |
| Processor cache type |
Smart Cache |
| Processor cache |
18 MB |
| Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Processor boost frequency |
5 GHz |
| Processor threads |
16 |
| Processor cores |
12 |
| Processor model |
i7-1360P |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
4800 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD performance class |
35 |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Speakers manufacturer |
Waves |
| Number of built-in speakers |
2 |
| Audio system |
MaxxAudio |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera resolution (numeric) |
2.07 MP |
| Front camera |
Yes |
| Network |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| Number of USB ports with PowerShare support |
1 |
| PowerShare |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Ambient light sensor |
Yes |
| Keyboard |
| Keyboard number of keys |
80 |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
Touchpad |
| Software |
| Bundled software |
Windows System Driver |
| Trial software |
No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language |
Multilingual |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Battery |
| Battery weight |
190 g |
| Fast charging |
Yes |
| Battery recharge time |
4 h |
| Battery voltage |
11.4 V |
| Battery capacity |
42 Wh |
| Number of battery cells |
3 |
| Power |
| USB charging current |
6.5 A |
| USB charging voltage |
20,5 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
130 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Smart card reader |
Yes |
| Cable lock slot type |
Wedge |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Weight & dimensions |
| Height (rear) |
2.1 cm |
| Height (front) |
1.91 cm |
| Depth |
212 mm |
| Width |
321.4 mm |
| Weight |
1.39 kg |
| General |
| Product family |
Precision |
| Product series |
3000 |
| Carbon footprint |
| Carbon emissions, end-of-life (kg of CO2e) |
1 |
| Total carbon emissions, standard deviation (kg of CO2e) |
57 |
| Carbon emissions, energy usage (kg of CO2e) |
33 |
| PAIA version |
1.3.2 |
| Total carbon footprint (kg of CO2e) |
288 |
| Carbon emissions, manufacturing (kg of CO2e) |
243 |
| Carbon emissions, logistics (kg of CO2e) |
11 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
255 |
