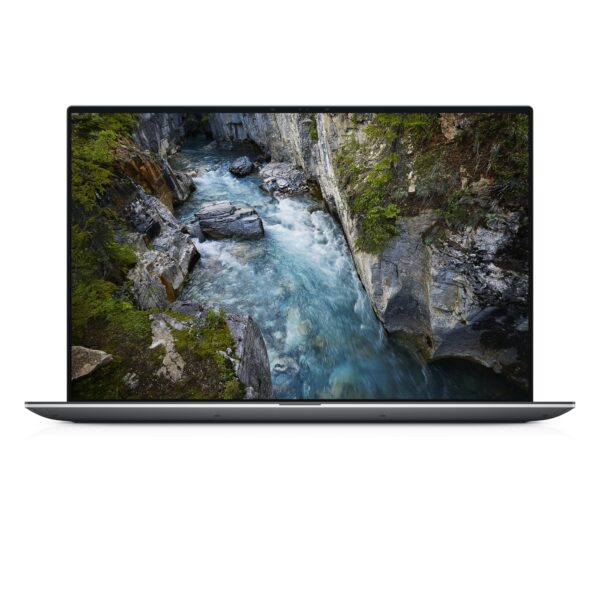

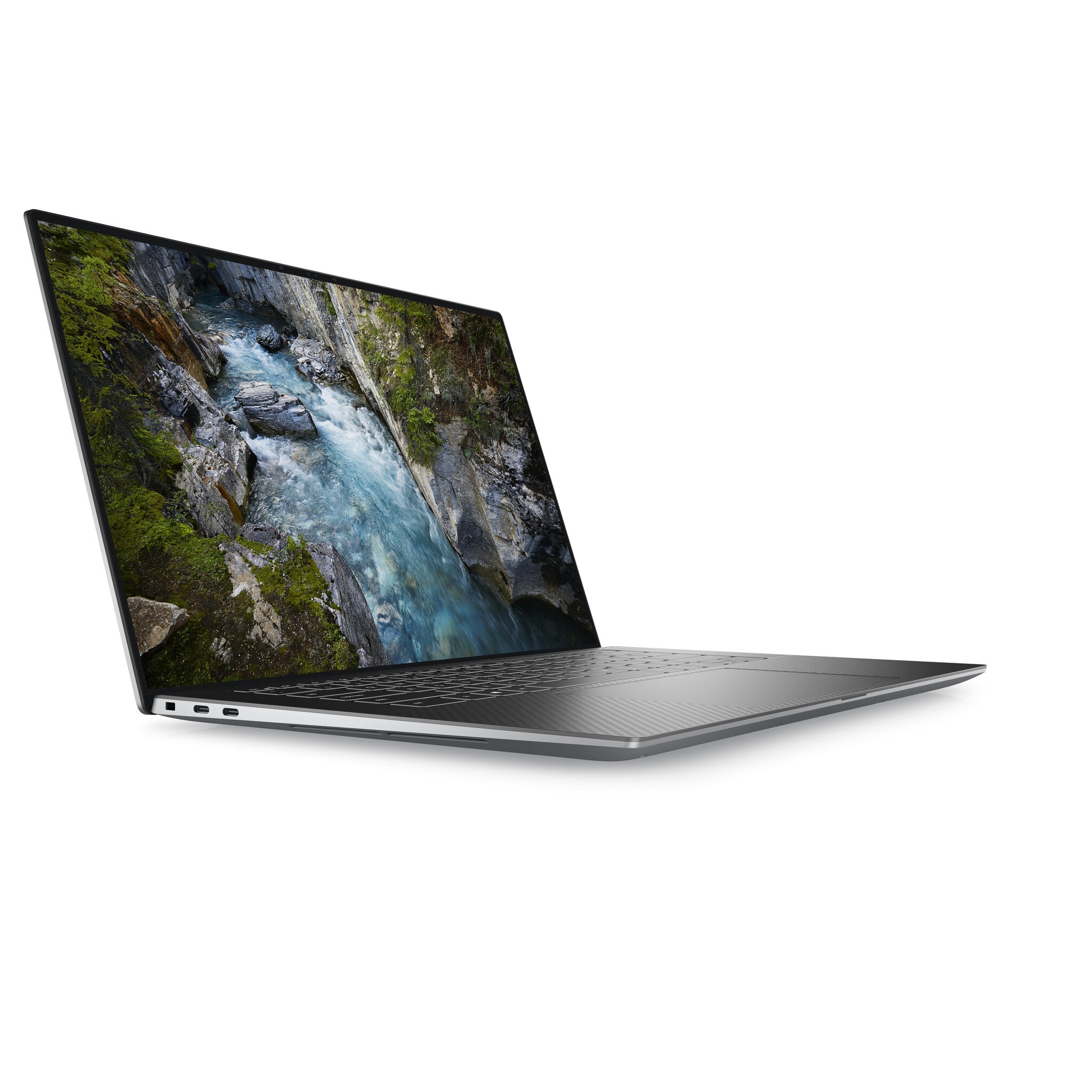

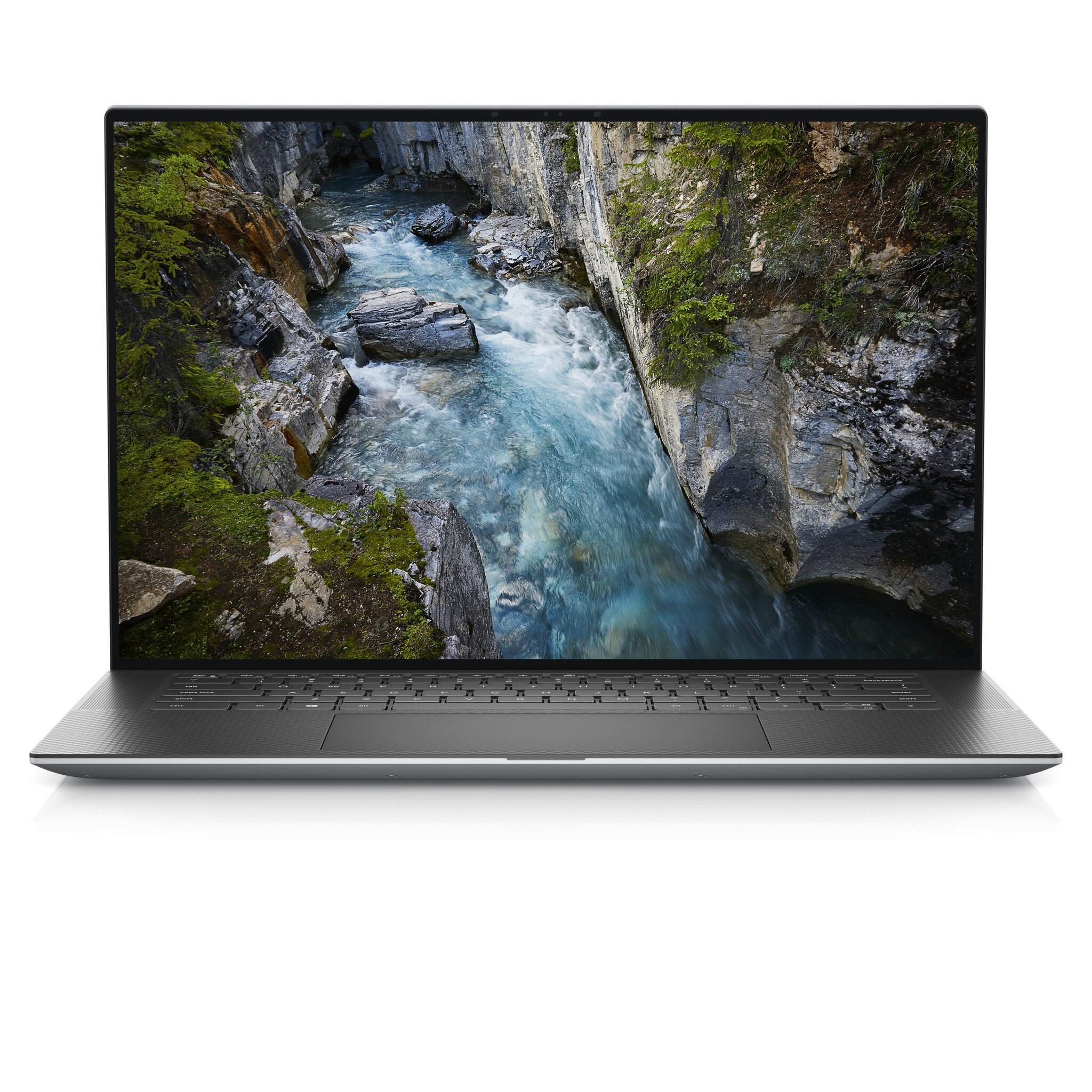

DELL Precision 5570 Intel® Core™ i7 i7-12800H Mobile workstation 39.6 cm (15.6″) Touchscreen UHD+ 32 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A2000 Wi-Fi 6E (802.11ax) Windows 10 Pro Grey
- Windows 10 Pro 64-bit
- Intel Core i7-12800H (24MB Cache)
- 39.6 cm (15.6″) UHD+ 3840 x 2400 WLED Touch, NVIDIA RTX A2000 (8GB GDDR6)
- 32GB (4800MHz) DDR5-SDRAM (2 x 16) & 512GB SSD
Gateway to ultimate productivity
15″ workstation with 4-sided InfinityEdge display, Dell Optimizer for Precision and up to 12th Gen Intel® Core™ i7 and NVIDIA RTX™ A2000 graphics.
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Introduction year |
2022 |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Mobile workstation |
| Display |
| High Dynamic Range (HDR) technology |
High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported |
Yes |
| Contrast ratio (typical) |
1600:1 |
| Display response rise/fall |
60 ms |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
Adobe RGB |
| Colour gamut |
100% |
| Pixel pitch |
0.09 x 0.09 mm |
| Pixel density |
290 ppi |
| Display brightness |
500 cd/m² |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
WLED |
| HD type |
UHD+ |
| Touchscreen |
Yes |
| Display resolution |
3840 x 2400 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache |
24 MB |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
14 |
| Processor model |
i7-12800H |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
4800 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Compatible memory cards |
SDXC, SD, SDHC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA RTX A2000 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Number of built-in speakers |
4 |
| Audio chip |
Realtek ALC3281 |
| Camera |
| Video capturing speed |
30 fps |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
Touchpad |
| Software |
| Trial software |
No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language |
German, English, French, Italian |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Battery |
| Battery weight |
340 g |
| Fast charging |
Yes |
| Battery recharge time |
3 h |
| Battery voltage |
11.4 V |
| Battery capacity |
86 Wh |
| Number of battery cells |
6 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
6.5 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
130 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Weight & dimensions |
| Height (rear) |
1.17 cm |
| Height (front) |
1.85 cm |
| Depth |
230.1 mm |
| Width |
344.4 mm |
| Weight |
2.1 kg |
| General |
| Product family |
Precision |
| Product series |
5000 |
| Packaging content |
| Cables included |
AC |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
