DrayTek VSP1281X-K network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- 24 RJ-45 Ethernet PoE+ Ports – 10/100/1000Mbps
- 4 x SFP+ 10GbE Ports for Uplink / Fibre
- PoE (Power-over-Ethernet) for IP phones, wireless access points, IP cameras etc
- 140-watt Power-over-Ethernet budget
- Cloud Managed with VigorACS
- 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
- ONVIF IP Camera Surveillance Management with PoE Device Check
- Access Control List (ACL) for port & traffic level security
- Port Mirroring & Link Aggregation
- IGMP Snooping & Querying
- IPv4 and IPv6 Support with IP Conflict Prevention
- Centrally managed or standalone operation

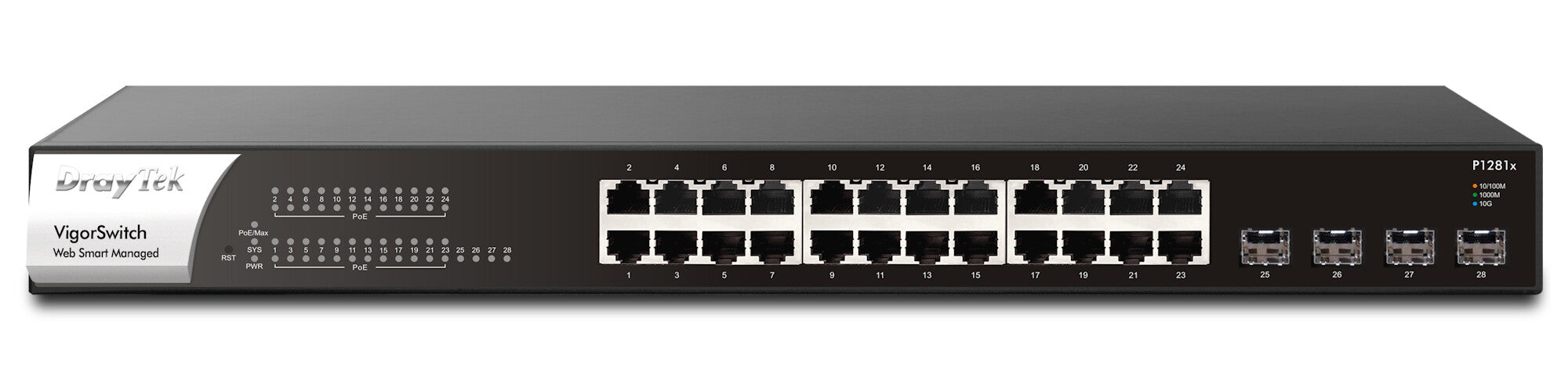

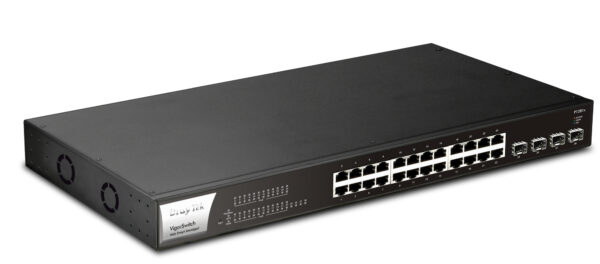

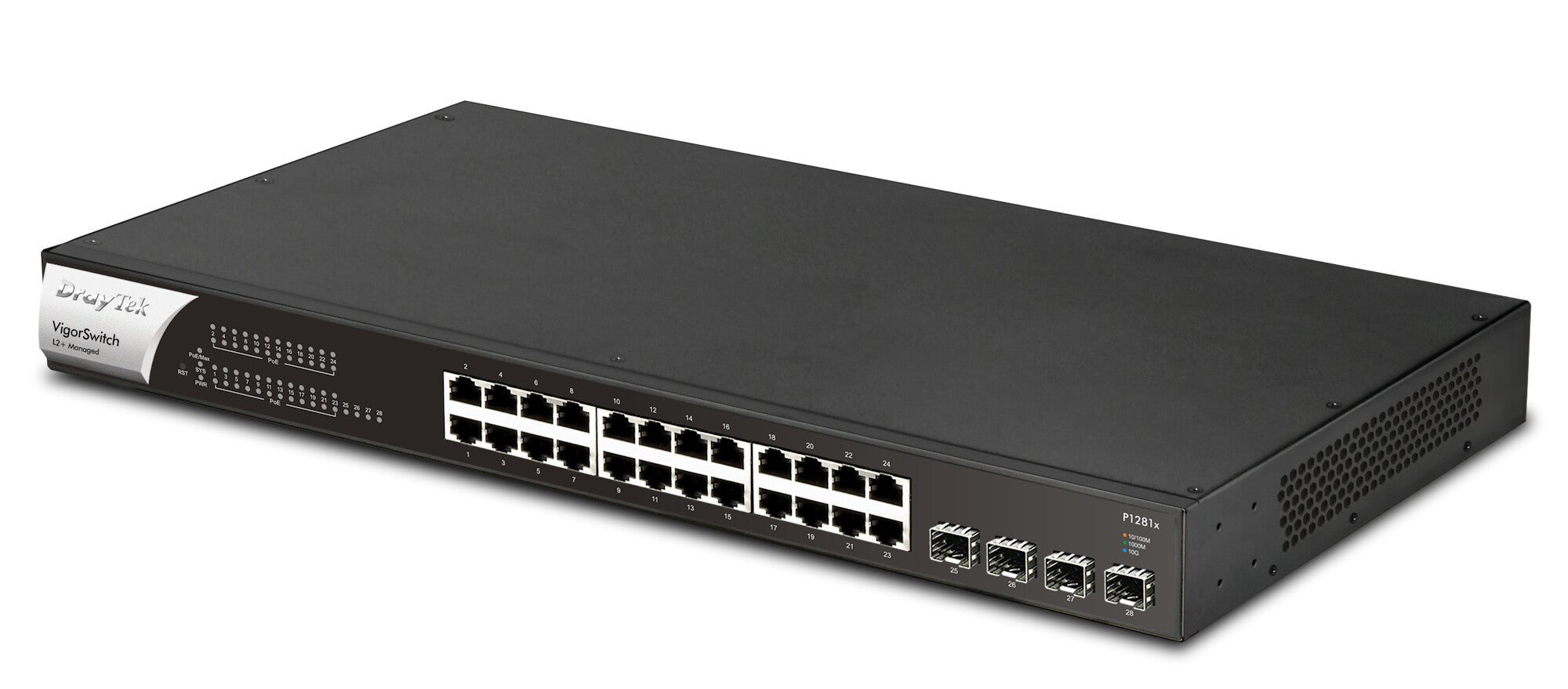

VigorSwitch P1281x is a smart switch with 24 x GbE PoE+ ports (total of 140W output) and 4 additional independent SFP+ 10Gbps interfaces. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.
Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
| Management features |
| System event log |
Yes |
| Traffic classification |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Protocols |
| IP Source Guard (IPSG) |
Yes |
| Design |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
| Fanless |
Yes |
| Firmware upgradeable |
Yes |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
140 W |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) ports quantity |
24 |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Power over Ethernet (PoE) |
Yes |
| Other features |
| Warranty period |
2 year(s) |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
3.25 kg |
| Height |
44 mm |
| Depth |
216 mm |
| Width |
440 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45), Power |
