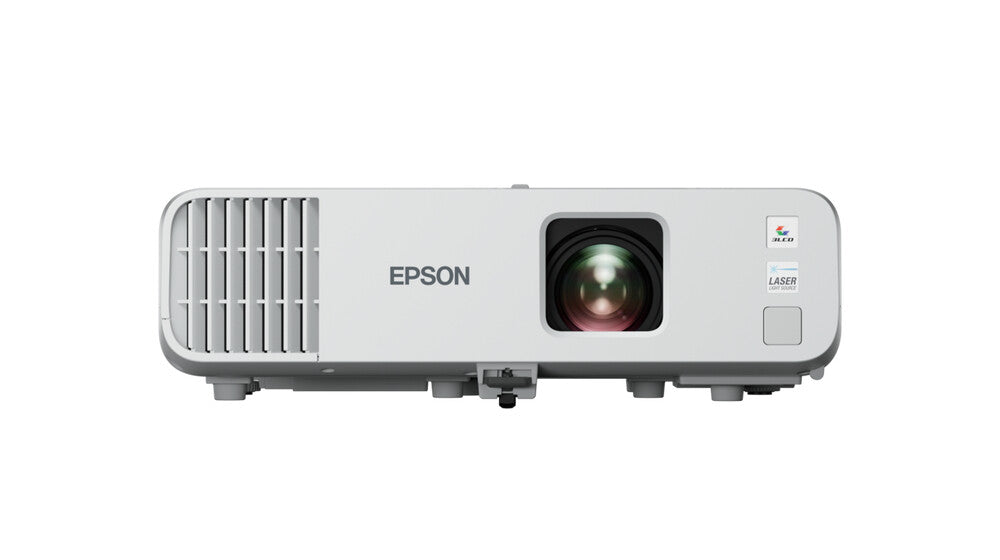

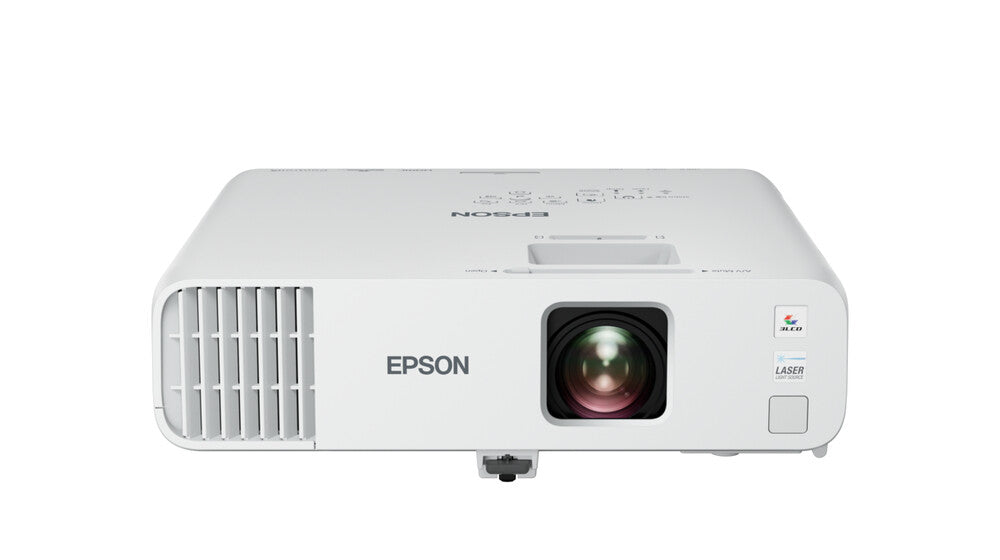

Epson EB-L260F Standard throw projector 4600 ANSI lumens 3LCD 1080p (1920×1080) White
- 4,600 lumens brightness display Full HD crisp images and bright colours, even in well-lit rooms
- A scalable display Flexibile scalable display from 31 inches up to 310 inches
- Stream content easily Wireless, MTR auto power-on by HDMI and easy smart stick connection
- Fit and forget reliability Easy installation with multi-projection and signage function
- The complete solution With an incredible contrast ratio of 2,500,000:1, the EB-L260F delivers vivid, lifelike content and defined shadow detail with deeper blacks
Deliver Full HD content easily through a scalable display delivering of up to 310 inches combined with stream and share connectivity.
Combined with advance features, the EB-L260F is an entry-level Full HD wireless laser projector the ideal solution for any working environment. It offers 4,600 lumens brightness, a range of wireless and wired connectivity and the ability to have a scalable display size of up to 310 inches.
Excel your content delivery
The perfect Full HD laser display solution allows you to upgrade to laser performance and reliability without paying a premium. High contrast of 2,500,000:1 and 3LCD technology ensures professional, outstanding and clear content delivery in any working environment while keeping audiences engaged.
Simple set-up and connectivity
Offers MTR auto power-on function by HDMI video signal detection and an array of connectivity options including Dual HDMI and built-in wireless LAN to stream content from laptops or mobile devices with Screen Mirroring (Miracast) – PIN code support and display dialog username when connected Miracast to projector allows teacher to block student interruption while teacher is projecting. USB power supply (2A) for easy smart stick connection. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.
Peace of mind and long-lasting durability
Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal). The EB-L260F is covered by a five-year warranty.
Fit and forget installation, ease of installation
This light weight and compact projector supports 360 degree installation without compromising the display quality and supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs.
| Projector | |
|---|---|
| Heat dissipation | 884 BTU/h |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 30° |
| Vertical scan range | 192 – 240 Hz |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Projection distance (wide) | 0.9 – 9.1 m |
| Screen size compatibility | 787.4 – 7874 mm (31 – 310″) |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | 1080p (1920×1080) |
| Projection technology | 3LCD |
| Projector brightness | 4600 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Offset | 1000% |
| Throw ratio | 1.32 – 2.12:1 |
| Zoom ratio | 1:1.62 |
| Zoom type | Manual |
| Zoom capability | Yes |
| Aperture range (F-F) | 1.51 – 1.77 |
| Focal length range | 18.2 – 29.1 mm |
| Focus | Manual |
| Video | |
|---|---|
| Video colour modes | Blackboard, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| Audio Return Channel (ARC) | Yes |
| AC (power) in | Yes |
| Serial interface type | RS-232C |
| Microphone in | Yes |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Composite video in | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 3 |
| Network | |
|---|---|
| Miracast | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Password protection | Yes |
| Air filter | Yes |
| Screen mirroring | Yes |
| On Screen Display (OSD) | Yes |
| Projection modes | Ceiling, Front |
| HDCP | Yes |
| Noise level (economic mode) | 27 dB |
| Noise level | 37 dB |
| Multimedia | |
|---|---|
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop, Floor, Wall |
| Product colour | White |
| Product type | Standard throw projector |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 220 – 240 V |
| Power consumption (economy mode) | 144 W |
| Power consumption (max) | 260 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 199 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 90 mm |
| Depth | 299 mm |
| Width | 325 mm |
| Weight | 4.2 kg |
| Packaging content | |
|---|---|
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
| Cables included | HDMI, Power |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
