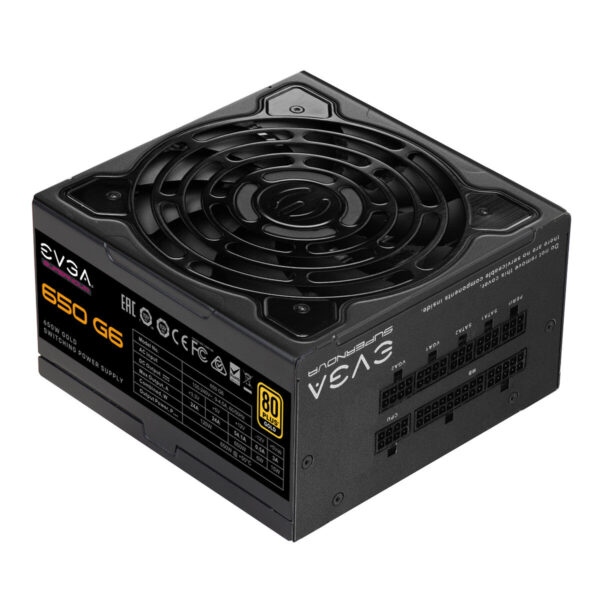

EVGA SuperNOVA 650 G6 power supply unit 650 W 24-pin ATX Black
- Fully Modular to reduce clutter and improve airflow
- 100% Japanese Capacitors ensure long-term reliability
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Active Power Factor Correction
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
- 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), Dual OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and low ripple & noise
The EVGA SuperNOVA G6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis.
Next Gen Platform
With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA G6 provides rock-solid stability, relentless efficiency, and extremely tight voltage regulation.
Hardware + Firmware OPP
Hardware OPP is designed to trip at 135% max wattage as a last resort to protect the system, but the SuperNOVA G6 also features firmware OPP to anticipate harmful load behavior 5-10% sooner by shutting off the power supply when over-power conditions persist longer than 1ms while avoiding an instantaneous overload trigger protection malfunction during momentary peak wattage.
Smaller Size, Bigger Performance
The improved efficiency and voltage regulation minimizes heat, allowing the SuperNOVA G6 to be EVGA’s shortest ATX Gold-certified power supply.
ULTRA-QUIET 135MM FDB FAN WITH EVGA ECO MODE
To reduce noise, the SuperNOVA G6 maximizes the time the power supply stays silent or quiet at low to medium loads when ECO Mode is enabled.

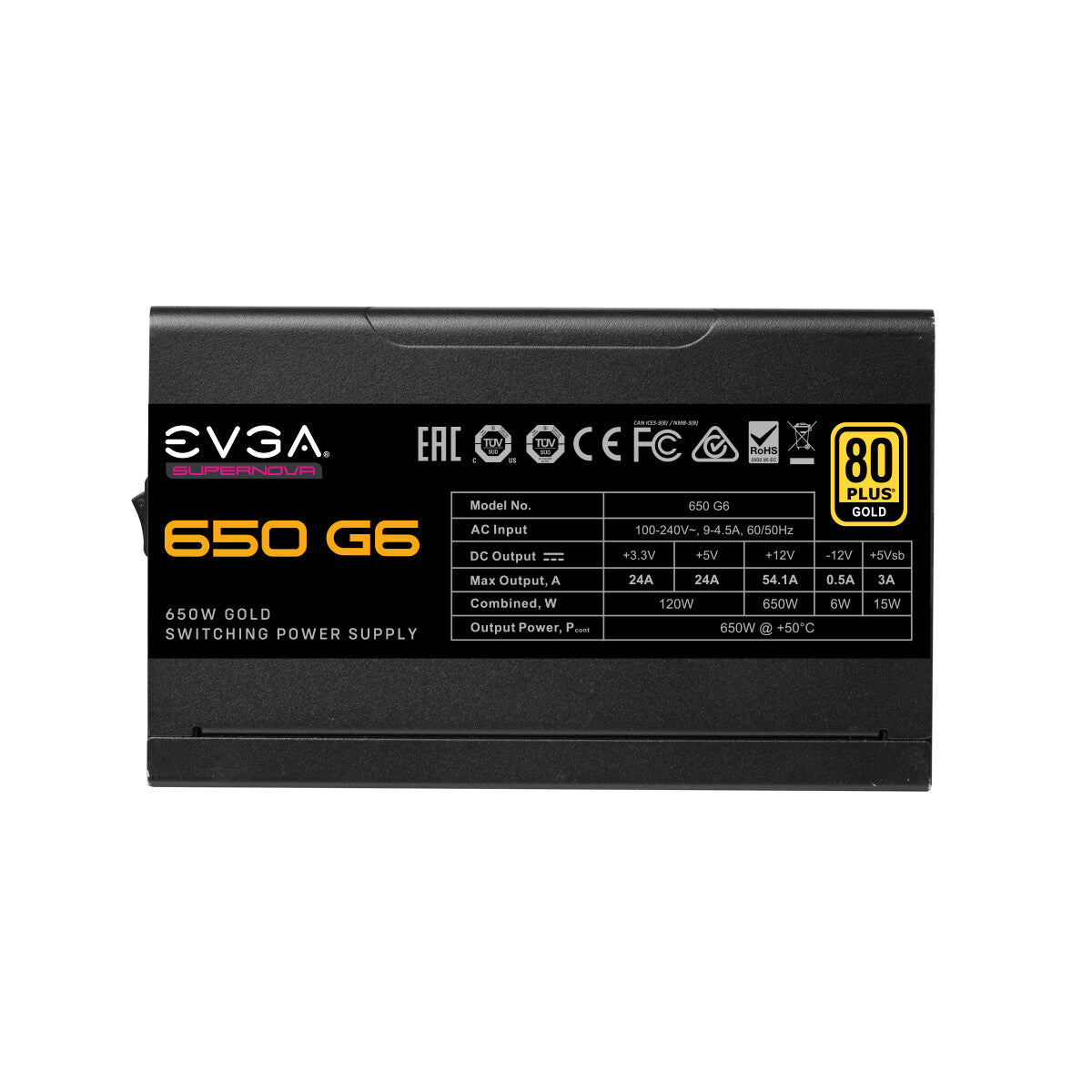

| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 92% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 24 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+3.3V) | 24 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 650 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 4.5 – 9 A |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 650 W |
| Ports & interfaces | |
|---|---|

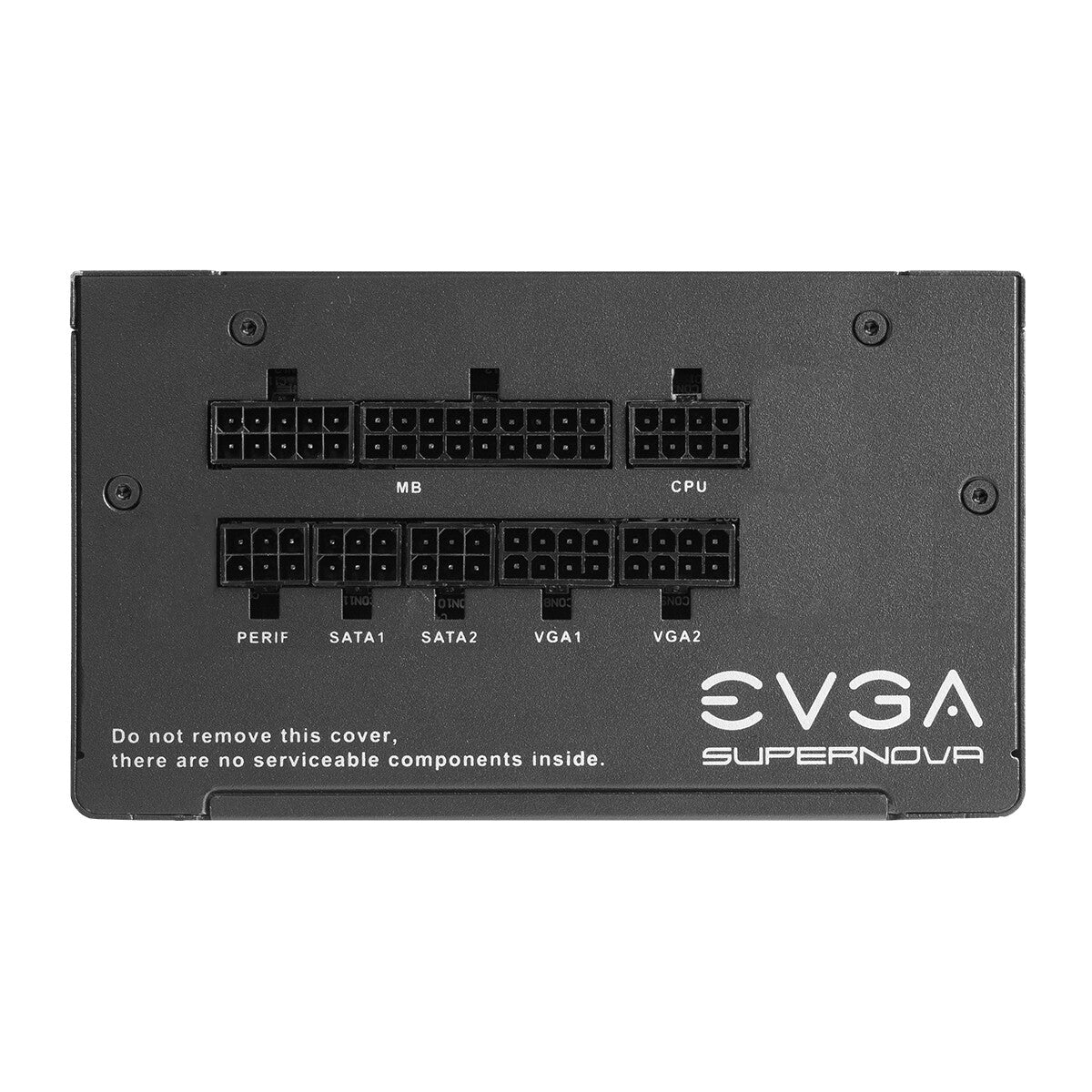

| Cabling type | Fully-Modular |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 10 cm |
| ATX Power connector (24-pin) | Yes |
| PCI Express power cable length | 82 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 550,650,750,850 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 550,650,750 mm |
| Number of SATA power connectors | 6 |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Design | |
|---|---|

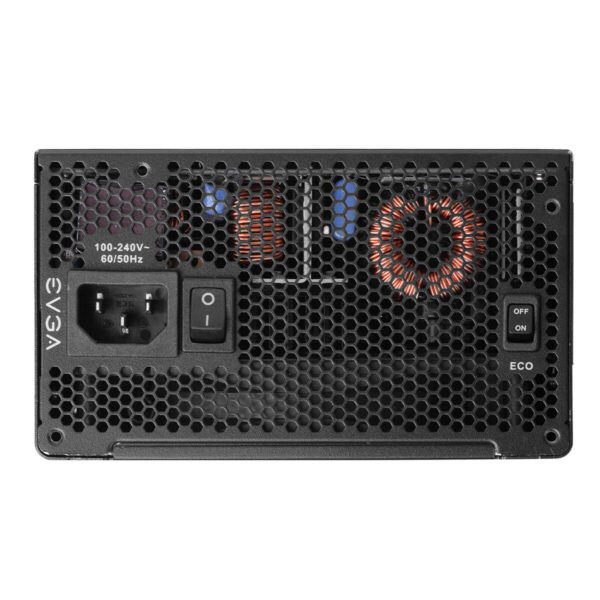

| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Certification | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 2.72 kg |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
