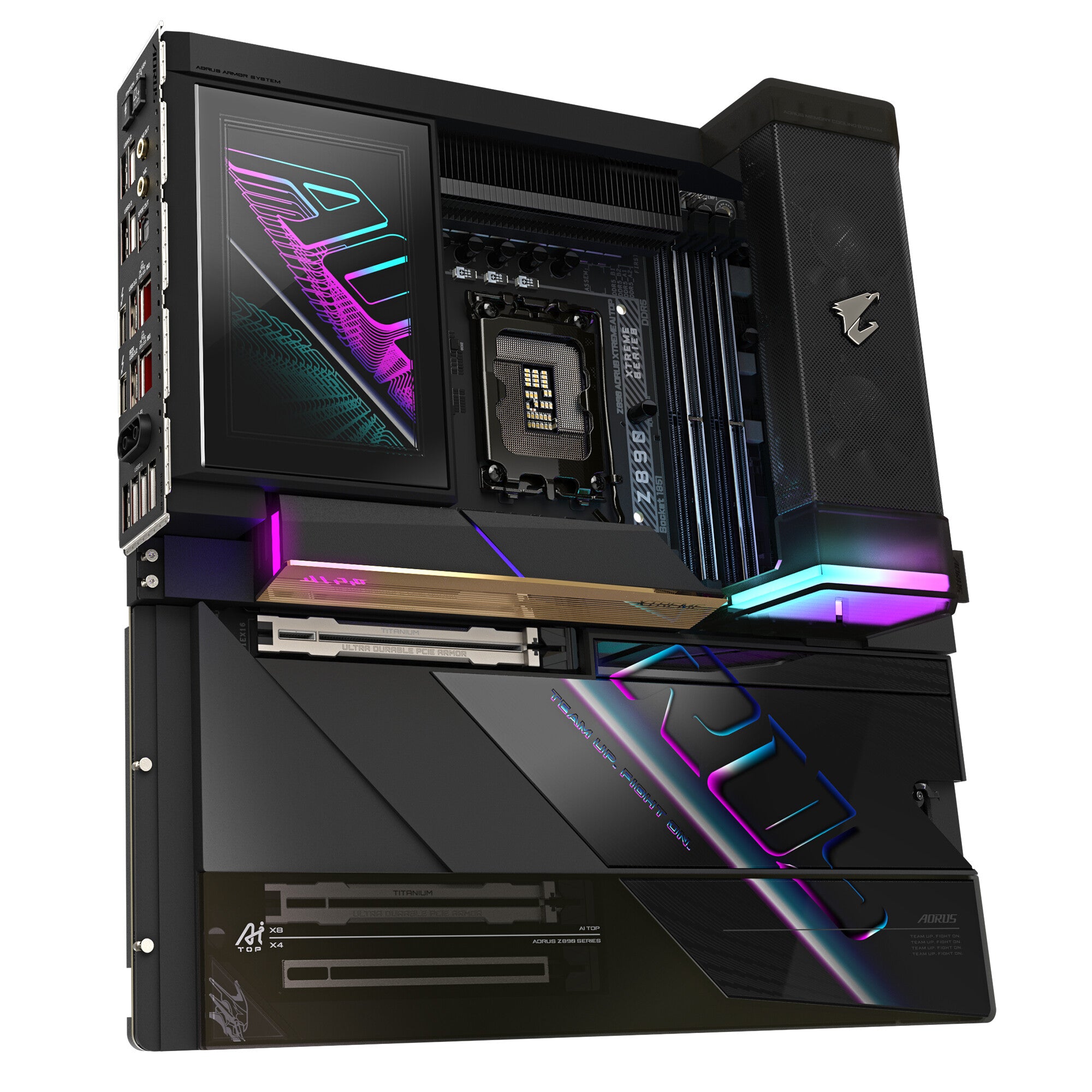

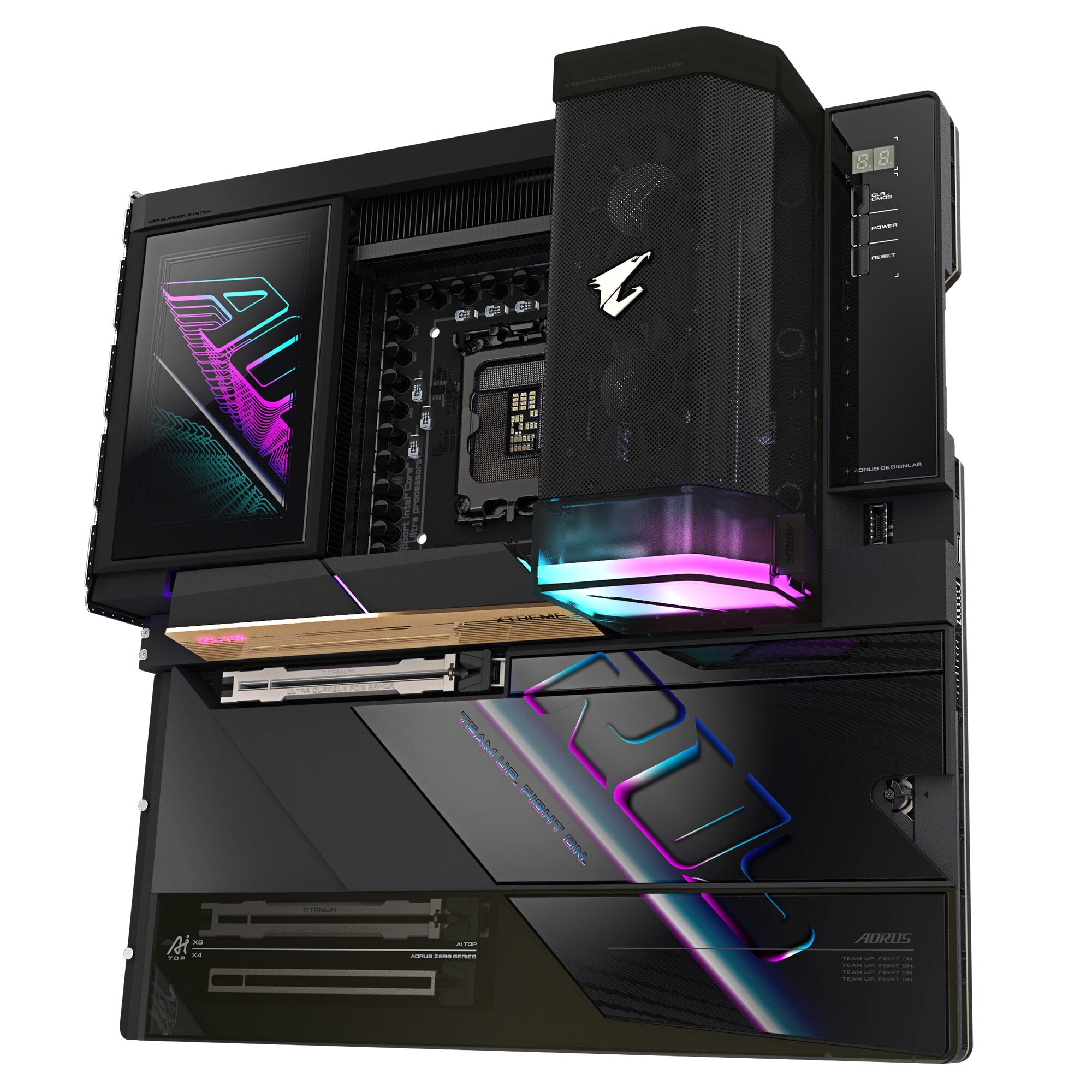

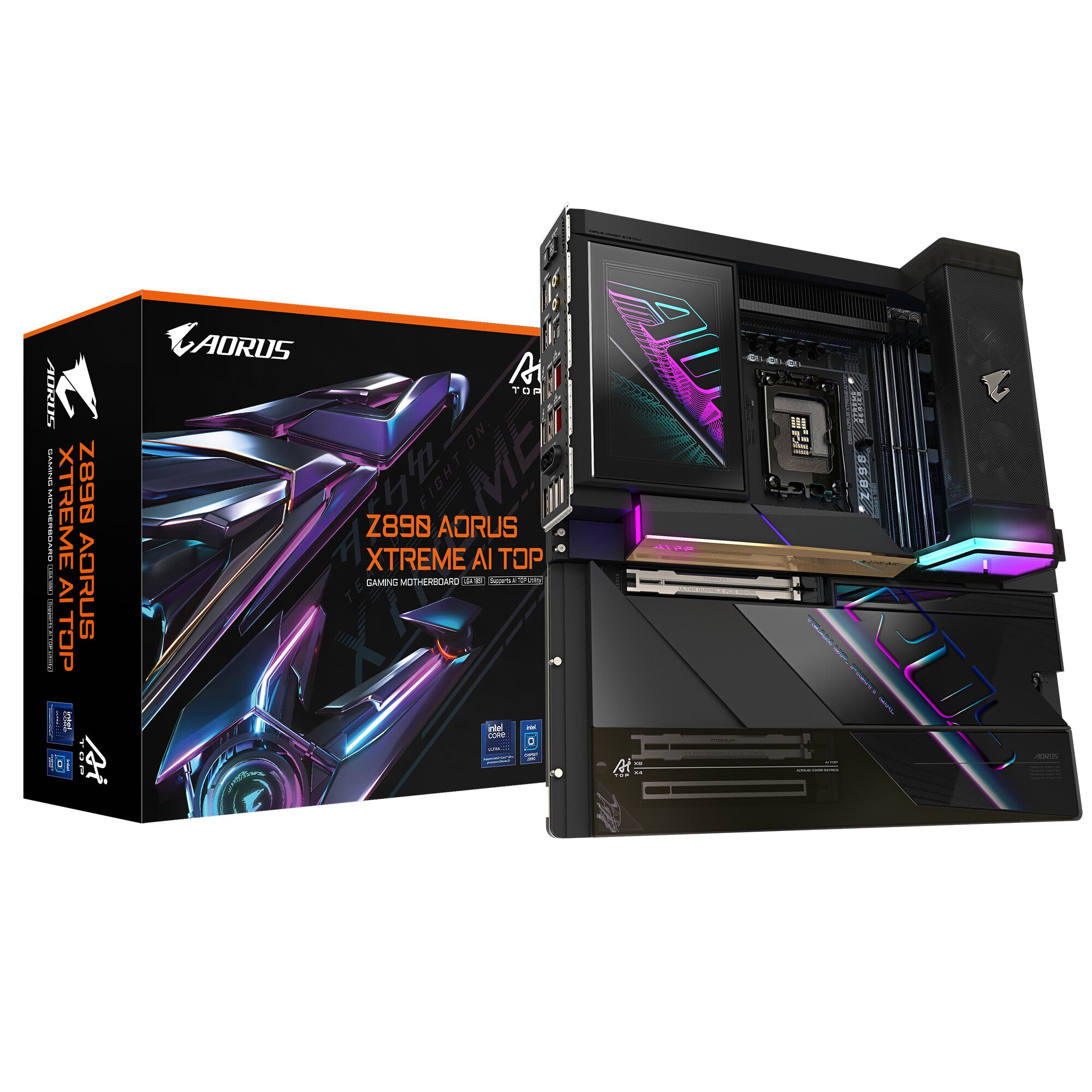

GIGABYTE Z890 AORUS XTREME AI TOP Motherboard – Supports Intel Core Ultra (Series 2) CPUs, 22+1+2 phases VRM, up to 9500MHz DDR5 (OC), PCIe 5.0 M.2, Wi-Fi 7, Thunderbolt 5
- Training your own AI on your desk
- Supports Intel Core Ultra processors (Series 2)
- Digital twin 22+1+2 phases VRM solution
- Ultimate Scalibility: 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
- Next-gen Connectivity: Dual THUNDERBOLT 5 and THUNDERBOLT 4 Type-C with DP-Alt
- Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with RGB
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI Boost: Auto-Overclocking Software by AI models
- AI Perfdrive: Provides optimal and customized BIOS preset profile for users
- Premium Compatibility: 4*DDR5 with XMP Memory Module Support
- Reinforced Overall Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor |
| Maximum internal memory supported by processor |
256 GB |
| Supported processor sockets |
LGA 1851 |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Processor socket |
LGA 1851 (Socket V1) |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory per slot |
64 GB |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
9500 MHz |
| Supported memory clock speeds |
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of storage drives supported |
8 |
| Number of HDDs supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Number of RGB LED pin headers |
4 |
| RGB LED pin header |
Yes |
| Number of water pump connectors |
2 |
| Number of temperature sensor headers |
2 |
| Number of noise detection headers |
1 |
| Thunderbolt headers |
1 |
| Number of EPS power connectors (8-pin) |
2 |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
3 |
| Number of CPU fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2×2 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| WiFi-AP antenna jack |
2 |
| Thunderbolt ports quantity |
2 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
10 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| LAN controller |
Marvell AQtion AQC113C |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 x64 |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Product colour |
Black |
| Audio output channels |
2.0 channels |
| Audio chip |
ESS ES9280AC + ESS ES9080 |
| Motherboard chipset |
Intel Z890 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
Extended ATX |
| Component for |
PC |
| Expansion slots |
| 4th M.2 highest PCI Express generation |
4.0 |
| 4th M.2 largest key size |
22110 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
22110 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
25110 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
25110 |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| BIOS |
| System Management BIOS (SMBIOS) version |
2.7 |
| Desktop Management Interface (DMI) version |
2.7 |
| Clear CMOS button |
Yes |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Battery |
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Packaging data |
| Package weight |
6.7 kg |
| Package height |
140 mm |
| Package depth |
370 mm |
| Package width |
386 mm |
| Logistics data |
| Country of origin |
Taiwan |
| Products per shipping (inner) case |
1 pc(s) |
| Weight & dimensions |
| Height |
35 mm |
| Depth |
305 mm |
| Width |
304.8 mm |
| Packaging content |
| Bundled software |
Norton® Internet Security (OEM version)LAN bandwidth management software |
| Antenna included |
Yes |
| Screws included |
Yes |
| Batteries included |
Yes |
| Other features |
| Weight |
5.03 kg |
| Technical details |
| Warranty period |
3 year(s) |
