Honeywell ScanPal EDA5S + kit (USB) handheld mobile computer 14 cm (5.5″) 1440 x 720 pixels Touchscreen 218 g Black
- 14 cm (5.5″) 1440 x 720 pixels Touchscreen
- 3 GB
- Snapdragon 662 2 GHz
- GPS (satellite) Android 11
- Bluetooth Data network: Edge, HSPA+, LTE, UMTS Near Field Communication (NFC) Wi-Fi
- Built-in camera 13 MP
- Lithium-Ion (Li-Ion) 3060 mAh
- Black

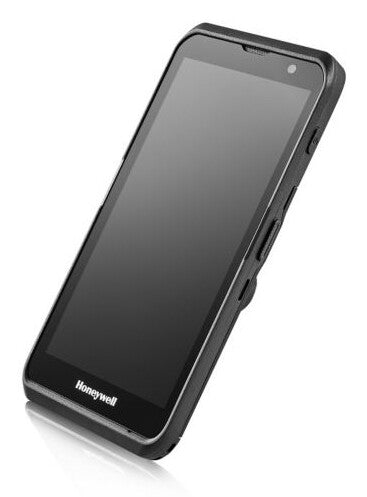

The Honeywell ScanPal™ EDA5S is an enterprise-class mobile computer that provides secure connectivity between frontline workers and backend business systems. It is designed for rugged use in transportation & logistics and healthcare applications.
The ScanPal EDA5S is Honeywell’s new ScanPal series mobile computer equipped with Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication.
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.
The EDA5S incorporates the all-new and powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes.
Outfitted with a rugged housing and IP67 rated sealing, the EDA5S can operate under rough usage and demanding environmental conditions. A 3060mAh battery provides 8 hours of power without interruption. The battery is also easily removable and supports quick charge 3.0.
The EDA5S (WWAN version) supports one nano SIM and one eSIM simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.
The EDA5S is built on Android 11 and upgradable to Android 13, reducing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.
| Display | |
|---|---|
| Gorilla Glass version | Gorilla Glass 5 |
| Display glass type | Gorilla Glass |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display | LED |
| Display resolution | 1440 x 720 pixels |
| Display diagonal | 14 cm (5.5″) |
| Memory | |
|---|---|
| Flash memory | 32 GB |
| Internal memory | 3 GB |
| Processor | |
|---|---|
| Efficient cores | 4 |
| Performance cores | 4 |
| Number of cores | 8 |
| Processor manufacturer | Qualcomm |
| Processor model | 662 |
| Processor family | Snapdragon |
| Processor frequency | 2 GHz |
| Network | |
|---|---|
| Near Field Communication (NFC) | Yes |
| Security algorithms | EAP, LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2, WPA3, WPA3-SAE |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
| Data network | Edge, HSPA+, LTE, UMTS |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| GPS Performance | |
|---|---|
| BeiDou | Yes |
| GLONASS | Yes |
| GPS (satellite) | Yes |
| Camera | |
|---|---|
| Front camera resolution (numeric) | 5 MP |
| Front camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Built-in camera | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Performance | |
|---|---|
| LED indicators | Yes |
| International Protection (IP) code | IP67 |
| Drop proof | Yes |
| Warranty period | 1 year(s) |
| Scanner type | 1D/2D |
| Barcode reader | Yes |
| Product colour | Black |
| Software | |
|---|---|
| Operating system installed | Android 11 |
| Power | |
|---|---|
| Battery recharge time (on) | 3.5 h |
| Battery voltage | 3.8 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | EDA5S |
| Battery capacity | 3060 mAh |
| Weight & dimensions | |
|---|---|
| Height | 75 mm |
| Depth | 11.2 mm |
| Width | 159 mm |
| Weight | 218 g |
| Packaging content | |
|---|---|
| Docking station included | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | -10 – 50 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| General | |
|---|---|
| Product family | ScanPal |
