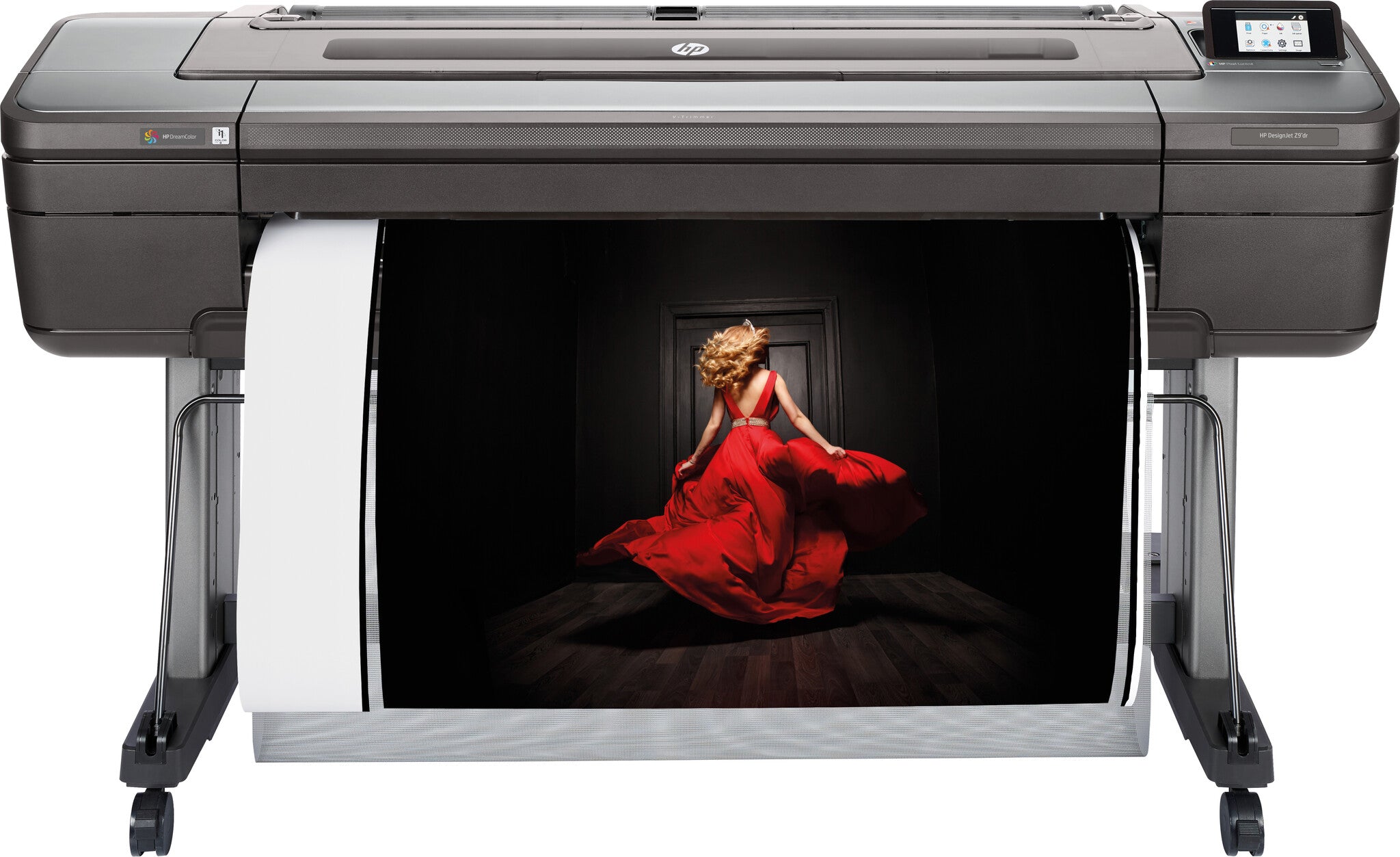

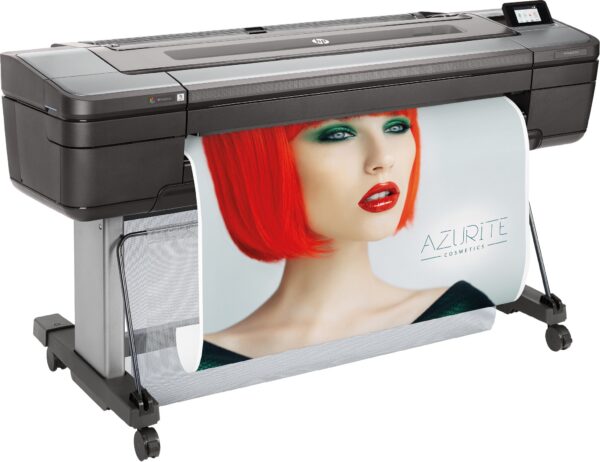

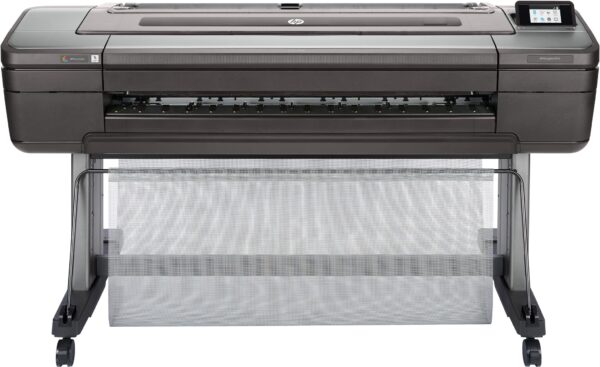

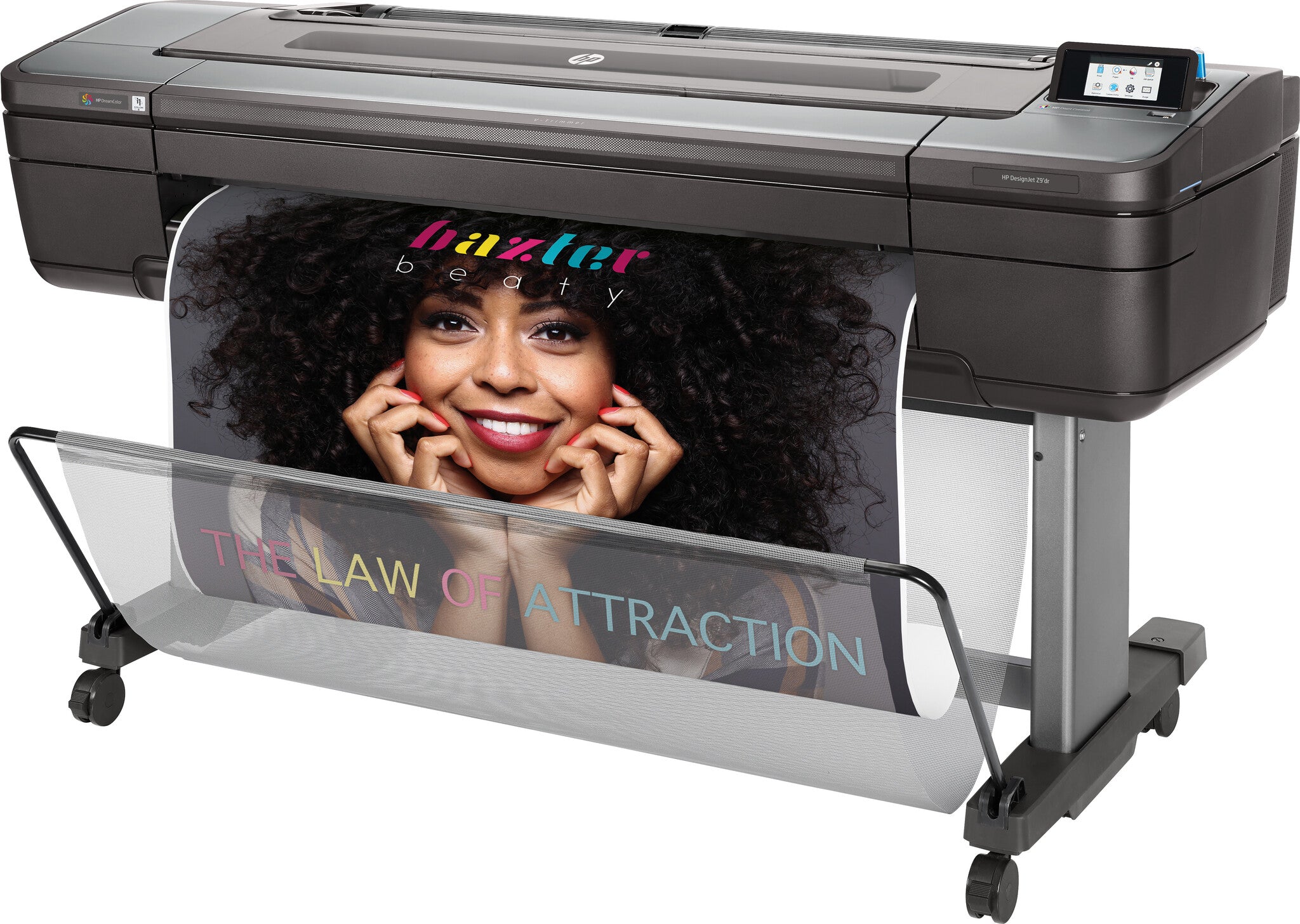

HP Designjet Z9+dr 44-in PostScript Printer with V-Trimmer
Deliver photo-quality prints 2.5 times faster[4] without losing quality. Cut post-processing time up to 20% with the first printer to include an integrated vertical trimmer.[3] Simplify your workflow with new tools in the HP Applications Center.[5]
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
| Print head |
5 |
| Borderless printing |
Yes |
| Printing colours |
Chromatic blue, Chromatic green, Chromatic red, Cyan, Grey, Magenta, Matte black, Photo black, Yellow |
| Page description languages |
HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF |
| Number of print cartridges |
9 |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Thermal inkjet |
| Paper handling |
| Roll paper |
Yes |
| Print margin roll |
5 mm |
| Maximum roll diameter |
13.5 cm |
| Media thickness |
0.8 mm |
| ISO A-series sizes (A0…A9) |
A0, A1, A2, A3, A4 |
| Maximum print size |
1118 x 1676 mm |
| Ports & interfaces |
| Direct printing |
Yes |
| USB 2.0 ports quantity |
1 |
| USB connector |
USB Type-A |
| Ethernet interface type |
Gigabit Ethernet |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Performance |
| Sound power level (standby) |
5.1 dB |
| Storage media |
HDD |
| Internal storage capacity |
500 GB |
| Built-in display |
Yes |
| Product colour |
Black, Silver |
| Power |
| Power consumption (standby) |
32 W |
| Power consumption (typical) |
100 W |
| Power consumption (off) |
0.1 W |
| Operational conditions |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 40 °C |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
98 kg |
| Height |
998 mm |
| Depth |
695 mm |
| Width |
1802 mm |
| Packaging data |
| Package weight |
137 kg |
| Package height |
718 mm |
| Package depth |
766 mm |
| Package width |
1950 mm |
| General |
| Product family |
Designjet |
| Logistics data |
| Harmonized System (HS) code |
84433210 |
