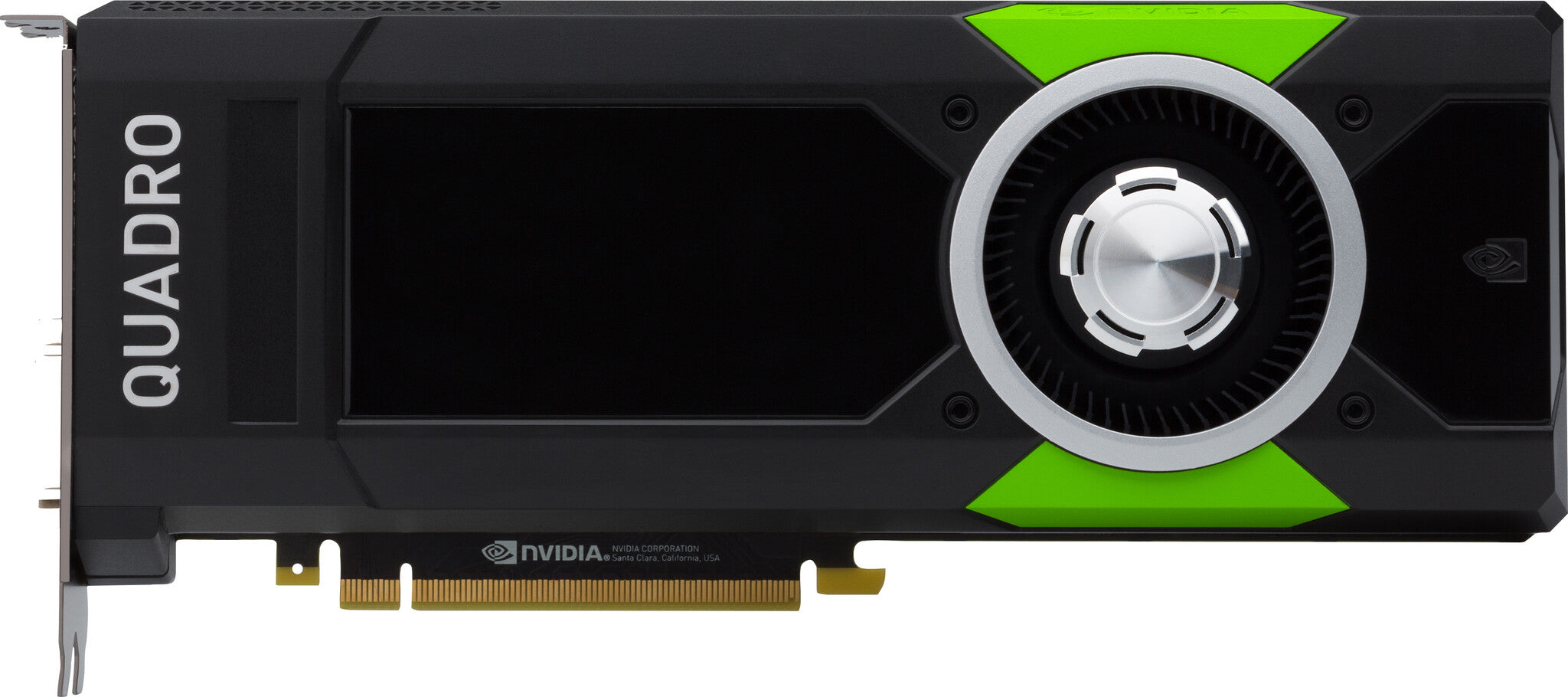

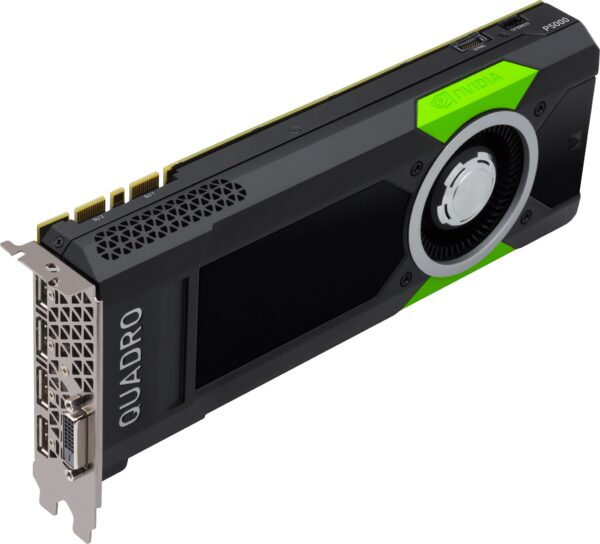

HP NVIDIA Quadro P5000 (16GB) GDDR5X
- NVIDIA Quadro P5000 16 GB GDDR5X
- 7680 x 4320 pixels 256 bit PCI Express x16 3.0
- DisplayPorts quantity: 4
- DVI-D ports quantity: 1
- DirectX version: 12.0 OpenGL version: 4.5
- 180 W
Overview
Work with large models and rendering tasks and complex simulations and add more life-like VR experiences to your workflow today while preparing for the challenges of tomorrow with the NVIDIA® Quadro® P5000 workstation graphics card, powered by NVIDIA Pascal™ GPU technology.
Features
Tackle the challenge of high fidelity, great resolutions, and complex visual effects with a card that has 256-bit, 16 GB GDDR5X memory with bandwidth up to 288 GB/s and 2560 CUDA® parallel processing cores.
Support quad 4K display outputs, or two 5K displays, with four DisplayPort™ 1.4 connectors. Then easily manage them with included NVIDIA® Mosaic™ and NVIDIA® nView® technologies. Frame-lock multiple displays with the optional NVIDIA® Sync card.
Help ensure your projects sound as good as they look with connections that support DisplayPort™ with Audio and 3D Stereo.
Compatible with the Z440, Z640 and Z840 Workstation system.
| Processor | |
|---|---|
| CUDA cores | 2560 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Quadro P5000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR5X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| NVIDIA 3D Vision | Yes |
| HDCP | Yes |
| OpenGL version | 4.5 |
| Shader model version | 5.1 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | Yes |
| Design | |
|---|---|
| HP segment | Business |
| Number of slots | 2 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 180 W |
| Weight & dimensions | |
|---|---|
| Height | 111.8 mm |
| Length | 266.7 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Other features | |
|---|---|
| Compatible products | Z440Z640Z840 |
