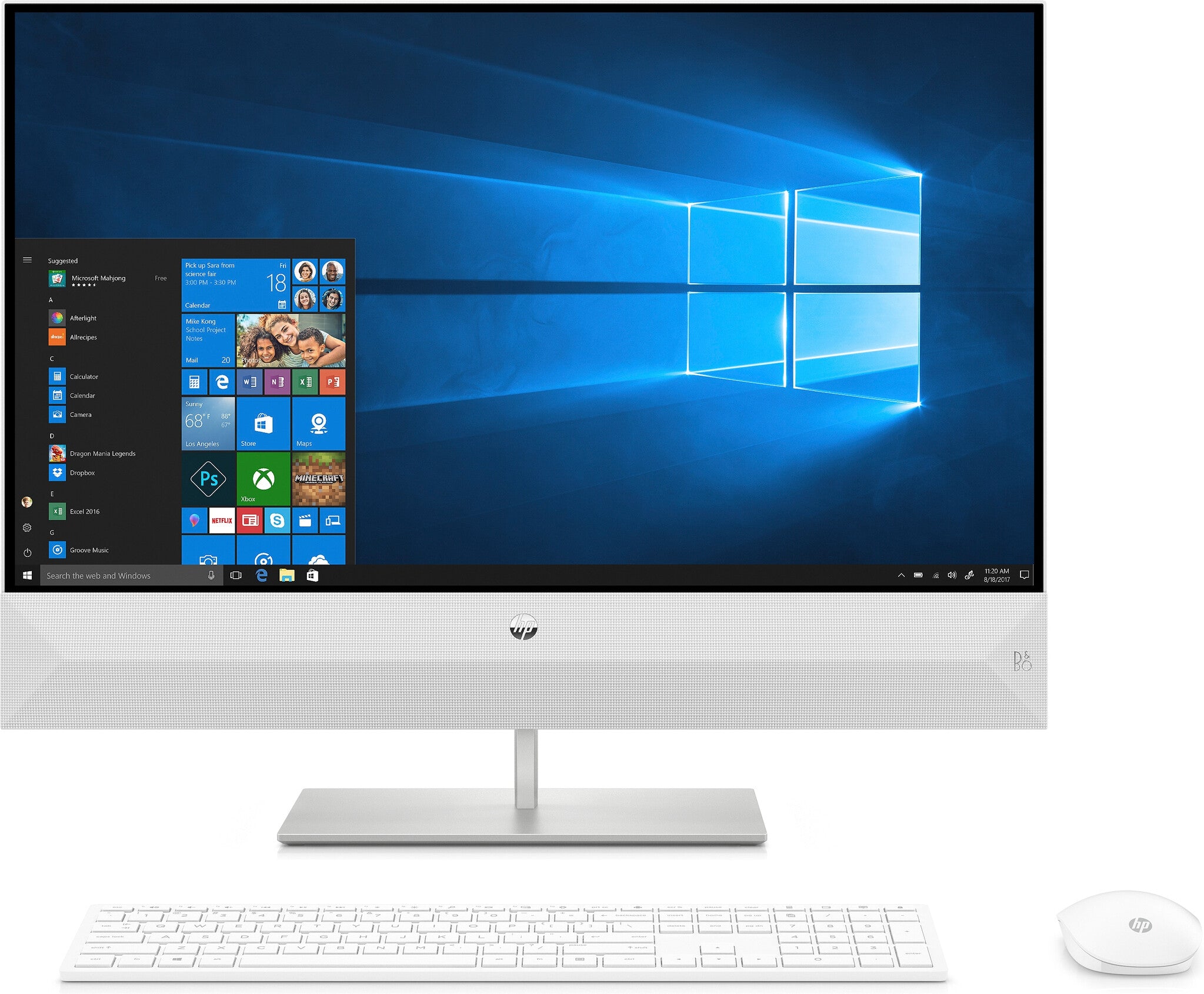

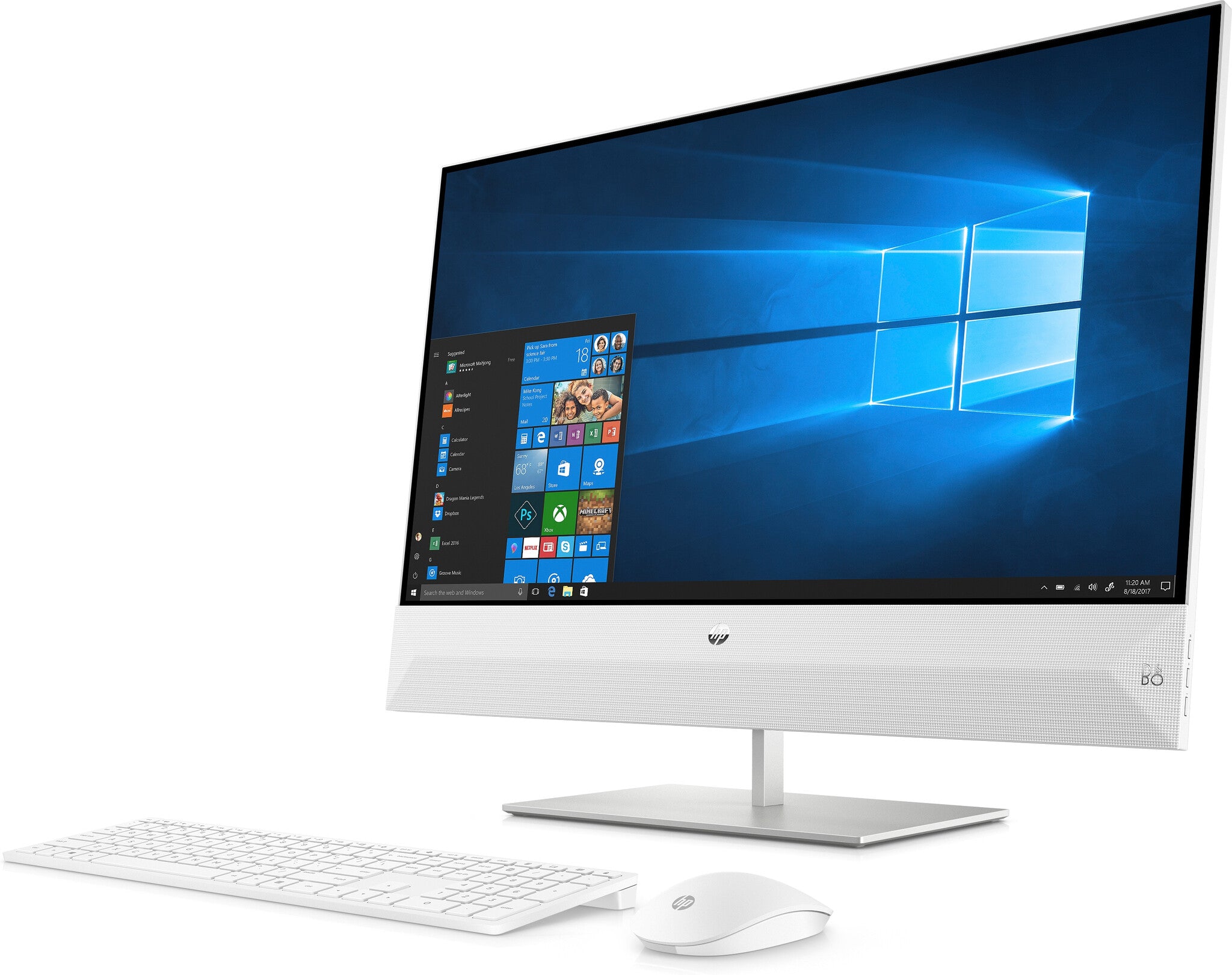

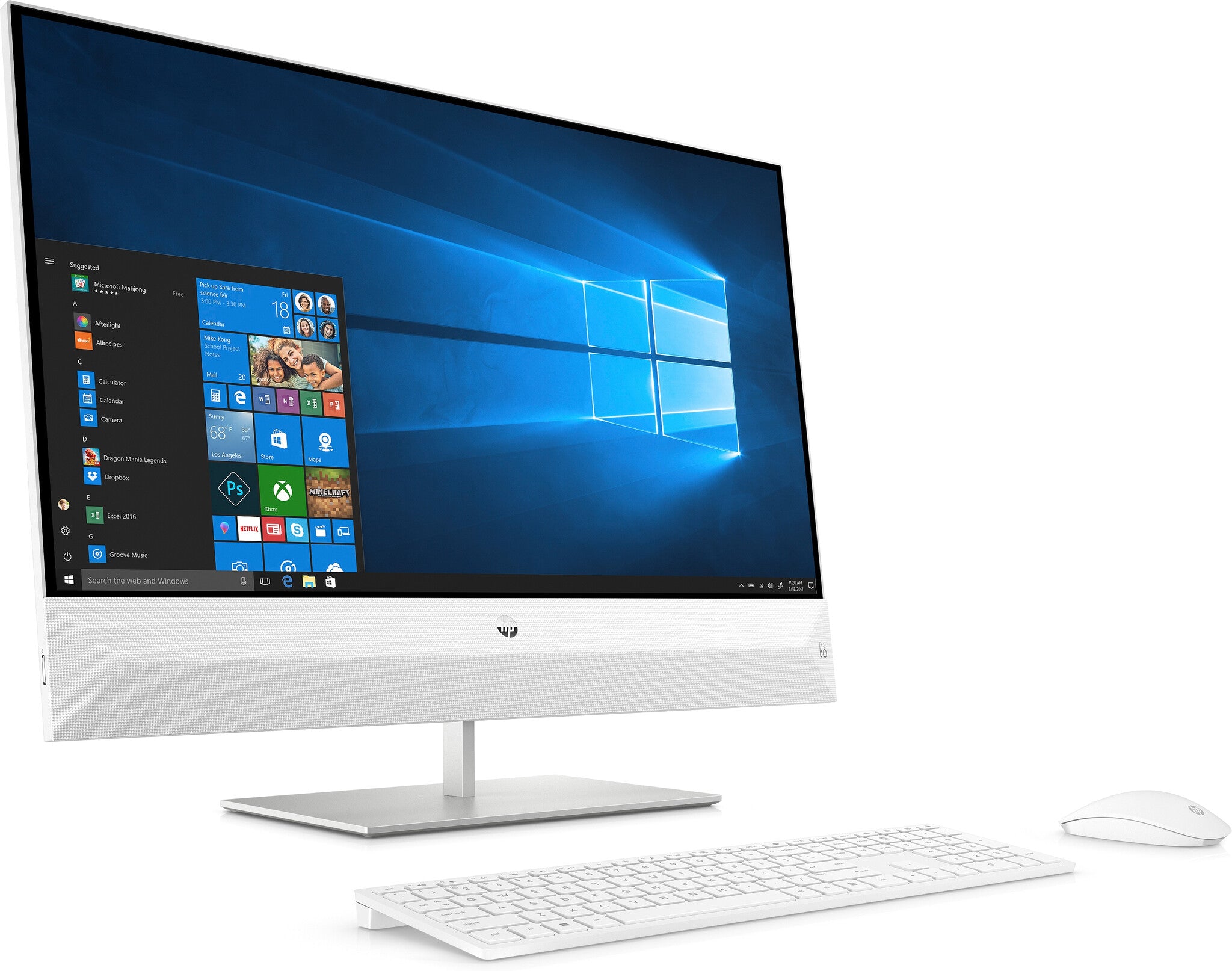

HP Pavilion 27-xa0036na Intel® Core™ i5 i5-9400T 68.6 cm (27″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 2.26 TB HDD+SSD Windows 10 Home Wi-Fi 5 (802.11ac) White
- Windows 10 Home 64-bit
- Intel Core i5-9400T (9MB Cache, 1.8GHz)
- 68.6 cm (27″) Full HD 1920 x 1080 IPS
- 8GB (2666MHz) DDR4-SDRAM (1 x 8) & 2000GB HDD, 256GB SSD
Freedom and privacy at the center of your home
Bring your digital world to the center of your home with the strikingly designed Pavilion All-in-One PC. An integrated pop-up camera safeguards what matters most, so you can create, work, and play with confidence.
| Display |
| Colour gamut |
72% |
| Screen shape |
Flat |
| RGB colour space |
NTSC |
| Anti-glare screen |
Yes |
| Panel type |
IPS |
| Display brightness |
300 cd/m² |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
68.6 cm (27″) |
| Processor |
| Memory bandwidth supported by processor (max) |
41.6 GB/s |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
128 GB |
| PCI Express slots version |
3.0 |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×16, 2×8, 1×8+2×4 |
| Tjunction |
100 °C |
| Configurable TDP-down |
25 W |
| Configurable TDP-down frequency |
1.2 GHz |
| Thermal Design Power (TDP) |
35 W |
| System bus rate |
8 GT/s |
| Processor cache type |
Smart Cache |
| Processor cache |
9 MB |
| Processor frequency |
1.8 GHz |
| Processor boost frequency |
3.4 GHz |
| Processor threads |
6 |
| Processor cores |
6 |
| Processor model |
i5-9400T |
| Processor generation |
9th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory form factor |
DIMM/SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
2666 MHz |
| Memory slots type |
SO-DIMM |
| Memory slots |
1 |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| HDD interface |
SATA |
| HDD speed |
5400 RPM |
| HDD capacity |
2 TB |
| Number of HDDs installed |
1 |
| Total HDDs capacity |
2 TB |
| Storage media |
HDD+SSD |
| Total storage capacity |
2.26 TB |
| Graphics |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card ID |
0x3E92 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1050 MHz |
| Maximum on-board graphics card memory |
64 GB |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| Audio |
| Audio system |
B&O PLAY |
| Built-in microphone |
Yes |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
| Built-in camera |
Yes |
| Network |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer |
Realtek |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Microphone in |
No |
| HDMI version |
1.4 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Country of origin |
China |
| Product colour |
White |
| Performance |
| Motherboard chipset |
Intel® H370 |
| Product type |
All-in-One PC |
| Software |
| Bundled software |
Dropbox, McAfee LiveSafe |
| Trial software |
Microsoft Office 365 |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel TSX-NI |
No |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
37.5 x 37.5 mm |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Scalability |
1S |
| Intel Clear Video Technology |
Yes |
| Thermal solution specification |
PCG 2015A |
| Intel 64 |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
134893 |
| CPU configuration (max) |
1 |
| Brand-specific features |
| HP Software provided |
HP Connection Optimizer |
| HP front camera |
HP TrueVision FHD IR |
| HP Display Control |
Yes |
| HP Audio Switch |
Yes |
| HP speaker type |
HP Dual Speakers |
| HP JumpStart |
Yes |
| Power |
| AC adapter power |
120 W |
| General |
| Product family |
Pavilion |
| Product series |
27 |
| Weight & dimensions |
| Package weight |
11.9 kg |
| Package height |
598 mm |
| Package depth |
240 mm |
| Package width |
712 mm |
| Weight (with stand) |
7.65 kg |
| Height (with stand) |
483 mm |
| Depth (with stand) |
194 mm |
| Width (with stand) |
612 mm |
| Sustainability |
| Sustainability certificates |
EPEAT Silver, ENERGY STAR |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Other features |
| Display diagonal (metric) |
68.6 cm |
| Autonomy mode |
No |
| Detachable display |
No |
| 3D |
No |
