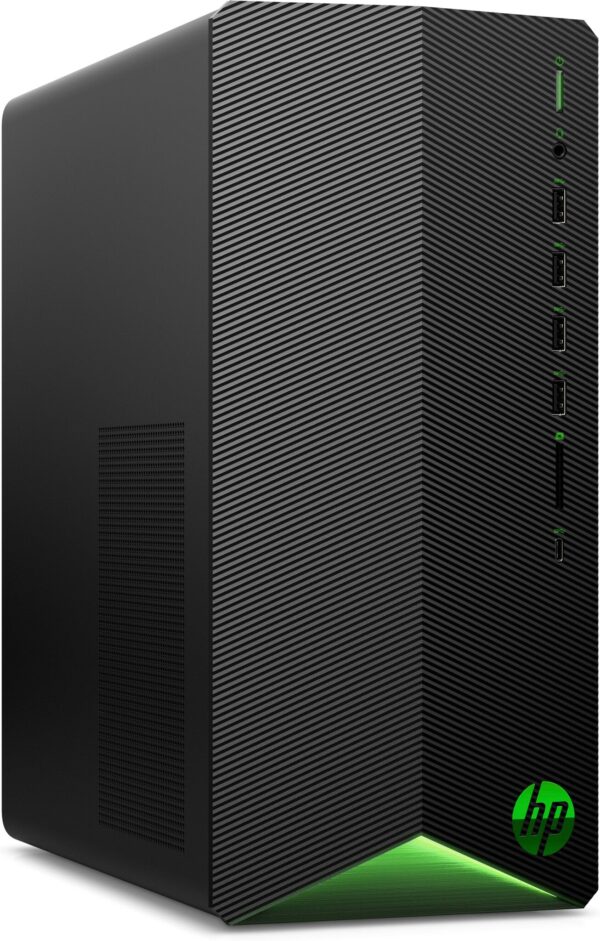

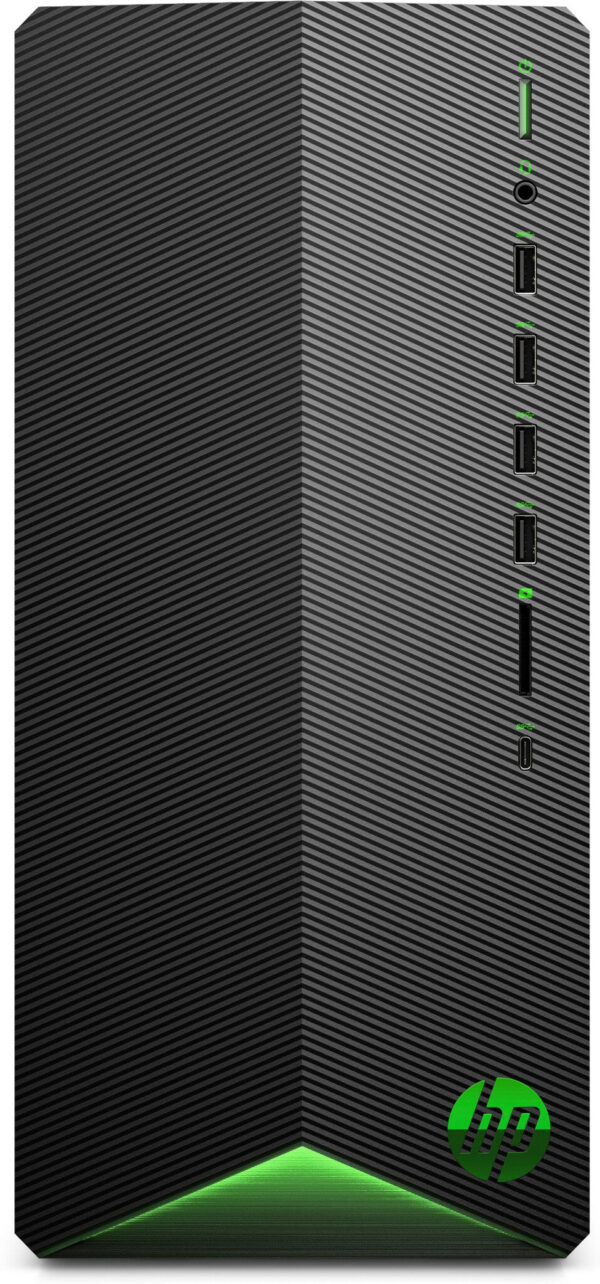

HP Pavilion Gaming TG01-1008na Intel® Core™ i5 i5-10400F 8 GB DDR4-SDRAM 1.26 TB HDD+SSD NVIDIA® GeForce® GTX 1650 SUPER Windows 11 Home Mini Tower PC Black
- Intel® Core™ i5-10400F (2.9 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)
- Windows 11 Home
- NVIDIA® GeForce® GTX 1650 SUPER™ (4 GB GDDR6 dedicated)
- 8 GB memory; 1 TB HDD storage; 256 GB SSD storage
Powerful. Upgradable. It’s on.
Get ready to game on your terms. This powerful rig is built to keep up with the games of today and tomorrow. Beneath its compact and sleek exterior, you will find all the performance you need to play with confidence and room to expand and upgrade.
| Processor |
| Memory bandwidth supported by processor (max) |
41.6 GB/s |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
128 GB |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×16, 2×8, 1×8+2×4 |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Processor codename |
Comet Lake |
| Thermal Design Power (TDP) |
65 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Processor cache type |
L3 |
| Processor cache |
12 MB |
| Processor socket |
LGA 1200 (Socket H5) |
| Processor frequency |
2.9 GHz |
| Processor boost frequency |
4.3 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
i5-10400F |
| Processor generation |
10th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Non-ECC |
Yes |
| Memory clock speed |
2666 MHz |
| Memory slots |
2x DIMM |
| Memory layout (slots x size) |
2 x 4 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
Yes |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express, NVMe |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| HDD speed |
7200 RPM |
| HDD interface |
SATA |
| HDD capacity |
1 TB |
| Number of HDDs installed |
1 |
| Total HDDs capacity |
1 TB |
| Number of storage drives installed |
2 |
| Storage media |
HDD+SSD |
| Optical drive type |
No |
| Total storage capacity |
1.26 TB |
| Graphics |
| Graphics card DVI-D ports quantity |
1 |
| Graphics card HDMI ports quantity |
1 |
| Graphics card DisplayPorts quantity |
1 |
| On-board graphics card model |
Not available |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA® GeForce® GTX 1650 SUPER |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
No |
| Discrete graphics card |
Yes |
| Network |
| MU-MIMO |
Yes |
| Miracast |
Yes |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Antenna type |
1×1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer |
Realtek |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
4 |
| Expansion slots |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| Design |
| Country of origin |
China |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Vertical |
| Chassis type |
Mini Tower |
| Performance |
| Password protection |
Yes |
| Audio output channels |
5.1 channels |
| Motherboard form factor |
mini ITX |
| Motherboard chipset |
Intel H470 |
| Market positioning |
Gaming |
| Product type |
PC |
| Software |
| Bundled software |
Dropbox |
| Trial software |
25 GB Dropbox storage for 12 months |
| Pre-installed software |
Alexa; Netflix; ExpressVPN (30 day free trial); LastPass Premium (30 day free trial), 1 month trial for new Microsoft 365 customers, McAfee LiveSafe™ |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Processor special features |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel 64 |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel® Secure Key |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Processor package size |
37.5 x 37.5 mm |
| Intel Trusted Execution Technology |
No |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Execute Disable Bit |
Yes |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Thermal solution specification |
PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
199278 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Brand-specific features |
| HP segment |
Home |
| HP Software provided |
HP Audio Switch; HP Support Assistant; OMEN Gaming Hub |
| HP Security tools |
Kensington Security lock slot |
| HP Support Assistant |
Yes |
| HP OMEN Command Center |
Yes |
| Weight & dimensions |
| Package weight |
8.2 kg |
| Package height |
287 mm |
| Package depth |
400 mm |
| Package width |
499 mm |
| Weight |
5.96 kg |
| Height |
307 mm |
| Depth |
304 mm |
| Width |
337.4 mm |
| Packaging content |
| Screws included |
Yes |
| Display included |
No |
| General |
| Product family |
Pavilion Gaming |
| Product series |
TG01 |
| Other features |
| Graphics card interface |
PCIe x16 |
| Number of free internal memory expansion slots |
2 |
