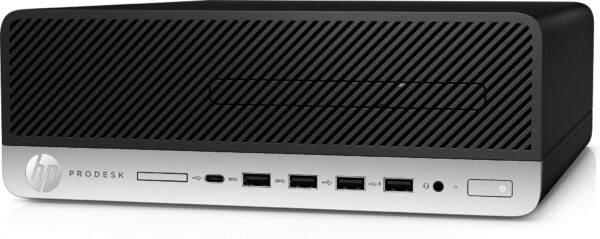

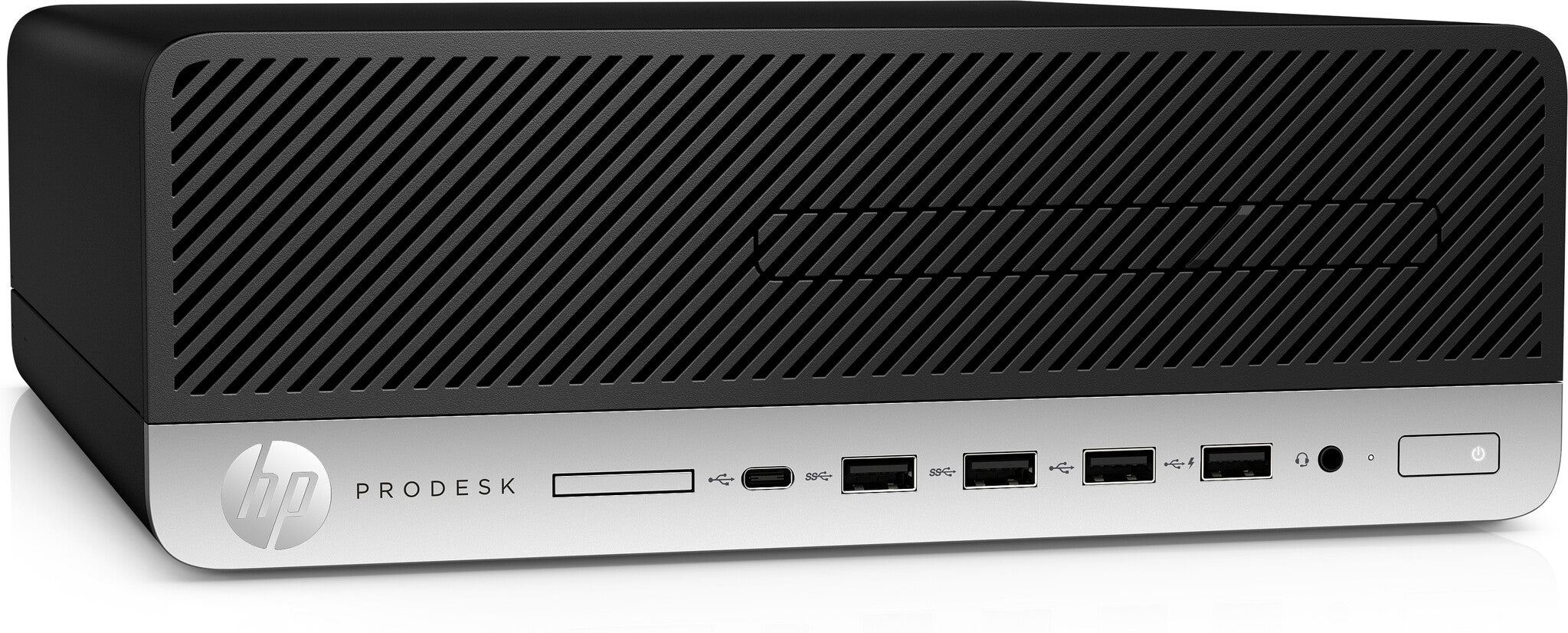

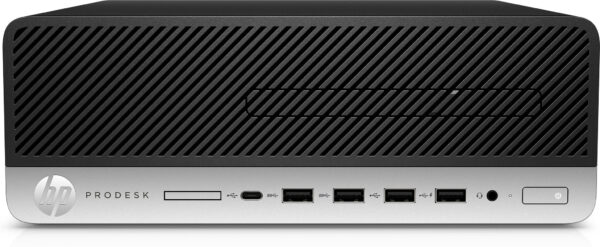

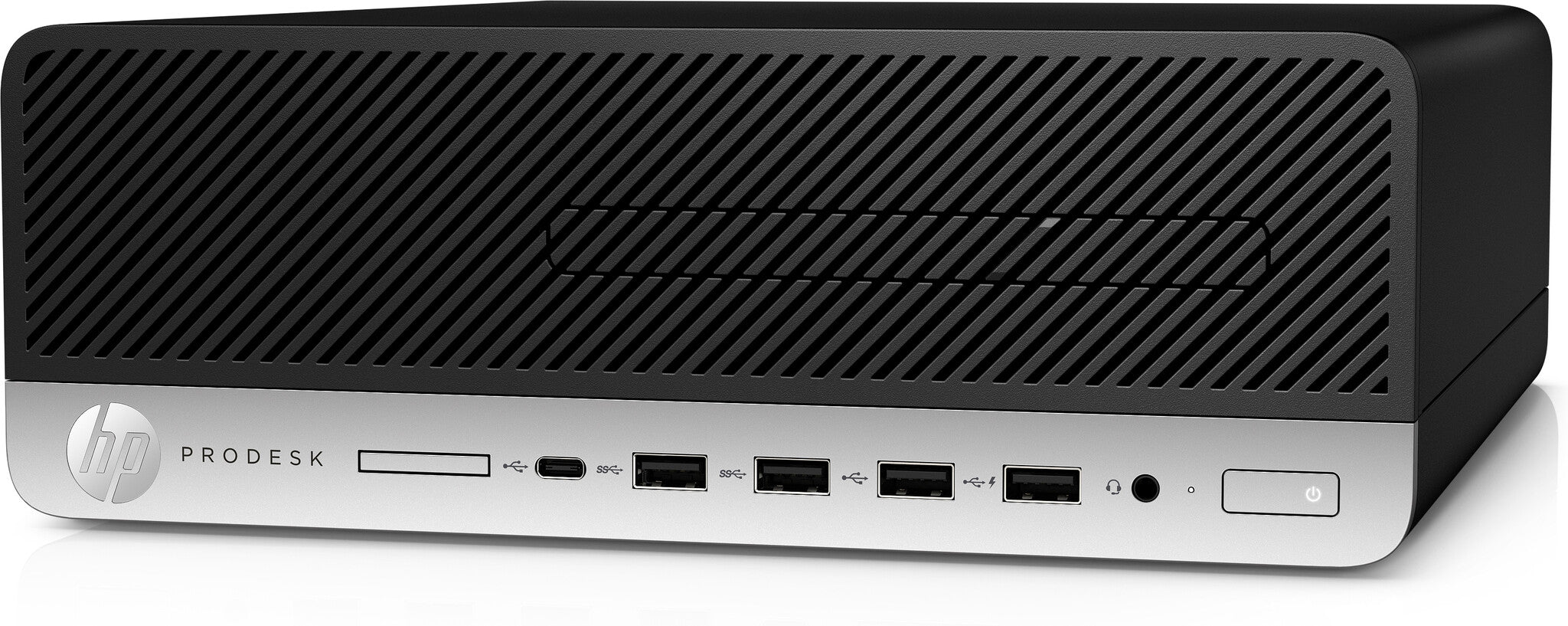

HP ProDesk 600 G5 Intel® Core™ i5 9500 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF PC Black
- Windows 10 Pro 64-bit
- Intel Core i5-9500 (9MB Cache, 3GHz)
- 8GB (2666MHz) DDR4-SDRAM (2 x 4) & 256GB SSD
Powerful and ready for expansion
Powered for business, the HP ProDesk 600 SFF features strong security, and comprehensive manageability features in a stylish and compact design for the modern workplace.
| Processor |
| Memory bandwidth supported by processor (max) |
41.6 GB/s |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
128 GB |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×8+2×4, 1×16, 2×8 |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Thermal Design Power (TDP) |
65 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Processor cache type |
L3 |
| Processor cache |
9 MB |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor frequency |
3 GHz |
| Processor boost frequency |
4.4 GHz |
| Processor threads |
6 |
| Processor cores |
6 |
| Processor model |
9500 |
| Processor generation |
9th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory clock speed |
2666 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
2 x 4 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
8 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
NVMe |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card ID |
0x3E92 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1100 MHz |
| Maximum on-board graphics card memory |
64 GB |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
2 |
| DVI port |
No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Design |
| Country of origin |
China |
| Product colour |
Black |
| Chassis type |
SFF |
| Performance |
| Audio chip |
Conexant CX20632 |
| Motherboard chipset |
Intel Q370 |
| Market positioning |
Business |
| Product type |
PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Clear Video Technology |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel 64 |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel® Secure Key |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Processor package size |
37.5 x 37.5 mm |
| Intel Trusted Execution Technology |
Yes |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Execute Disable Bit |
Yes |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Thermal solution specification |
PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
134895 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Brand-specific features |
| HP segment |
Business |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Package height |
499 mm |
| Package depth |
230 mm |
| Package width |
399 mm |
| Weight |
4.5 kg |
| Height |
296 mm |
| Depth |
270 mm |
| Width |
95 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
ProDesk |
| Product series |
600 |
| Logistics data |
| Harmonized System (HS) code |
84715000 |
