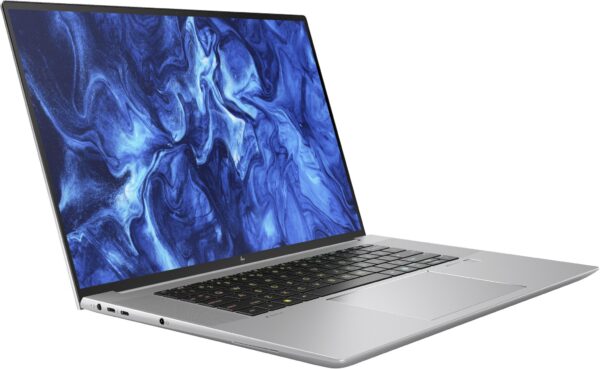

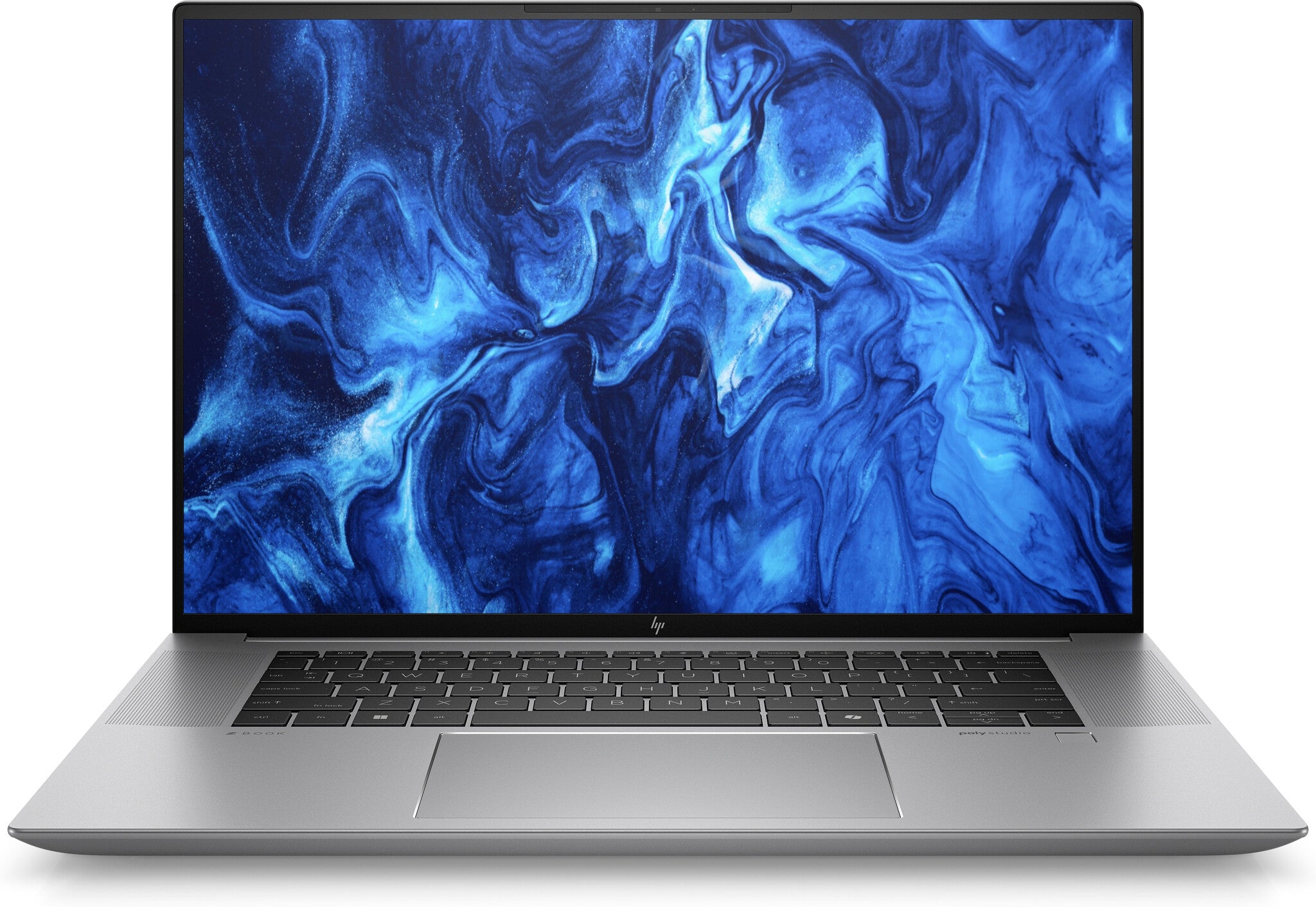

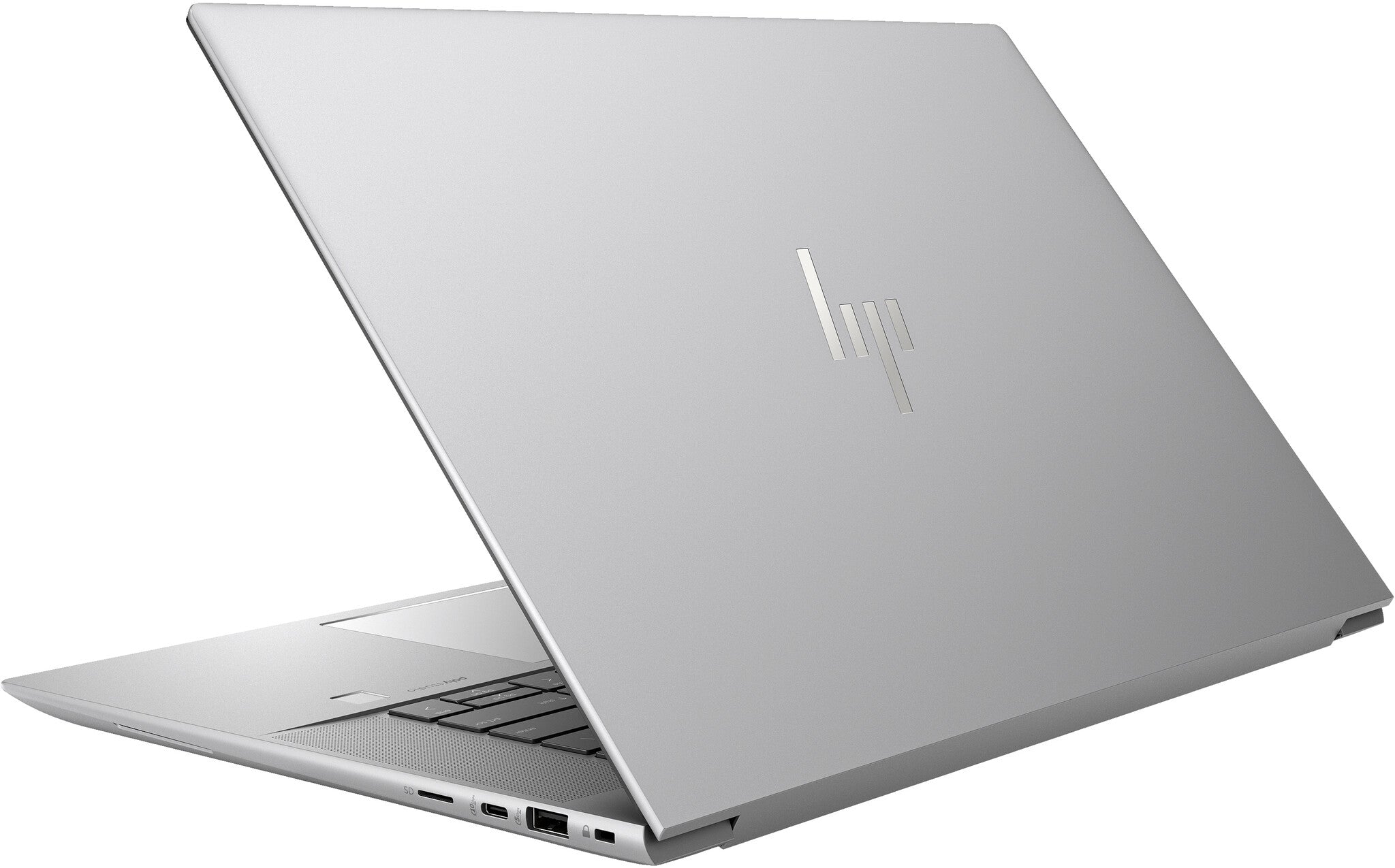

HP ZBook Studio 16 inch G11 Mobile Workstation PC – Data Science Intel Core Ultra 7 155H 40.6 cm (16″) WQUXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Wi-Fi 7 (802.11be) Windows 11 Pro Grey
- Intel Core™ Ultra 7 155H (up to 4.8 GHz with Intel Turbo Boost Technology, 24 MB L3 cache, 16 cores, 22 threads)
- Windows 11 Pro
- 40.6 cm (16″) diagonal WQUXGA display
- NVIDIA GeForce RTX™ 4070 Laptop GPU (8 GB GDDR6 dedicated)
- 32 GB DDR5-5600 MT/s (2 x 16 GB), 1 TB PCIe Gen4 NVMe™ TLC M.2 SSD
Powerfully immersive. Perfectly sized
Be ready when inspiration strikes. Packed with professional performance in an incredibly sleek PC that comfortably fits in your bag, the ZBook Studio is engineered to get you in the zone and help you stay focused. Now you can build complex assemblies, render in real-time or visualize data—from anywhere.
| Design |
| Original brand name |
HP |
| Market positioning |
Performance |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Mobile workstation |
| Display |
| Maximum refresh rate |
120 Hz |
| Display diagonal (metric) |
40.6 cm |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Display bezel technology |
Micro-Edge |
| Anti-glare screen |
Yes |
| Panel type |
IPS |
| HD type |
WQUXGA |
| Touchscreen |
No |
| Display resolution |
3840 x 2400 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Processor cache type |
L3 |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor model |
155H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Maximum frequency NPU |
1.4 GHz |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Memory channels |
Dual-channel |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD memory type |
TLC |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 4070 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
2 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Keyboard |
| Keyboard special features |
Spill-resistant |
| Input device model |
HP Premium Quiet Keyboard |
| Full-size keyboard |
Yes |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Clickpad |
| Software |
| Operating system installed |
Windows 11 Pro |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
198828255051 |
| HP segment |
Business |
| Battery |
| Fast charging time (50%) |
30 min |
| Fast charging |
Yes |
| Battery capacity |
86 Wh |
| Number of battery cells |
6 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
150 W |
| Security |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Fingerprint reader |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
TCO |
| Sustainable technologies and materials |
Low Halogen |
| Weight & dimensions |
| Height |
19 mm |
| Depth |
242 mm |
| Width |
356 mm |
| Weight |
1.73 kg |
| Packaging data |
| Package height |
345 mm |
| Package depth |
69 mm |
| Package width |
552 mm |
| General |
| Product family |
ZBook Studio |
| Carbon footprint |
| Carbon emissions, end-of-life (kg of CO2e) |
1 |
| Total carbon footprint (kg of CO2e) |
360 |
| Carbon emissions, manufacturing (kg of CO2e) |
297 |
| Carbon emissions, logistics (kg of CO2e) |
25 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
41 |
| Other features |
| Manufacturer warranty |
1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. |
