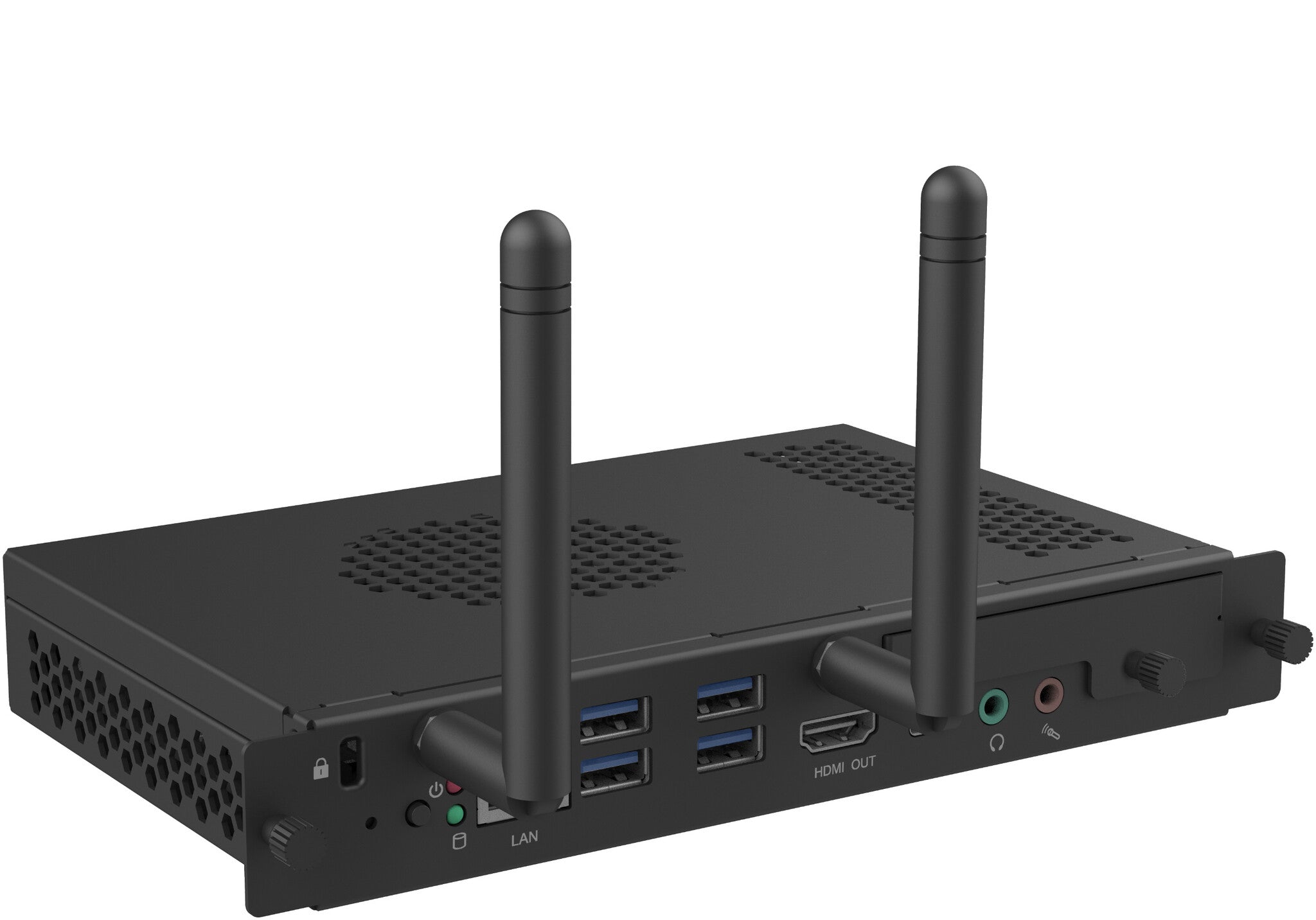

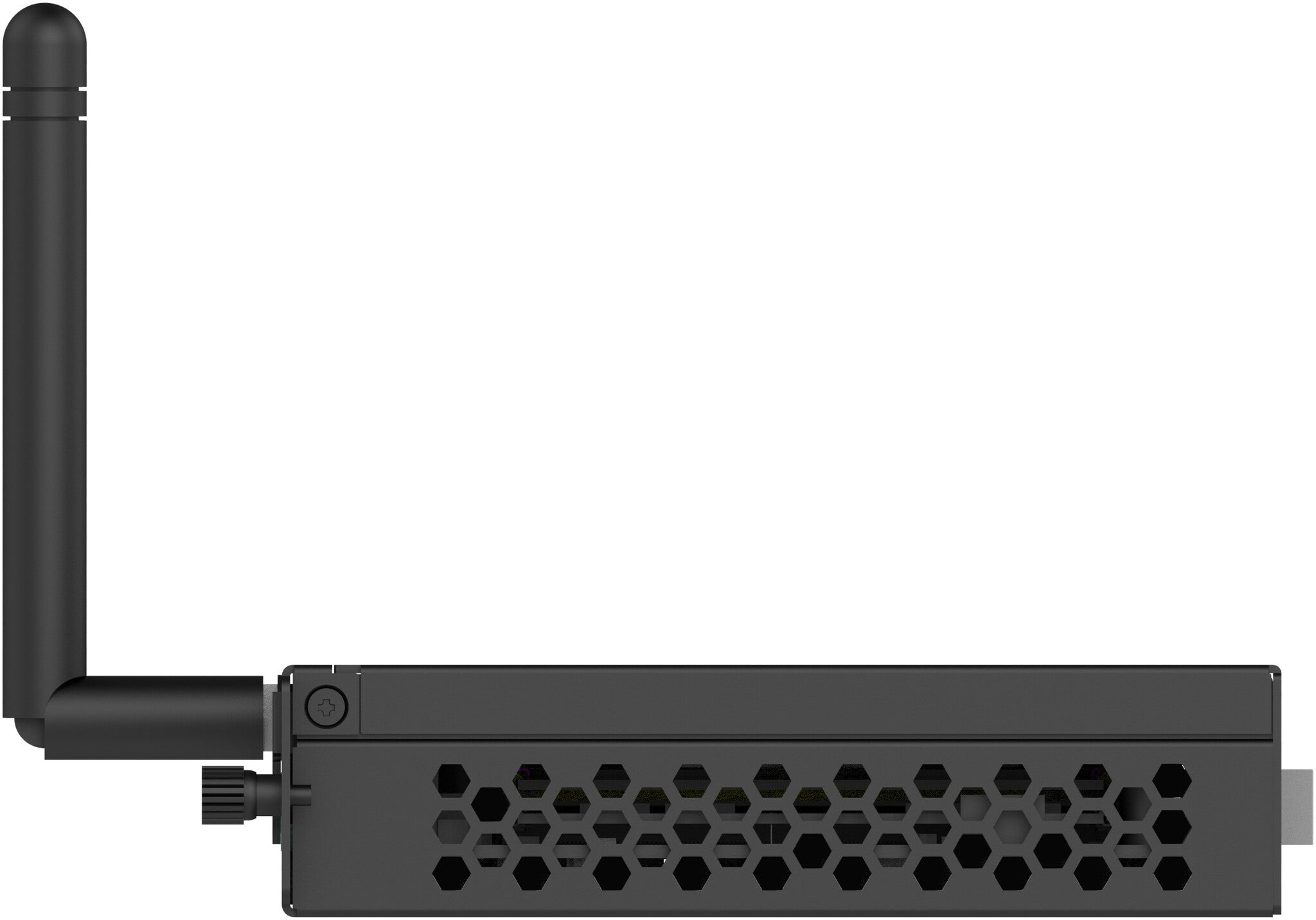

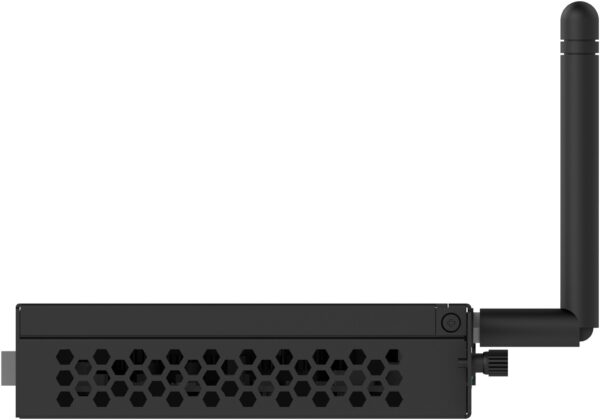

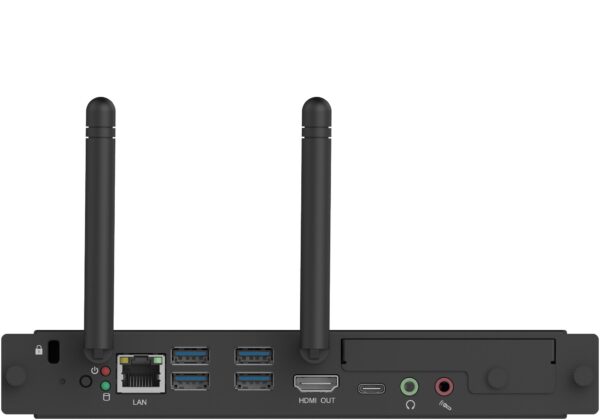

iiyama OPC51103BC PC/workstation Intel® Core™ i5 i5-1135G7 8 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise Mini PC Black
- Mini PC Black
- Intel® Core™ i5 i5-1135G7
- 8 GB DDR4-SDRAM
- 256 GB SSD
- Intel Iris Xe Graphics
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth 4.2
- Windows 10 IoT Enterprise 64-bit
An Intel i5 OPS slot PC with Windows 10 IoT Enterprise and TPM 2.0 (Trusted Platform Module)
This mini OPS PC with Intel Core i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama OPS slot PC and get started right away.
The module is standard Intel OPS compatible, including the following iiyama displays: 65”: TE6502MIS-B1AG, 75″: TE7502MIS-B1AG, 86”: TE8602MIS-B1AG and the 55″: TE5504MIS-B3AG, 98″: TE9804MIS-B1AG
| Processor |
| Configurable TDP-down |
12 W |
| Configurable TDP-down frequency |
0.9 GHz |
| Configurable TDP-up frequency |
2.4 GHz |
| Configurable TDP-up |
28 W |
| Processor cache type |
Smart Cache |
| Processor cache |
8 MB |
| Processor socket |
BGA 1449 |
| Processor boost frequency |
4.2 GHz |
| Processor cores |
4 |
| Processor model |
i5-1135G7 |
| Processor generation |
11th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| SSD interface |
M.2 |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| Number of execution units |
80 |
| On-board graphics card DirectX version |
12.1 |
| On-board graphics card OpenGL version |
4.6 |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Intel® Thunderbolt 4 |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Design |
| Intel® vPro™ Platform Eligibility |
No |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Performance |
| Status |
Launched |
| Trusted Platform Module (TPM) |
Yes |
| Product type |
Mini PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 IoT Enterprise |
| Processor special features |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® High Definition Audio (Intel® HD Audio) |
Yes |
| Intel® Smart Sound Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Trusted Execution Technology |
No |
| Supported instruction sets |
AVX 2.0, AVX-512, SSE4.1, SSE4.2 |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Power |
| Power consumption (typical) |
65 W |
| Power consumption (standby) |
1.5 W |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Package weight |
970 g |
| Package height |
72 mm |
| Package depth |
267 mm |
| Package width |
192 mm |
| Weight |
750 g |
| Height |
30 mm |
| Depth |
202 mm |
| Width |
133.5 mm |
| Packaging content |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
