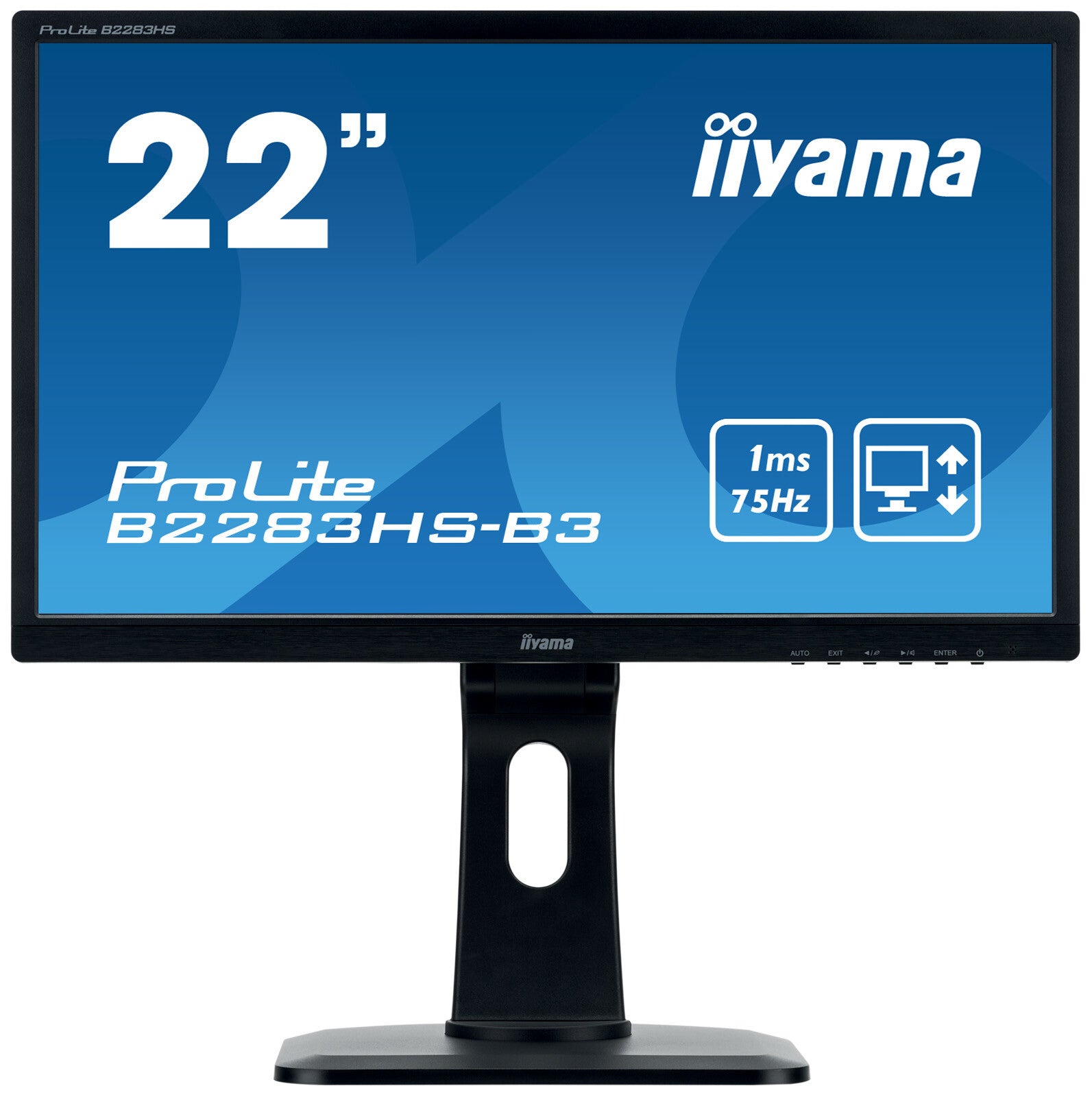

iiyama ProLite B2283HS-B3 LED display 54.6 cm (21.5″) 1920 x 1080 pixels Full HD Black
- 54.6 cm (21.5″) LED TN
- Full HD 1920 x 1080 pixels 16:9
- 75 Hz 1 ms 250 cd/m² 1000:1
- Flicker-free technology
- 21.8 W
The ProLite B2283HS is an excellent 22” Full HD LED-backlit monitor with 1920 x 1080p resolution. It features 1ms response time and 80 000 000 : 1 Advanced Contrast Ratio, assuring clear and vibrant picture quality and high contrast. Triple Input support ensures compatibility with the latest installed graphics cards and embedded Notebook outputs. The ergonomic stand offers 13 cm height adjustment with pivot and swivel, making this screen suitable for a wide range of applications and environments where workplace flexibility and ergonomics are key factors.The monitor is TCO Certified. A perfect solution for education, local government, business and finance markets.
HAS + Pivot

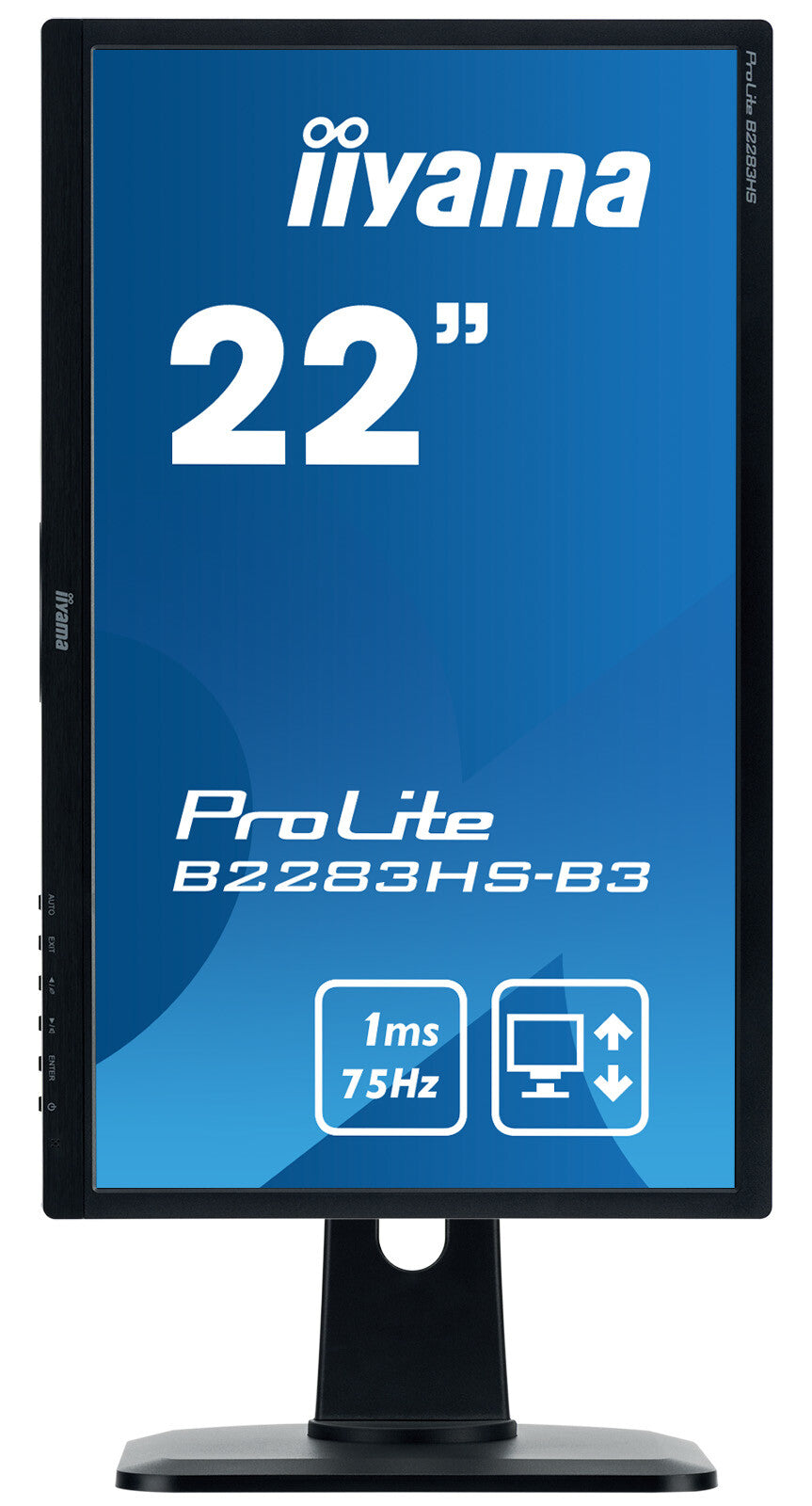

With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
Flicker free
Controlling the monitor’s brightness through electric current has allowed us to eliminate the screen flicker. You can easily test it yourself – just look at the screen via you smartphone’s camera. Your eyes will love it.
OverDrive ON / OFF
When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.
Speakers and headphones
Playing with friends? Use the integrated high quality speakers. Don’t want to disturb anybody? Plug your headset to the headphone socket and turn the volume up.
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
| Display | |
|---|---|
| Separate H/V sync | Yes |
| 3D | No |
| NTSC coverage (typical) | 72% |
| sRGB coverage (typical) | 99% |
| Colour gamut standard | sRGB |
| Viewable size, vertical | 26.8 cm |
| Viewable size, horizontal | 47.7 cm |
| Vertical scan range | 55 – 75 Hz |
| Horizontal scan range | 30 – 80 kHz |
| Pixel pitch | 0.248 x 0.248 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (dynamic) | 80000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Display surface | Matt |
| Response time | 1 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | TN |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5″) |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Business |

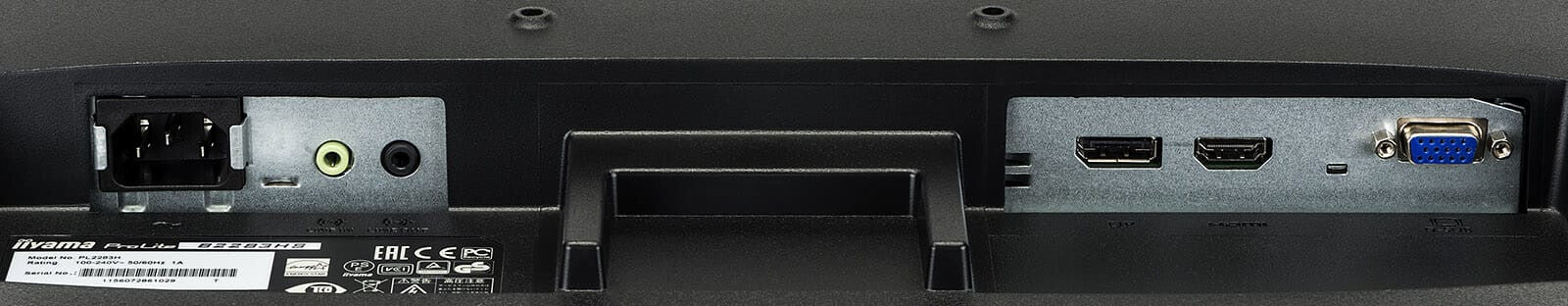

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP | Yes |
| Headphone out | Yes |
| Audio input | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Plug and Play | Yes |
| Number of OSD languages | 11 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 – 22° |
| Tilt adjustment | Yes |
| Swivel angle range | -45 – 45° |
| Swivelling | Yes |
| Pivot angle | 0 – 90° |
| Pivot | Yes |
| Adjustable height (max) | 13 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 32 kWh |
| Energy efficiency scale | A++ to E |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 21.8 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 85% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Height (without stand) | 309 mm |
| Depth (without stand) | 56.5 mm |
| Width (without stand) | 505 mm |
| Weight (with stand) | 4.8 kg |
| Height (with stand) | 501.5 mm |
| Depth (with stand) | 230 mm |
| Width (with stand) | 505 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, HDMI |
| Stand included | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Energy efficiency class (old) | B |
| Certification | TCO, CE, TUV-GS, VCCI-B, CU |
| TV tuner integrated | No |
| On/off switch | Yes |
| Display | LED |
| Thin Client | |
|---|---|
| Thin client installed | No |
