iiyama ProLite XCB3494WQSN-B5 LED display 86.4 cm (34″) 3440 x 1440 pixels UltraWide Quad HD Black
- KVM Switch
- USB-C Dock
- Curved Design 1500R
- Ultra Wide – UWQHD
- Has 150mm

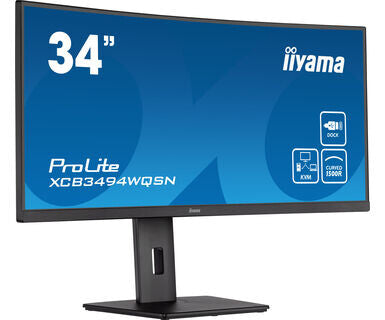

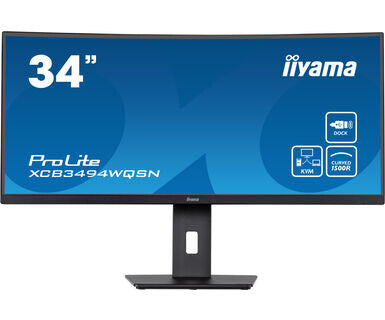

34″ (86.4 cm) curved monitor with UWQHD resolution, a KVM switch, USB-C dock and a height-adjustable stand
The 34″ (86.4 cm) XCB3494WQSN curved monitor guarantees a comfortable and immersive viewing experience thanks to the 1500R curvature of the screen. The integrated VA panel with UWQHD resolution (3440x1440) offers excellent image quality and high contrast values. Equipped with a KVM Switch, XCB3494WQSN allows connection to multiple computers to be operated from one console (monitor, keyboard, mouse) The USB-C dock provides a clean and convenient workspace by using only a single cable, to allow the simultaneous transmission of data, video and audio signals, all without quality loss.In addition, the connected device is charged directly by the monitor.When the monitor is connected to the Internet via a LAN cable,your notebook is also automatically connected to the network.
The 150mm height-adjustable stand ensures you can adjust the position of the screen to your liking, and the flicker-free panel with blue light reduction function reduces eye fatigue.
The height-adjustable base allows you to position the screen perfectly, ensuring optimal viewing comfort. Is good for your health and also increases productivity.
| Display | |
|---|---|
| NTSC coverage (typical) | 93% |
| sRGB coverage (typical) | 99% |
| Display diagonal (metric) | 86.4 cm |
| Horizontal scan range | 30 – 185 kHz |
| Pixel pitch | 0.232 x 0.232 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (dynamic) | 8000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Display surface | Matt |
| Response time | 0.4 ms |
| Display brightness (typical) | 300 cd/m² |
| Panel type | VA |
| HD type | UltraWide Quad HD |
| Touchscreen | No |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34″) |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Built-in KVM switch | Yes |
| Headphone out | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| USB Power Delivery up to | 65 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-A downstream ports quantity | 3 |
| Number of USB Type-C upstream ports quantity | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 – 23° |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1396054 |
| Power supply type | Internal |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 56 W |
| Energy efficiency class (SDR) | G |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 9.4 kg |
| Height (with stand) | 431 mm |
| Depth (with stand) | 245.5 mm |
| Width (with stand) | 809.5 mm |
| Packaging data | |
|---|---|
| Package weight | 12.4 kg |
| Package height | 480 mm |
| Package depth | 236 mm |
| Package width | 900 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB, USB Type-C |
| General | |
|---|---|
| Product family | ProLite |
