iiyama SPC5801BC-2 PC/workstation Intel® Core™ i5 i5-8400 8 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise Mini PC Black
- Mini PC Black
- Intel® Core™ i5 i5-8400
- 8 GB DDR4-SDRAM
- 256 GB SSD
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 5 (802.11ac)
- Windows 10 IoT Enterprise 64-bit

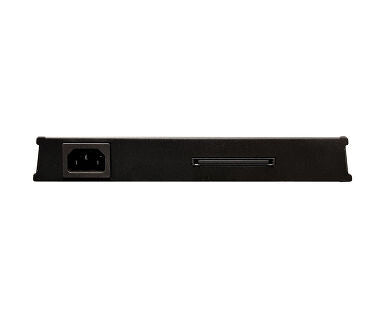

An Intel i5 slot PC with Windows 10 IoT Enterprise
This mini PC with Intel Core i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama slot PC and get started right away.
The module is only compatible with the iiyama TExx03MIS and TExx04MIS* Series; 55”: TE5503MIS-B1AG/ TE5503MIS-B2AG, 65”: TE6503MIS-B1AG / TE6504MIS-B1AG / TE6504MIS-B2AG , 75′: TE7503MIS-B1AG / TE7504MIS-B1AG / TE7504MIS-B2AG, 86”: TE8603MIS-B1AG / TE8604MIS-B1AG / TE8604MIS-B2AG, 98”: TE9803MIS-B1AG
*Excluding the 98′ ProLite TE9804MIS-B1AG
| Processor | |
|---|---|
| Bus type | DMI3 |
| Processor cores | 6 |
| Processor model | i5-8400 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| SSD form factor | M.2 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Product colour | Black |
| Chassis type | Mini PC |
| Performance | |
|---|---|
| Product type | Mini PC |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 IoT Enterprise |
| Processor special features | |
|---|---|
| Conflict-Free processor | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 95 W |
| Power supply input frequency | 50 – 60 Hz |
| Power supply input voltage | 100-240 V |
| Weight & dimensions | |
|---|---|
| Package width | 312 mm |
| Weight | 1.9 kg |
| Packaging content | |
|---|---|
| Display included | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84715000 |
