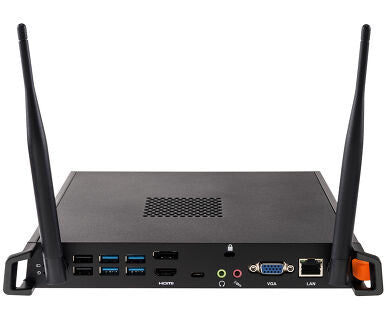

iiyama SPC5802BB PC/workstation Intel® Core™ i5 i5-8500 8 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Enterprise Rack-mounted chassis Black
- Black
- Intel® Core™ i5 i5-8500 3 GHz
- 8 GB DDR4-SDRAM
- 128 GB SSD
- Intel® UHD Graphics 630
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth 4.2
- Windows 10 IoT Enterprise
| Processor | |
|---|---|
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1×16, 1×8+2×4, 2×8 |
| PCI Express slots version | 3.0 |
| Tjunction | 100 °C |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 65 W |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Bus type | DMI3 |
| Processor cache | 9 MB |
| Processor socket | LGA 1151 (Socket H4) |
| Processor frequency | 3 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor threads | 6 |
| Processor cores | 6 |
| Processor model | i5-8500 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| SSD interface | M.2 |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 128 GB |
| Graphics | |
|---|---|
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E92 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | Rack-mounted chassis |
| Performance | |
|---|---|
| Motherboard chipset | Intel Q370 |
| Software | |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Processor special features | |
|---|---|
| Conflict-Free processor | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Thermal Monitoring Technologies | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | Yes |
| Intel® Secure Key | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® OS Guard | Yes |
| Idle States | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Intel Trusted Execution Technology | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Execute Disable Bit | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Processor ARK ID | 129939 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 95 W |
| Power consumption (standby) | 1.35 W |
| Power supply input frequency | 56/60 Hz |
| Power supply input voltage | 100 – 240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Package height | 91 mm |
| Package depth | 353 mm |
| Package width | 312 mm |
| Weight | 1.9 kg |
| Height | 32.2 mm |
| Depth | 246.1 mm |
| Width | 263.4 mm |
| Packaging content | |
|---|---|
| Display included | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84715000 |
