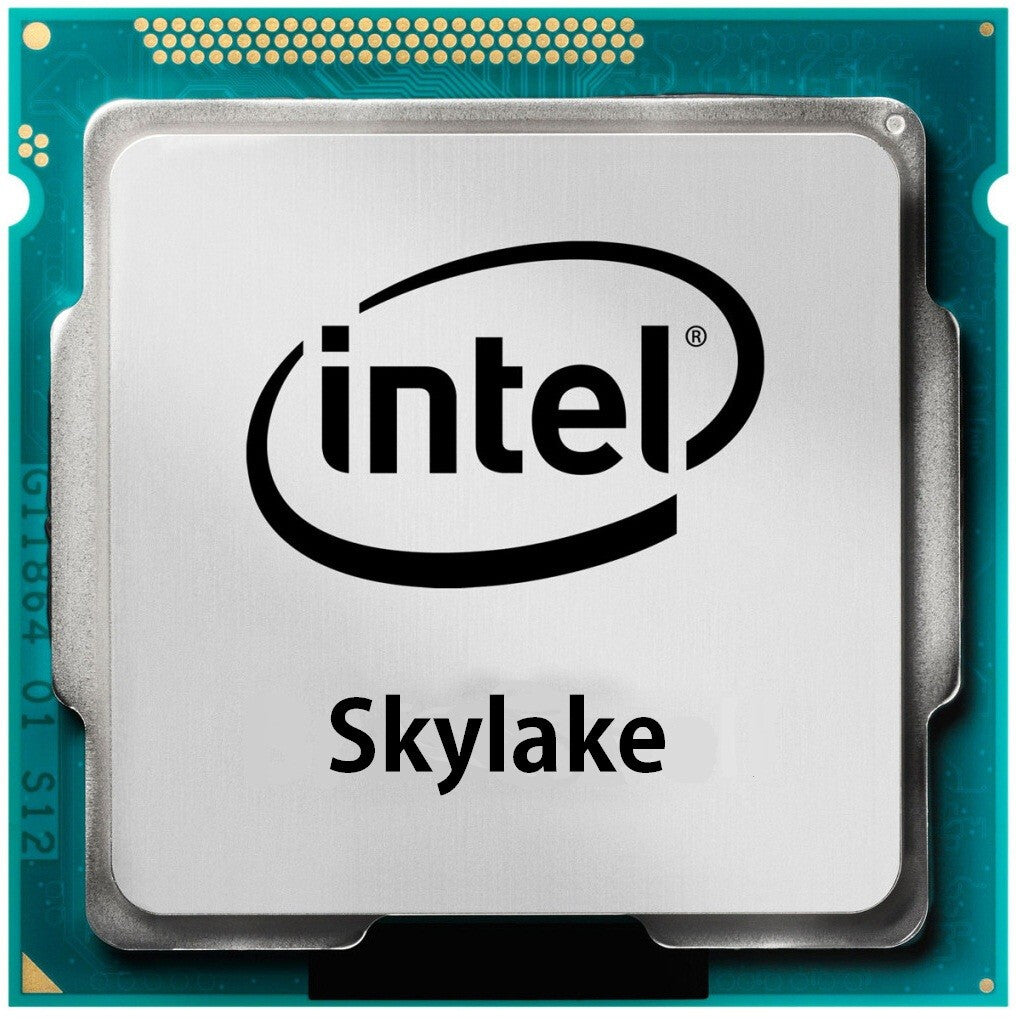

Intel Celeron G3920 processor 2.9 GHz 2 MB Smart Cache
- Intel® Celeron® G G3920 2.9 GHz
- 2 MB Smart Cache LGA 1151 (Socket H4)
- Processor cores: 2 14 nm 64-bit 51 W
- Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
- On-board graphics card Intel® HD Graphics 510
Surprising Performance. Eye-Catching Affordability.
Work, study, and play at the intersection of impressive performance
and premium value, with a capable device powered by the latest
Intel® Celeron® processors.
Enjoy a PC with the new Intel® Celeron® processor. Experience Intel level performance that lets you enjoy entertainment and get your work done. Get performance and value you can count on with an Intel® Celeron® processor.
Clear and Colorful Media
View, read, watch, stream, listen, and learn. The newest Intel® Celeron® processors support a wide range of multimedia capabilities to entertain and entice all throughout your day.
Connect and Communicate with Ease
All the features you need to support your favorite online activities. Switch effortlessly from browsing and shopping to chatting or surfing social media. Do more with the lightweight, low energy-consuming Intel® Celeron® processor.
More Efficient Multitasking
Create, edit, and manage important files on the go. Easily organize contact lists and messages. Experience improved features and functionality to help you be more productive at work.
Rich Graphics for Gaming Fun
Beat your previous high score, challenge your friends, and share your latest gaming triumphs. The Intel® Celeron® processor levels up the fun with improved graphics, smooth action, and healthy battery life to support enhanced casual gameplay.
| Processor | |
|---|---|
| Processor ARK ID | 90737 |
| Processor code | SR2HX |
| Processor codename | Skylake |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Bus type | DMI3 |
| Stepping | S0 |
| Compatible chipsets | Intel® B150, Intel® H110, Intel® H170, Intel Q150, Intel® Q170, Intel® Z170 |
| Thermal Design Power (TDP) | 51 W |
| Processor cache type | Smart Cache |
| Processor cache | 2 MB |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 2 |
| Processor series | Intel Celeron Processor G3000 series for Desktop |
| Component for | PC |
| Cooler included | No |
| Box | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cores | 2 |
| Processor base frequency | 2.9 GHz |
| Processor model | G3920 |
| Processor family | Intel® Celeron® G |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory voltage supported by processor | 1.35 V |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM, DDR3L-SDRAM |
| Maximum internal memory supported by processor | 64 GB |
| Graphics | |
|---|---|
| On-board graphics card ID | 0x1902 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 24 Hz |
| On-board graphics card maximum resolution (DisplayPort) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (eDP – Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2304 pixels |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card 4K support | Yes |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card model | Intel® HD Graphics 510 |
| On-board graphics card | Yes |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 1S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Graphics & IMC lithography | 14 nm |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | SSE4.1, SSE4.2 |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| Market segment | Desktop |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel Clear Video Technology | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | No |
| Intel® Optane™ Memory Ready | No |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Intel® Boot Guard | Yes |
| Intel TSX-NI version | 0.00 |
| Conflict-Free processor | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Insider™ | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Celeron |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Maximum resolution & refresh rate (VGA) | N/A |
| Maximum resolution (WiDi) | 1080p |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Maximum resolution & refresh rate (HDMI) | 4096×2304@24Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 4096×2304@60Hz |
| Processor brand name | Intel Celeron |
| Last change | 63903513 |
| Product family | Intel Celeron Processor |
| Launch date | Q4’15 |
| Status | Discontinued |
| Maximum resolution & refresh rate (DisplayPort) | 4096×2304@60Hz |
| Maximum memory | 64 GB |
| Bus speed | 8 GT/s |
| Processor ID | 0x1902 |
| Processor cache | 2048 KB |
| Supported memory types | DDR4-SDRAM, DDR3L-SDRAM |
| Product type | Processor |
| Maximum graphics card memory | 64 GB |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Weight & dimensions | |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
|---|---|
| Graphics output | eDP/DP/HDMI/DVI |
| Video decoding | Yes |
| Maximum internal memory | 64 GB |
| Compatibility | Intel Server System R1304SPOSHBNIntel Server System R1304SPOSHORIntel Server System R1208SPOSHORIntel Server Board S1200SPLIntel Server Board S1200SPSIntel Server Board S1200SPO |
