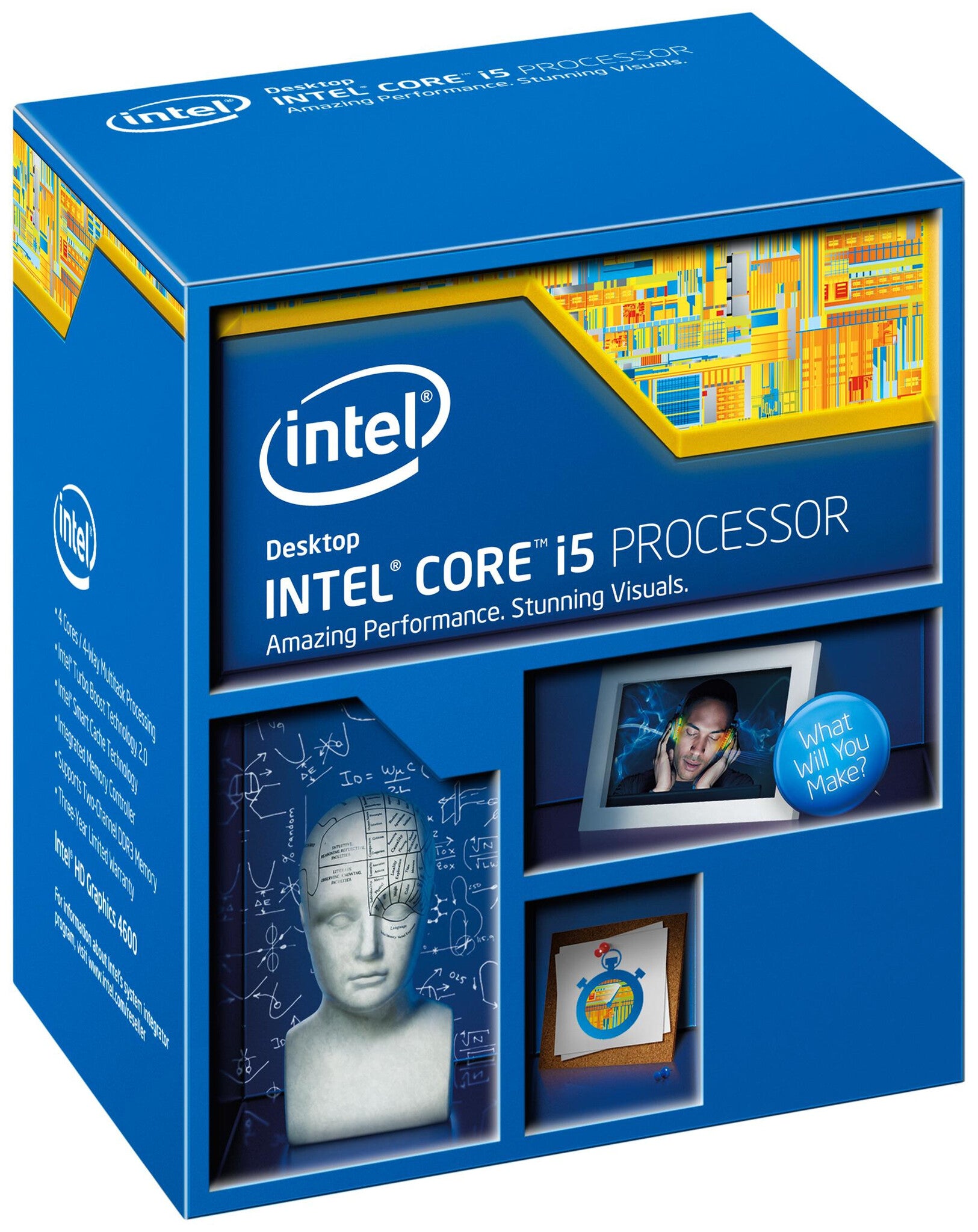

Intel Core i5-4690 processor 3.5 GHz 6 MB Smart Cache Box
- Intel® Core™ i5 i5-4690 3.5 GHz
- 6 MB Smart Cache LGA 1150 (Socket H3)
- Processor cores: 4 22 nm 64-bit 84 W
- Maximum internal memory supported by processor: 32 GB DDR3-SDRAM, DDR3L-SDRAM
- On-board graphics card Intel® HD Graphics 4600
- Box Cooler included
Amazing performance and stunning visuals with a boost. Raise the bar on your PC experience with rich visuals plus an automatic burst of speed when you need it. The 4th generation Intel® Core™ i5 processor delivers amazing performance, stunning visuals, and built-in security for deeper protection.
Discover the thrill of an automatic burst of speed when you need it with Intel® Turbo Boost Technology 2.0. Experience your movies, photos, and games smoothly and seamlessly with a built-in suite of visual enhancements—and enjoy them even more with longer battery life.
Get a boost in your performance that you can truly see and feel, along with extra peace of mind from enhanced security. Because the only thing more amazing than Intel® technology is what you’ll do with it.
| Processor | |
|---|---|
| Generation | 4th Generation |
| Processor ARK ID | 80810 |
| Processor code | SR1QH |
| Processor codename | Haswell |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Bus type | DMI |
| Stepping | C0 |
| Compatible chipsets | Intel® B85, Intel® H81, Intel® H87, Intel® Q85, Intel® Q87, Intel® Z87 |
| Thermal Design Power (TDP) | 84 W |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Processor boost frequency | 3.9 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 5 GT/s |
| Processor threads | 4 |
| Processor series | Intel Core i5-4600 Desktop series |
| Component for | PC |
| Cooler included | Yes |
| Box | Yes |
| Processor lithography | 22 nm |
| Processor socket | LGA 1150 (Socket H3) |
| Processor cores | 4 |
| Processor base frequency | 3.5 GHz |
| Processor model | i5-4690 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM |
| Maximum internal memory supported by processor | 32 GB |
| Graphics | |
|---|---|
| On-board graphics card ID | 0x412 |
| On-board graphics card refresh rate at maximum resolution (VGA) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 24 Hz |
| On-board graphics card maximum resolution (DisplayPort) | 3840 x 2160 pixels |
| On-board graphics card maximum resolution (VGA) | 1920 x 1200 pixels |
| On-board graphics card maximum resolution (eDP – Integrated Flat Panel) | 3840 x 2160 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2304 pixels |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card OpenGL version | 4.3 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP), DisplayPort, HDMI, VGA (D-Sub) |
| Maximum on-board graphics card memory | 2 GB |
| On-board graphics card model | Intel® HD Graphics 4600 |
| On-board graphics card | Yes |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 1S |
| Embedded options available | No |
| Graphics & IMC lithography | 22 nm |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2013D |
| Bandwidth | 5 MB/s |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| Market segment | Desktop |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel TSX-NI version | 0.00 |
| Conflict-Free processor | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology 2.0 frequency | 3.9 GHz |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Insider™ | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Smart Cache | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel FDI Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| General | |
|---|---|
| Product family | Core |
| Product series | i5 |
| Operational conditions | |
|---|---|
| Tcase | 72.72 °C |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Package weight | 373 g |
| Package height | 101 mm |
| Package depth | 116 mm |
| Package width | 70 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Graphics max dynamic frequency | 1.20 GHz |
| Maximum resolution & refresh rate (VGA) | 1920×1200@60Hz |
| Number of graphics cores | 20 |
| OpenGL support | Yes |
| Bus bandwidth | 5 |
| Bus type units | GT/s |
| Maximum resolution & refresh rate (HDMI) | 4096×2304@24Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 3840×2160@60Hz |
| Processor brand name | Intel Core i5Intel Core i5 Processor |
| Last change | 63903513 |
| Product family | 4th Generation Intel Core i5 Processors |
| Launch date | Q2’14 |
| Status | Discontinued |
| Born on date | Q2’14 |
| Product name | Intel Core i5-4690 (6M Cache, up to 3.90 GHz) |
| Maximum resolution & refresh rate (DisplayPort) | 3840×2160@60Hz |
| Maximum memory | 32 GB |
| Bus speed | 5 GT/s |
| Processor ID | 0x412 |
| Video compression formats | Yes |
| Processor cache | 6144 KB |
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Product type | Processor |
| Maximum graphics card memory | 2 GB |
| Weight & dimensions | |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
|---|---|
| Graphics output | eDP/DP/HDMI/VGA |
| Supported processor frequency (max) | 3.9 GHz |
| Video decoding | Yes |
| Maximum internal memory | 32 GB |
| L2 cache | 6144 KB |
| Cache memory | 6 MB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
