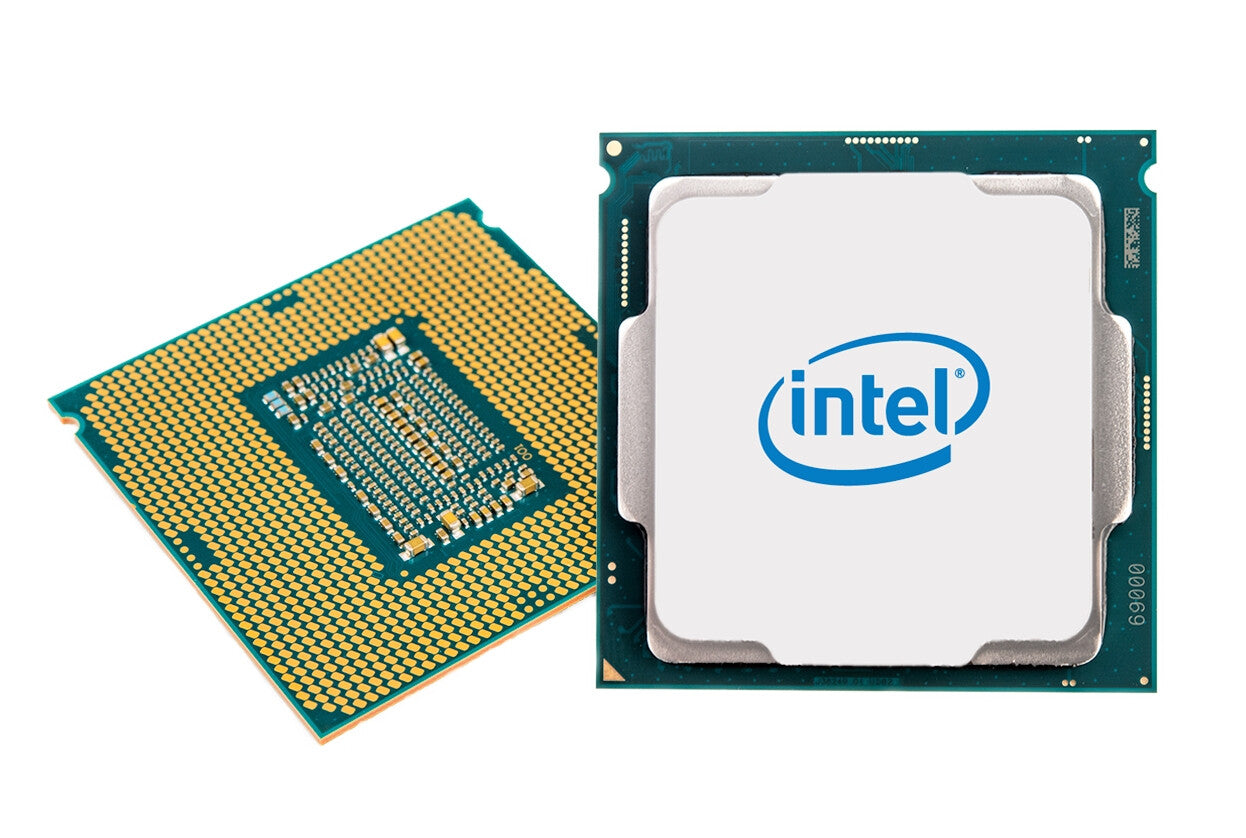

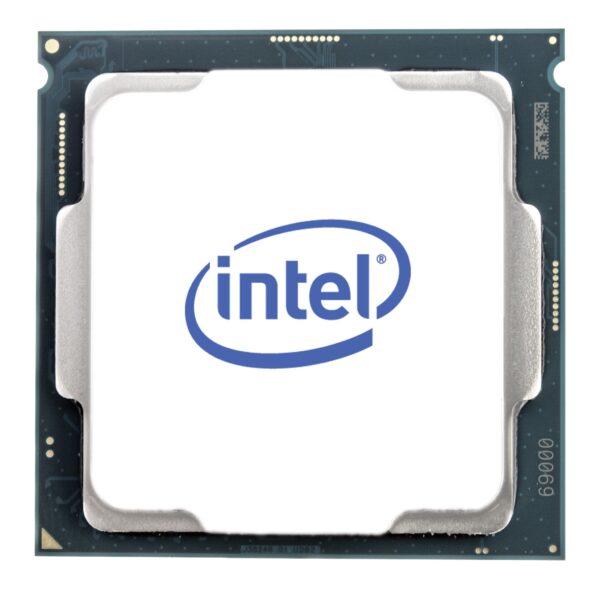

Intel Core i7-8700K processor 3.7 GHz 12 MB Smart Cache
- Intel® Core™ i7 i7-8700K 3.7 GHz
- 12 MB Smart Cache LGA 1151 (Socket H4)
- Processor cores: 6 14 nm 64-bit 95 W
- Maximum internal memory supported by processor: 64 GB DDR4-SDRAM
- On-board graphics card Intel® UHD Graphics 630
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Intel® Software Guard Extensions (Intel® SGX) provide applications the ability to create hardware enforced trusted execution protection for their applications’ sensitive routines and data. Run-time execution is protected from observation or tampering by any other software (including privileged software) in a system.
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
| Processor | |
|---|---|
| Generation | 8th Generation |
| Processor ARK ID | 126684 |
| Processor codename | Coffee Lake |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor boost frequency | 4.7 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 12 |
| Processor series | Intel Core i7-8700 Desktop Series |
| Component for | PC |
| Cooler included | No |
| Box | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cores | 6 |
| Processor base frequency | 3.7 GHz |
| Processor model | i7-8700K |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 64 GB |
| Graphics | |
|---|---|
| Number of execution units | 24 |
| On-board graphics card ID | 0x3E92 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 24 Hz |
| On-board graphics card maximum resolution (DisplayPort) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (eDP – Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2304 pixels |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card 4K support | Yes |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card | Yes |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 1S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015D |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| Market segment | Desktop |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel Clear Video Technology | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Boot Guard | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 4.7 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Device Protection Technology (Intel® DPT) with Boot Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Core |
| Product series | i7 |
| Operational conditions | |
|---|---|
| Tjunction | 100 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Maximum resolution & refresh rate (HDMI) | 4096×2304@24Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 4096×2304@60Hz |
| Processor brand name | 8th Gen Intel Core i78th Gen Intel Core i7 Processor |
| Last change | 63903513 |
| Product family | Intel Core Processors |
| Launch date | Q4’17 |
| Status | Discontinued |
| Maximum resolution & refresh rate (DisplayPort) | 4096×2304@60Hz |
| Maximum memory | 128 GB |
| Bus speed | 8 GT/s |
| Processor ID | 0x3E92 |
| Processor cache | 12288 KB |
| Supported memory types | DDR4-SDRAM |
| Product type | Processor |
| Maximum graphics card memory | 64 GB |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Weight & dimensions | |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
|---|---|
| Maximum internal memory | 128 GB |
