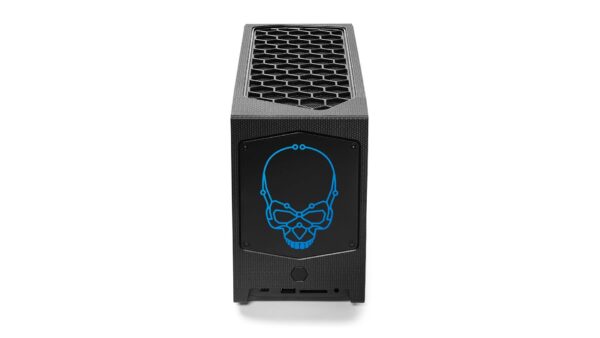

Intel NUC 12 Extreme Kit – NUC12DCMi9 8L sized PC Black i9-12900 Intel Z690
- 8L sized PC Black
- Built-in processor Intel i9-12900
- 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
- SSD M.2
- Intel UHD Graphics 770
- Ethernet LAN Wi-Fi
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration. Visit www.intel.com/OptaneMemory for configuration requirements.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel vPro® Platform Eligibility
The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
| Processor |
| CPU configuration (max) |
1 |
| Memory bandwidth supported by processor (max) |
51.2 GB/s |
| Thermal Design Power (TDP) |
65 W |
| L2 cache |
14 MB |
| Processor cache |
30 MB |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
24 |
| Processor cores |
16 |
| Processor model |
i9-12900 |
| Processor generation |
12th gen Intel® Core™ i9 |
| Processor family |
Intel® Core™ i9 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Memory |
| Non-ECC |
Yes |
| ECC |
No |
| Maximum internal memory |
64 GB |
| Memory channels |
Dual-channel |
| Supported memory types |
DDR4-SDRAM |
| Memory voltage |
1.2,1.35 V |
| Supported memory clock speeds |
3200 MHz |
| Memory bandwidth (max) |
51.2 GB/s |
| Removable memory card slot |
SDXC with UHS-II support |
| Number of memory slots |
2 |
| Number of DIMM slots |
2 |
| Memory slots type |
SO-DIMM |
| Storage |
| Compatible memory cards |
SDXC |
| Card reader integrated |
Yes |
| RAID levels |
0, 1 |
| Number of storage drives supported |
3 |
| Storage drive interface |
PCI Express, Serial ATA III |
| SSD form factor |
M.2 |
| Storage drive sizes supported |
M.2 |
| Supported storage drive types |
SSD |
| Graphics |
| Number of displays supported |
3 |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel UHD Graphics 770 |
| Graphics card family |
Intel |
| On-board graphics card |
No |
| Audio |
| Built-in speaker(s) |
No |
| Network |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| LAN controller |
Intel I225-LM |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Number of SATA III connectors |
2 |
| Thunderbolt 4 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| M.2 card slot (wireless) |
Intel® Wi-Fi 6E AX211 |
| USB ports quantity |
11 |
| M.2 card slot (storage) |
2 via PCH + 1 via CPU (NVMe) |
| USB version |
2.0/3.2 Gen 2 (3.1 Gen 2) |
| Mini DisplayPorts quantity |
1 |
| HDMI version |
2.0b |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
| Expansion slots |
| PCI Express x16 slots |
1 |
| PCI Express slots version |
5, 4.0 |
| Design |
| Status |
Launched |
| ARK ID |
216963 |
| Product type |
PC barebone |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
8L sized PC |
| Performance |
| Export Control Classification Number (ECCN) |
5A992C |
| Commodity Classification Automated Tracking System (CCATS) |
G157815L2 |
| Audio output channels |
7.1 channels |
| BIOS type |
EEPROM |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel Z690 |
| Processor special features |
| Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Optane™ Memory Ready |
Yes |
| Intel® Platform Trust Technology (Intel® PTT) |
Yes |
| Intel Rapid Storage Technology |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel 64 |
Yes |
| Idle States |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel® vPro™ Platform Eligibility |
No |
| General |
| Product family |
NUC |
| Software |
| Compatible operating systems |
Windows 10, 64-bit* |
| Windows operating systems supported |
Windows 11 x64, Windows 10 x64 |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
| Power |
| Power supply type |
Internal power supply unit |
| Operational conditions |
| Operating temperature (T-T) |
0 – 35 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Weight & dimensions |
| Height |
120 mm |
| Depth |
189 mm |
| Width |
357 mm |
| Packaging content |
| Power cord included |
No |
| Other features |
| Launch date |
Q1’22 |
| Number of SATA connectors |
2 |
| Additional headers |
2x USB2.0, FRONT_PANEL |
