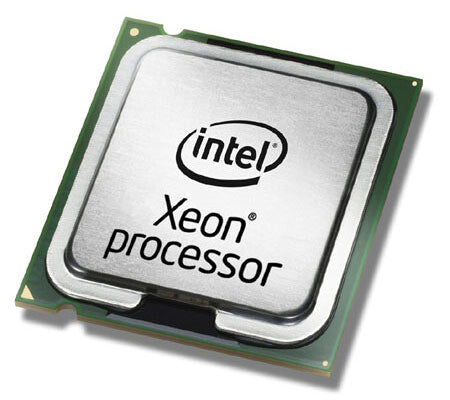

Intel Xeon E3-1220V6 processor 3 GHz 8 MB Smart Cache Box
- Intel® Xeon® E3 v6 E3-1220 v6 3 GHz
- 8 MB Smart Cache LGA 1151 (Socket H4)
- Processor cores: 4 14 nm 64-bit 72 W
- Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
- Box Cooler included
Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
| Processor | |
|---|---|
| Processor ARK ID | 97470 |
| Processor codename | Kaby Lake |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Bus type | DMI3 |
| VID Voltage Range | 0.55 – 1.52 V |
| Thermal Design Power (TDP) | 72 W |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Processor boost frequency | 3.5 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 4 |
| Component for | Server/workstation |
| Cooler included | Yes |
| Box | Yes |
| Processor lithography | 14 nm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cores | 4 |
| Processor base frequency | 3 GHz |
| Processor model | E3-1220 v6 |
| Processor family | Intel® Xeon® E3 v6 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM, DDR3L-SDRAM |
| Maximum internal memory supported by processor | 64 GB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card 4K support | No |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 1S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| CPU configuration (max) | 1 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel Clear Video Technology | No |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Boot Guard | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 3.5 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
| Technical details | |
|---|---|
| Servicing status | Baseline Servicing |
| Maximum resolution & refresh rate (VGA) | N/A |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Maximum resolution & refresh rate (HDMI) | N/A |
| Maximum resolution & refresh rate (Integrated Flat Panel) | N/A |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processors |
| Launch date | Q1’17 |
| Status | Launched |
| Maximum resolution & refresh rate (DisplayPort) | N/A |
| Maximum memory | 64 GB |
| Bus speed | 8 GT/s |
| Processor cache | 8192 KB |
| Supported memory types | DDR4-SDRAM, DDR3L-SDRAM |
| Product type | Processor |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Package height | 101 mm |
| Package depth | 116 mm |
| Package width | 70 mm |
| Weight & dimensions | |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
|---|---|
| Graphics output | N/A |
| Maximum internal memory | 64 GB |
