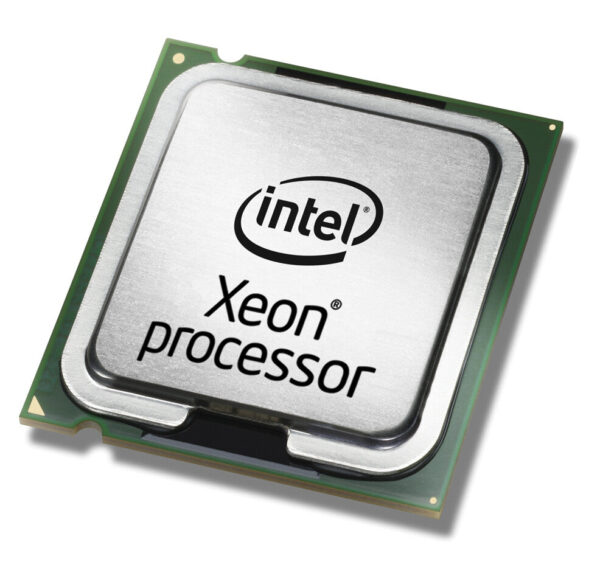

Intel Xeon E3-1265LV2 processor 2.5 GHz 8 MB Smart Cache
- Intel® Xeon® E3 V2 Family E3-1265LV2 2.5 GHz
- 8 MB Smart Cache LGA 1155 (Socket H2)
- Processor cores: 4 22 nm 64-bit 45 W
- Maximum internal memory supported by processor: 32 GB DDR3-SDRAM
- On-board graphics card Intel® HD Graphics 2500
Intel® Virtualization Technology (Intel® VT)
Increasing manageability, security, and flexibility in IT environments, virtualization technologies like hardware-assisted Intel® Virtualization Technology (Intel® VT) combined with software-based virtualization solutions provide maximum system utilization by consolidating multiple environments into a single server or PC. By abstracting the software away from the underlying hardware, a world of new usage models opens up that reduce costs, increase management efficiency, strengthen security, while making your computing infrastructure more resilient in the event of a disaster.
Intel® 64 Architecture
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling very high performance while also meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load.
Intel® Fast Memory Access (Intel® FMA)
Intel® Fast Memory Access is an updated Graphics Memory Controller Hub (GMCH) backbone architecture that improves system performance by optimizing the use of available memory bandwidth and reducing the latency of the memory accesses.
Intel® Flex Memory Technology
Facilitates easier upgrades by allowing different memory sizes to be populated and remain in dual-channel mode.
Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network. Help protect your customers’ business assets and reduce the need for costly virus-related repairs by building systems with built-in Intel Execute Disable Bit.
| Processor | |
|---|---|
| Processor ARK ID | 65728 |
| Processor codename | Ivy Bridge |
| Bus type | DMI |
| Thermal Design Power (TDP) | 45 W |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Processor boost frequency | 3.5 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 5 GT/s |
| Processor threads | 8 |
| Processor series | Intel Xeon E3-1200 v2 |
| Component for | Server/workstation |
| Cooler included | No |
| Box | No |
| Processor lithography | 22 nm |
| Processor socket | LGA 1155 (Socket H2) |
| Processor cores | 4 |
| Processor base frequency | 2.5 GHz |
| Processor model | E3-1265LV2 |
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum internal memory supported by processor | 32 GB |
| Graphics | |
|---|---|
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card model | Intel® HD Graphics 2500 |
| On-board graphics card | Yes |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX |
| PCI Express configurations | 1×16, 1×4, 2×8, 1×8, 3×4 |
| PCI Express slots version | 3.0 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor special features | |
|---|---|
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel TSX-NI | No |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel TSX-NI version | 0.00 |
| Conflict-Free processor | No |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology 2.0 frequency | 3.5 GHz |
| Intel® Insider™ | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Dual Display Capable Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Bus bandwidth | 5 |
| Bus type units | GT/s |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E3 v2 Family |
| Launch date | Q2’12 |
| Status | Discontinued |
| Maximum memory | 32.77 GB |
| Bus speed | 5 GT/s |
| Processor cache | 8192 KB |
| Supported memory types | DDR3-SDRAM |
| Product type | Processor |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Other features | |
|---|---|
| Maximum internal memory | 32.77 GB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
