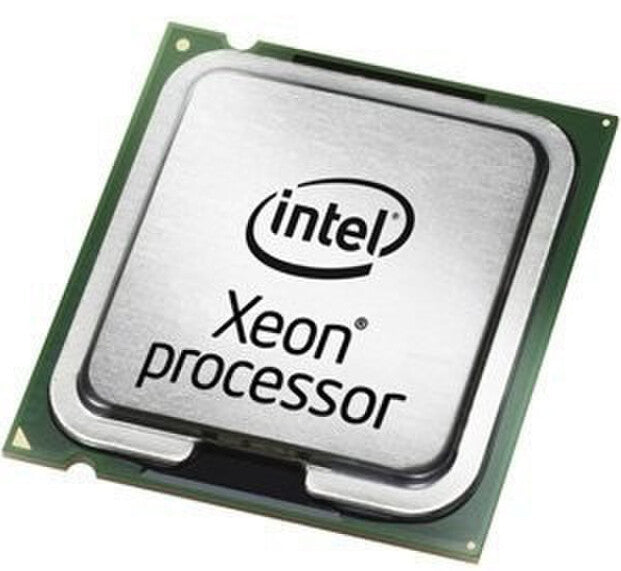

Intel Xeon E3-1275V6 processor 3.8 GHz 8 MB Smart Cache
- Intel® Xeon® E3 v6 E3-1275 v6 3.8 GHz
- 8 MB Smart Cache LGA 1151 (Socket H4)
- Processor cores: 4 14 nm 64-bit 73 W
- Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
- On-board graphics card Intel® HD Graphics P630
Powerful Delivery
Support greater HD and UHD video trans code performance with up to 18 AVC video trans codes per processor and up to 2 HEVC trans codes per processor.
Built for Professionals
Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications.
Reliability for Small and Medium Businesses
No matter what the size of your business, the value of your data is enormous. Keep it accessible and better protected at all times with an affordable Intel Xeon processor E3-1200 v6 product family-based server.
High Image Quality
Improve visual experiences with Intel® Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.
| Processor |
| Processor ARK ID |
97478 |
| Processor codename |
Kaby Lake |
| Memory bandwidth supported by processor (max) |
37.5 GB/s |
| Bus type |
DMI3 |
| Stepping |
B0 |
| VID Voltage Range |
0.55 – 1.52 V |
| Thermal Design Power (TDP) |
73 W |
| Processor cache type |
Smart Cache |
| Processor cache |
8 MB |
| Processor boost frequency |
4.2 GHz |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Processor threads |
8 |
| Processor series |
Intel Xeon E3-1200 v6 |
| Component for |
Server/workstation |
| Cooler included |
No |
| Box |
No |
| Processor lithography |
14 nm |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor cores |
4 |
| Processor base frequency |
3.8 GHz |
| Processor model |
E3-1275 v6 |
| Processor family |
Intel® Xeon® E3 v6 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory clock speeds supported by processor |
1866,2400 MHz |
| Memory types supported by processor |
DDR4-SDRAM, DDR3L-SDRAM |
| Maximum internal memory supported by processor |
64 GB |
| Graphics |
| On-board graphics card ID |
0x191D |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) |
60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) |
60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) |
24 Hz |
| On-board graphics card maximum resolution (DisplayPort) |
4096 x 2304 pixels |
| On-board graphics card maximum resolution (eDP – Integrated Flat Panel) |
4096 x 2304 pixels |
| On-board graphics card maximum resolution (HDMI) |
4096 x 2160 pixels |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.4 |
| On-board graphics card 4K support |
Yes |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card dynamic frequency (max) |
1150 MHz |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card outputs supported |
Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI |
| Maximum on-board graphics card memory |
64 GB |
| On-board graphics card model |
Intel® HD Graphics P630 |
| On-board graphics card |
Yes |
| Features |
| Commodity Classification Automated Tracking System (CCATS) |
G077159 |
| Export Control Classification Number (ECCN) |
5A992C |
| Scalability |
1S |
| Embedded options available |
Yes |
| PCI Express CEM revision |
3.0 |
| CPU configuration (max) |
1 |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| PCI Express configurations |
1×16, 2×8, 1×8+2×4 |
| PCI Express slots version |
3.0 |
| Maximum number of PCI Express lanes |
16 |
| Market segment |
Server |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor special features |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® Secure Key |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel TSX-NI |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Optane™ Memory Ready |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel® vPro™ Platform Eligibility |
Yes |
| Intel® Boot Guard |
Yes |
| Intel TSX-NI version |
1.00 |
| Conflict-Free processor |
Yes |
| Intel® Transactional Synchronization Extensions |
Yes |
| Intel® Turbo Boost Technology 2.0 frequency |
4.2 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Memory Protection Extensions (Intel® MPX) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| General |
| Product family |
Xeon |
| Logistics data |
| Harmonized System (HS) code |
85423119 |
| Technical details |
| Servicing status |
Baseline Servicing |
| Maximum resolution & refresh rate (VGA) |
N/A |
| Bus bandwidth |
8 |
| Bus type units |
GT/s |
| Maximum resolution & refresh rate (HDMI) |
4096×2160@24Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) |
4096×2304@60Hz |
| Processor brand name |
Intel Xeon |
| Last change |
63903513 |
| Product family |
Intel Xeon Processor E3 v6 Family |
| Launch date |
Q1’17 |
| Status |
Launched |
| Maximum resolution & refresh rate (DisplayPort) |
4096×2304@60Hz |
| Maximum memory |
64 GB |
| Bus speed |
8 GT/s |
| Processor ID |
0x591D |
| Processor cache |
8192 KB |
| Supported memory types |
DDR4-SDRAM, DDR3L-SDRAM |
| Product type |
Processor |
| Maximum graphics card memory |
64 GB |
| Packaging data |
| Package type |
Retail box |
| Weight & dimensions |
| Processor package size |
37.5 x 37.5 mm |
| Other features |
| Graphics output |
eDP/DP/HDMI/DVI |
| Video decoding |
Yes |
| Maximum internal memory |
64 GB |
