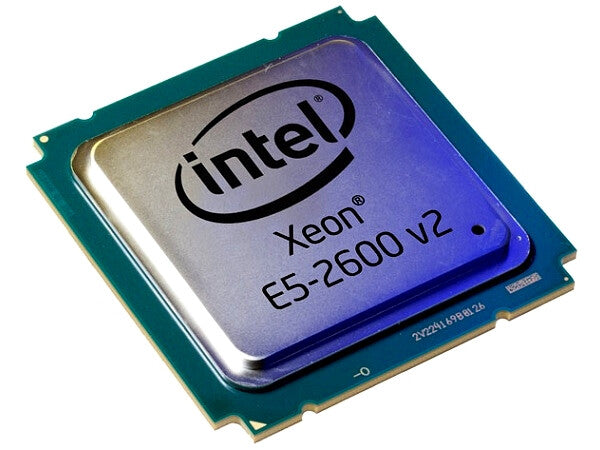

Intel Xeon E5-2620V2 processor 2.1 GHz 15 MB Smart Cache
- Intel® Xeon® E5 Family E5-2620V2 2.1 GHz
- 15 MB Smart Cache LGA 2011 (Socket R)
- Processor cores: 6 22 nm 64-bit 80 W
- Maximum internal memory supported by processor: 768 GB DDR3-SDRAM
Now with greater performance, efficiency, and security to fortify your cloud solutions.
The explosive growth of unstructured data puts new demands on network and storage infrastructure and challenges your ability to deliver services such as cloud computing. IT needs to respond rapidly to new and changing business demands, scale quickly and appropriately to fluctuating workloads, accommodate business expansions, and protect your data from cybercriminals—all while keeping costs down.
Invest in an agile foundation.
The new Intel® Xeon® processor E5-2600 and E5-1600 v2 product families are at the heart of an agile, efficient data center that meets your diverse needs. Now you can deploy a more secure private cloud, quickly crunch through big data, and get the most out of your data center with greater energy efficiency.
| Processor | |
|---|---|
| Processor ARK ID | 75789 |
| Processor codename | Ivy Bridge EP |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Number of QPI links | 2 |
| Bus type | QPI |
| VID Voltage Range | 0.65 – 1.3 V |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| Processor cache | 15 MB |
| Processor boost frequency | 2.6 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 7.2 GT/s |
| Processor threads | 12 |
| Processor series | Intel Xeon E5-2600 v2 |
| Component for | Server/workstation |
| Cooler included | No |
| Box | No |
| Processor lithography | 22 nm |
| Processor socket | LGA 2011 (Socket R) |
| Processor cores | 6 |
| Processor base frequency | 2.1 GHz |
| Processor model | E5-2620V2 |
| Processor family | Intel® Xeon® E5 Family |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum internal memory supported by processor | 768 GB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 2S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| CPU configuration (max) | 2 |
| Supported instruction sets | AVX |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel TSX-NI version | 0.00 |
| Conflict-Free processor | No |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology 2.0 frequency | 2.6 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Operational conditions | |
|---|---|
| Tcase | 71 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Bus bandwidth | 7.2 |
| Bus type units | GT/s |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 v2 Family |
| Launch date | Q3’13 |
| Status | Launched |
| Maximum memory | 768 GB |
| Bus speed | 7.2 GT/s |
| Processor cache | 15360 KB |
| Supported memory types | DDR3-SDRAM |
| Product type | Processor |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Package weight | 130 g |
| Package height | 117 mm |
| Package depth | 140 mm |
| Package width | 44 mm |
| Weight & dimensions | |
|---|---|
| Processor package size | 52.5mm x 45mm |
| Other features | |
|---|---|
| Maximum internal memory | 768 GB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
