Jonsbo HX7280 Processor Fan 14 cm Black
- Processor Fan 14 cm 1800 RPM
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), Socket AM4, Socket AM5
- 38 dB 90.2 cfm 2.74 mmH2O Fluid Dynamic Bearing (FDB)
- 140 x 140 x 25 mm
- Black

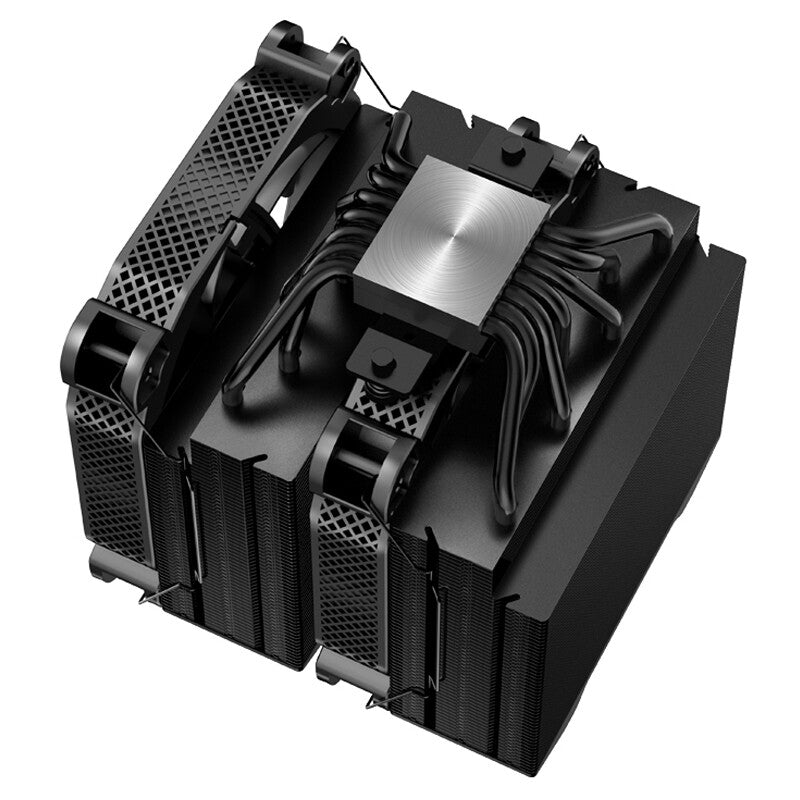

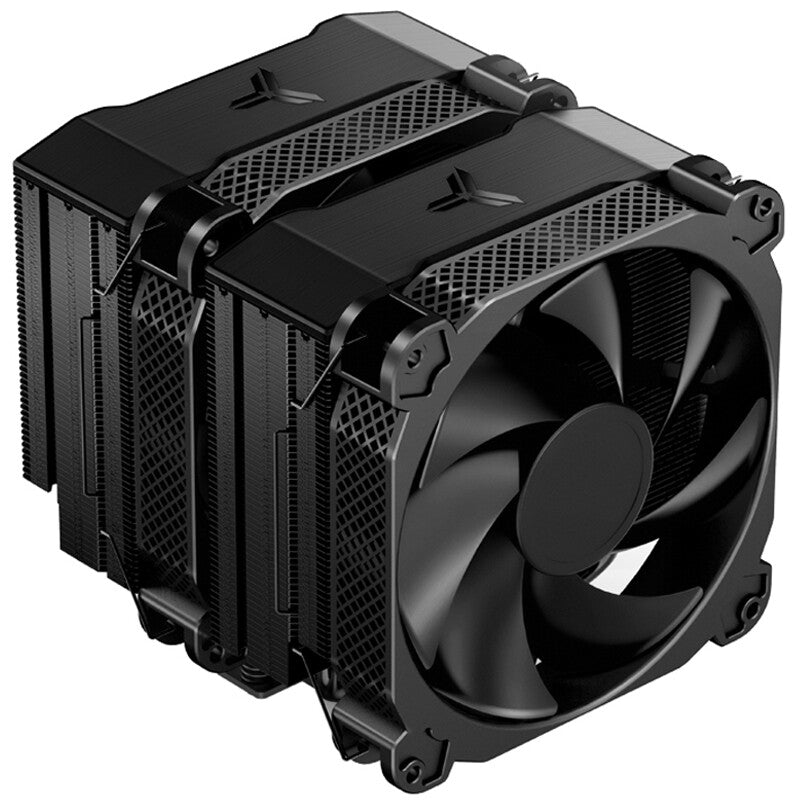

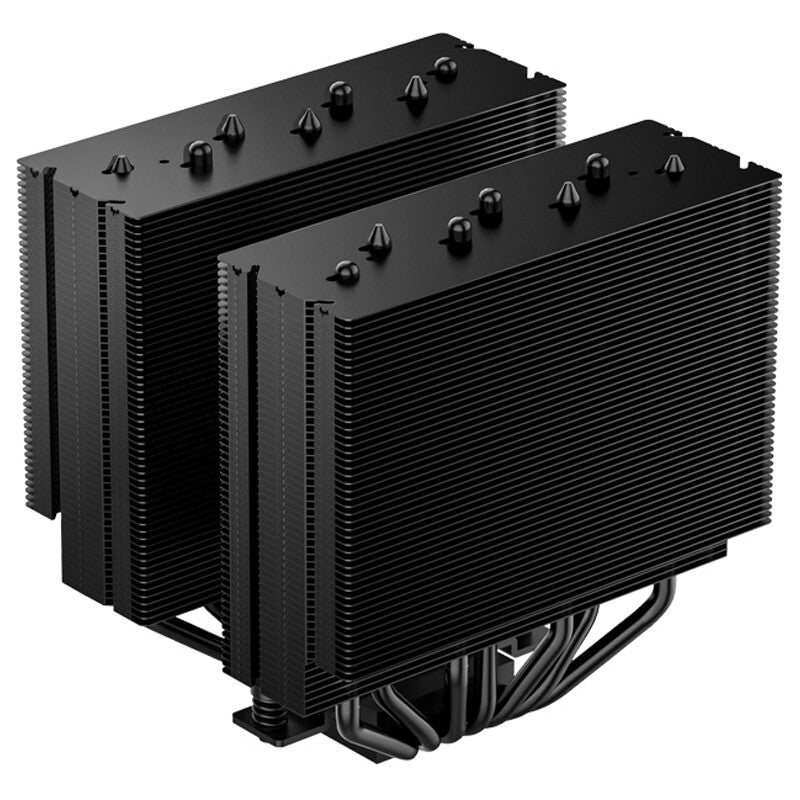

Jonsbo HX7280 Twin Tower Seven Heat Pipes CPU Cooler
| Performance |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Fan 2 maximum air pressure |
2.68 mmH2O |
| Fan 2 maximum airflow |
83.04 cfm |
| Fan 2 noise level (high speed) |
37.6 dB |
| Fan 2 noise level (low speed) |
28 dB |
| Fan 2 rotational speed (max) |
1800 RPM |
| Fan 2 rotational speed (min) |
700 RPM |
| Fan diameter 2 |
12 cm |
| Maximum air pressure |
2.74 mmH2O |
| Minimum air pressure |
0.46 mmH2O |
| Maximum airflow |
90.2 cfm |
| Minimum airflow (imperial) |
34.57 cfm |
| Noise level (high speed) |
38 dB |
| Noise level (low speed) |
28 dB |
| Rotational speed (max) |
1800 RPM |
| Rotational speed (min) |
700 RPM |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), Socket AM4, Socket AM5 |
| Fan diameter |
14 cm |
| Type |
Fan |
| Suitable location |
Processor |
| Design |
| Fan connector |
4-pin |
| Number of heat pipes |
7 |
| Number of fans |
3 fan(s) |
| Product colour |
Black |
| Power |
| Thermal Design Power (TDP) |
280 W |
| Voltage |
12 DC |
| Weight & dimensions |
| Heat pipes diameter |
6 mm |
| Fan 2 dimensions (W x D x H) |
120 x 120 x 25 mm |
| Fan dimensions (W x D x H) |
140 x 140 x 25 mm |
| Weight |
1.28 kg |
| Height |
160 mm |
| Depth |
150 mm |
| Width |
140 mm |
